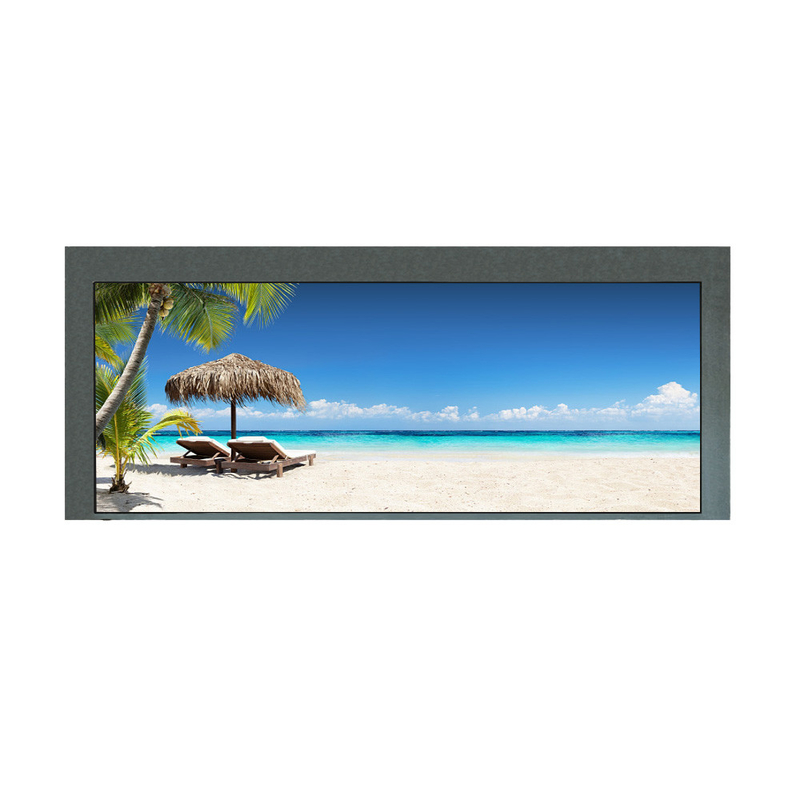

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

Product Details

Place of Origin: china

Brand Name: Mitsubishi

Certification: RoHS

Model Number: AA078AA01-ten

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 32.5-34 PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Payment Terms: T/T

Supply Ability: 1k/m

Get Best Price
Contact Now
Specifications
Highlight:

7.8 Inch LCD Display Screen

,

LVDS Interface LCD Display Screen

Display Size:
7.8inch
Display Area:
184.8(H)*69.3(V)mm
Number Of Dots:
800*RGB*300
Pixel Pitch:
0.231(H)*0.231(V)mm
Color Pixel Arrangement:
RGB Vertical Stripe
Display Mode:
Normally Black
Number Of Color:
262K(6bit/color),16.7M(8bit/color)
Viewing Angle:
-88~88º(H),-88~88º(V)
Display Size:
7.8inch
Display Area:
184.8(H)*69.3(V)mm
Number Of Dots:
800*RGB*300
Pixel Pitch:
0.231(H)*0.231(V)mm
Color Pixel Arrangement:
RGB Vertical Stripe
Display Mode:
Normally Black
Number Of Color:
262K(6bit/color),16.7M(8bit/color)
Viewing Angle:
-88~88º(H),-88~88º(V)
Description
7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface



7.8 inch long horizontal screen industrial control LCD screen display screen 800 * 300 LVDS interface 500 brightness



Product Overview



1.1 Description

    The AA078AA01 is 7.8" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel,driver ICs,control circuit,LED driver and backlight unit.


Product Size



7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 0

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 1

General specifications



No. Item Specification Unit
1
LCD Size
7.8 inch
2
Panel Type
IPS
-
3
Resolution
800x3 (RGB) x 300
pixel
4
Display Mode
Normally black
-
5
Display Number of Colors
262K(6bit/color),16.7M(8bit/color)
-
6
Viewing Direction
-88~88º(H),-88~88º(V)
-
7
Contrast Ratio
1000:1 -
8
Luminance
500
cd/m2
9
Module Size
207(H ) x 86(V) x10(D)
mm
10
Active Area
184.8(H) x 69.3(V)
mm
11
Pixel Pitch
0.231(H ) x 0.231(V)
mm
12
Surface Treatment
Anti-glare and hard-coating 3H
-
13
Module Mass
200
g
14
Driver IC RAM Size
240x24x320
bit
15
Backlight Unit
LED,edge-light
-
16
Interface
LVDS(6 bit/8bit)
-
17
Operating Temperature
-30~80
18
Storage Temperature
-30~80



Product Details

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 2

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 3

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 4

Our strengths



7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 5

Our factory



7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface 6

FAQ



Q1.What is your product range?



A1We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.



Q2.Can you custom the LCD or touch screen for me?



A2Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.



Q3.Which applications your products are mainly used for?



A3Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.



Q4.What's the delivery time?



A4>For samples order, 1-2weeks;

>For mass ordres,4-6weeks.



Q5.Do you provide free samples?



A5For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
