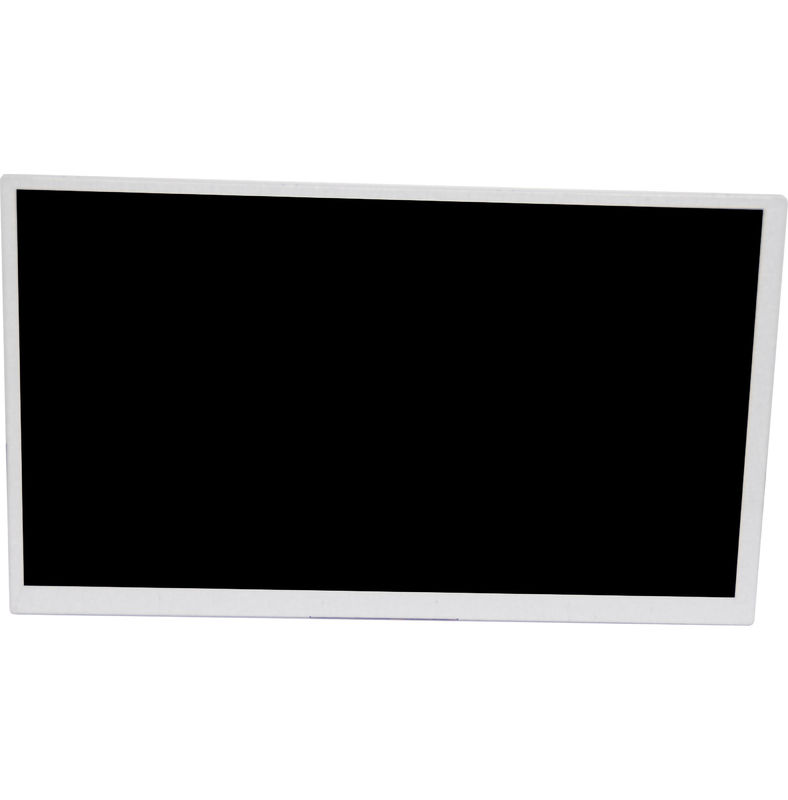

32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen

32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen

  • 32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
  • 32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
  • 32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
  • 32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
  • 32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen
Product Details:
Place of Origin: china
Brand Name: BOE
Certification: RoHS
Model Number: DV320FHM-NN0
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 55-63/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Size: 32 Inch Resolution: 1920(H)X1080(V)
Interface: LVDS Interface With 2 Pixel / Clock Connect Type: CI0102S0000-A,PITCH=2MM
Color Depth: 16.7M(8bits-true) Technology Type: A-Si
Pixel Pitch (um): 121.25X(RGB)X363.75(V) Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: Transmission Mode, Normally Black Power Consu(Wat))mption: 39W
High Light:

LVDS Interface TFT LCD Modules


LVDS Interface 32 Inch LCD Display


39W TFT LCD Modules

32 Inch LVDS Interface TFT LCD Modules 2K Resolution Panel Screen


Product Overview


32 inch display LCd panel screen 1920*1080 TFT lcd led tv spare parts 2k resolution lcd modules


    Dv320fhm-nn0 is a 32 inch LCD module product using a-Si TFT-LCD technology. It has the advantages of wide color gamut, wide viewing angle and wide screen. Dv320fhm-nn0 is suitable for TV, digital signs, medical display equipment, game achines, computer monitors, industrial equipment, etc. In terms of backlight, dv320fhm-nn0 adopts a side entry light source with WLED light emitting, including LED driver. Is a cost-effective 32 inch industrial control screen.


1.2. Features

1.0.5t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant




    This product is used in in TV, monitoring, building advertising machine, ordering system, industrial equipment, medical equipment, smart home and other industries etc...


General Specifications

NO. Item Specification Unit Remark
1 LCD Size 32 inch -
2 Panel Type IPS - -
3 Resolution 1920x (RGB) x 1080 pixel -
4 Display Mode Normally Black - -
5 Display Number of Colors 16.7M - Note
6 Viewing Direction FREE - -
7 Contrast Ratio 1200(TYP) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 716.2(H) ×415.05(V) ×8.45/25.23(TYP/MAX) mm Note
10 Active Area 698.4(H) ×392.85(V) mm -
11 Pixel Pitch 0.12125(H) x 0.36375(V) mm -
12 Weight - g -
13 Driver IC - - -
14 CTP Driver IC - - -
15 Driver IC RAM Size RAMLess bit -
16 R-TP Interface - -
17 Light Source 9serial 4paralel LED structure - -
18 Interface LVDS(2 CH,8BIT) - -
19 Operating Temperature 0~50 ºC -
20 Storage Temperature -20~60 ºC -



Outline Dimension (unit: mm)


32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen 0

Related Products

Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
4.63 YT463H015 480*854 63.4 113.28 2.10 W0.4/P0.8 24 BIT RGB 41 NT35512
5 YT050A001 480*272 120.4 71.4 2.65 P0.6/W0.3 RGB 51 NT35510
5 YT050H002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 HX8264-D03&HX8678-B00
5 YT050C002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 OTA7001A_C &OTA9960A
5 YT050H003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6480H2
5 YT050C003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6482C
5 YT055C005 480*800 70.34 128.11 1.22 B TO B MIPI 40 ILI7807D
5 YT055H005-V1 480*800 70.34 128.11 1.22 B TO B MIPI 30 R63350
7 YT070C006 800*480 164.9 100 2.8 W0.3/P0.5 RGB 50PIN ST5091-G3-1 +ST5623-G3-1
7 YT070B006 800*480 164.9 100 2.8 W0.3/P0.5 RGB 50PIN ILI5960D+ILI6128B
7 YT070B006-V1 800*480 164.9 100 2.8 W0.3/P0.5 RGB 50PIN HX8264-D07+HX8664-B00
7 YT070B007 800*480 164.3 100 3.3 W0.3/P0.5 RGB 50PIN ILI5960D+ILI6128B
7 YT070B007-V1 800*480 164.3 100 3.3 W0.3/P0.5 RGB 50PIN HX8264-D07+HX8664-B00



Exclusive features

1. According to customer requirements custom structure, touch screen, FPC, configuration.
2. Accept small batch production, a full set of technical support services.

Packaging and Transportation

32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen 1

Contact Us

32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen 2
32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen 3
32 Inch LVDS interface TFT LCD Modules 2K Resolution Panel Screen 4



1. How to understand Stock for Sale.

Answer:According to the company regulation, each standard product must be kept the stock of 1000pcs.

When the stock is less than 1000 pcs, we will put it into production at once instead of waiting for the orders. When the stock are more than 5000 pcs, the production must be stopped.

Appropriate stock is a very good support for the customer’s sampling and trial production demand.

The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality,
what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.

The appropriate stock is also a good way to reduce the cost. In busy seasons, we can produce the orders, while in free seasons, we can produce the stock. By this way, the labor source is maximumly used. At the same time, in free season, the materials can be bought at lower price.

2. How does Adia do for Never End of Supply?

Answer:EOL(End of Life) is largely because of end of life of the raw materials

When the EOL of the raw materials such as drivers and LCD panels happens, we can place a very large order with the supplier which may cover the consumption of one or two year. This large order is enough for the supplier to restart the production.

On the other hand, we can develop the replacement product which is mechanically and functionally the same as the previous one. For
the customer, only software will be changed a little while the hardware will remain the same.


Adia has built comprehensive relationships with the supplier samsun as LG, Hannstar and BOE and we can get the EOL products through our special channel to guarantee the continuous supply.

In LCD industry, due to the quick update of the technology, never end of supply is hard, but so far, Adia has never disappointed any customer.

Once the customer chooses us, we will offer the unchanged service till the end. Long-time relationship and mutual trust are our target and we hate well beginning but bad ending.

3. How to understand No MOQ?

Answer:The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.

In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.

However, if the quantity is small, the price will be higher.

4. How to understand in Full Range.
Answer:In full range means that our products are in great variety. We have what other manufacturers have, and we have what they don’t have. The customer is easy to find what they want in our product group. Like Walmart instead of Seven Eleven, all kinds of the products are placed before us and it is easy to attract the customers to come, so we like going shopping in Walmart, but we don’t like to go to Seven Eleven.

5. How does Adia guarantee the quality?

Answer: Adia has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.

Adia has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.

The Adia is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and aftersales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. Adia is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.

6. Why are Adia’s products higher in price?

Answer: The LCD quality has three standards: 1.consuming standards.2.Industrial standards 3.Automotive standards. Automotive standards are the highest grade which require the strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject. To follow automotive standards, we have to select the best raw materials, and bring in the most expensive equipment and very tough management, so our cost is higher.

In fact, our higher price is only manifested in samples. If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.

7. How long can we expect the samples?

Answer: Immediately in most of the cases.







1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.




2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.




If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.




Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.




4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.


4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
