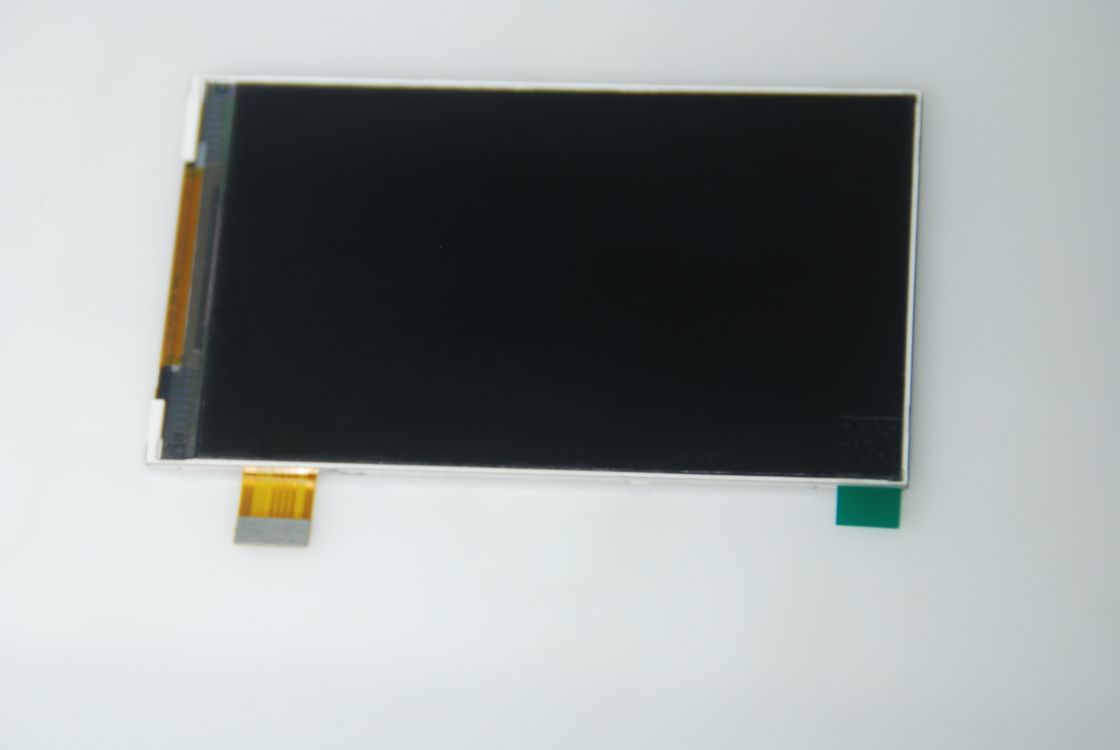

RoHS 480X800 3.97 Inch Mipi Dsi Touch Screen With White 8 LEDs
The YT039B009 is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal white. This TFT-LCD Cell has a 3.97 inch diagonally measured active area with WVGA resolutions (480 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M colors.
Product features
(1) Display type: 3.97 inch TFT; transmission normally black
(2) Display color: 262K / 16.7M
(3) Driver IC: JDI9161
(4) Backlight mode: white LED
Application
This product is used in mobile phones, handheld devices, POSS machines, police enforcement instruments, military handheld, automotive electronics, industrial equipment, medical equipment, smart home and other industries
General Specifications
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 3.97 inch diagonal | inch | - |
| 2 | Panel Type | IPS | - | - |
| 3 | Resolution | 480x (RGB) x 800 | pixel | - |
| 4 | Display Mode | Normally black,Transmissive | - | - |
| 5 | Display Number of Colors | 16.7M | - | Note |
| 6 | Viewing Direction | ALL View | - | - |
| 7 | Contrast Ratio | 900(min) | - | - |
| 8 | Luminance | 300(TYP) | cd/m2 | Note |
| 9 | Module Size | 57.14(W) ×96.85( L) ×2.15(T) | mm | Note |
| 10 | Active Area | 51.84( W) × 86.40(L) | mm | - |
| 11 | Pixel Pitch | 0.36(W ) x 0.108(L) | mm | - |
| 12 | Weight | TBD | g | - |
| 13 | Driver IC | JDI9161 | - | - |
| 14 | Driver IC RAM Size | RAMLess | bit | - |
| 15 | Light Source | 8 LEDs White | - | - |
| 16 | Interface | MIPI | - | - |
| 17 | Operating Temperature | -20~70 | ºC | - |
| 18 | Storage Temperature | -30~80 | ºC | - |
Outline Dimension (unit: mm)
Related Products
| TFT-LCM(MM) | |||||||||
| Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
| 3.97 | YT040H032 | 480*800 | 56.34 | 95.7 | 1.9 | P0.3 | MIPI | 23 | HX8369-A01 |
| 3.97 | YT040H048 | 480*800 | 56.34 | 95.7 | 1.9 | MIPI | 25 | HX8369-A01 | |
| 3.97 | YT040H049 | 480*800 | 56.34 | 95.7 | 1.9 | MIPI | 24 | HX8369-A01 | |
| 3.97 | YT040H045-V1 | 480*800 | 56.34 | 95.7 | 1.9 | MIPI | 25 | NT35510 | |
| 3.97 | YT040H045-V2 | 480*800 | 56.34 | 95.7 | 1.9 | MIPI | 25 | NT35510 | |
| 3.97 | YT040H048-V1 | 480*800 | 56.34 | 95.7 | 1.9 | MIPI | 25 | NT35510 | |
| 3.97 | YT040M046 | 480*800 | 57.14 | 96.85 | 2.15 | MIPI | 24 | NT35510 | |
| 3.97 | YT040M050 | 480*800 | 57.14 | 96.85 | 2.15 | 51 | NT35510 | ||
| 3.97 | YT040M051 | 480*800 | 57.14 | 96.85 | 2.15 | 16 | 39 | NT35510 | |
| 3.97 | YT040M055 | 480*800 | 57.14 | 96.85 | 2.15 | P0.5 | MIPI | 24 | NT35510 |
| 3.97 | YT040L016 | 480*800 | 58.18 | 99.15 | 2 | P0.3 | RGB+SPI | 51 | HX8369 |
| 3.97 | YT040L018 | 480*800 | 58.18 | 99.15 | 2 | P0.3 | 24 | 51 | HX8369 |
| 3.97 | YT040L023 | 480*800 | 58.18 | 99.15 | 2 | P0.3 | 16BIT | 51 | HX8369 |
| 3.97 | YT040L032 | 480*800 | 56.14 | 95.5 | 1.9 | P0.3 | MIPI | 23 | HX8369-A01 |
Exclusive features:
1. According to customer requirements custom structure, touch screen, FPC, configuration.
2. Accept small batch production, a full set of technical support services.
Why Choose us:
1.Our company established in 2011, and have a long-term cooperation with many well-known company
2.We have a professional r&d team and technical support
3.We have a large number of spot inventory and we can ship delivery asap after payment
4.We are direct agent of these brands,ordering process simple and delivery time short
5.All screen ship from our company has long warranty and we have enough technical support can provide
after-sales service
PRECAUTIONS
1.HANDLING
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.STORAGE
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
3.SAFETY
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
