Product Details
Place of Origin: china
Brand Name: Adia
Certification: RoHS
Model Number: YT0397B007-T2_V01
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 14-16/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Payment Terms: T/T
Supply Ability: 1k/m
LCD Screen Size:: |
3.97 Inch |
Panel Type: |
IPS Full View High-definition LCD Screen |
Type Of Light Source: |
LED Light Emitting Diode |
Display Mode: |
Standard Black, Transmission Type |
Resolution Ratio: |
480（RGB）*800 |
Display Color: |
16.7M Color |
Polarizing Film Thickness: |
0.18（μm） |
Polarization Angle: |
45（°） |
LCD Driver IC: |
GC9503 |
CTP Driven IC: |
GT911 |
LCD Screen Size:: |
3.97 Inch |
Panel Type: |
IPS Full View High-definition LCD Screen |
Type Of Light Source: |
LED Light Emitting Diode |
Display Mode: |
Standard Black, Transmission Type |
Resolution Ratio: |
480（RGB）*800 |
Display Color: |
16.7M Color |
Polarizing Film Thickness: |
0.18（μm） |
Polarization Angle: |
45（°） |
LCD Driver IC: |
GC9503 |
CTP Driven IC: |
GT911 |

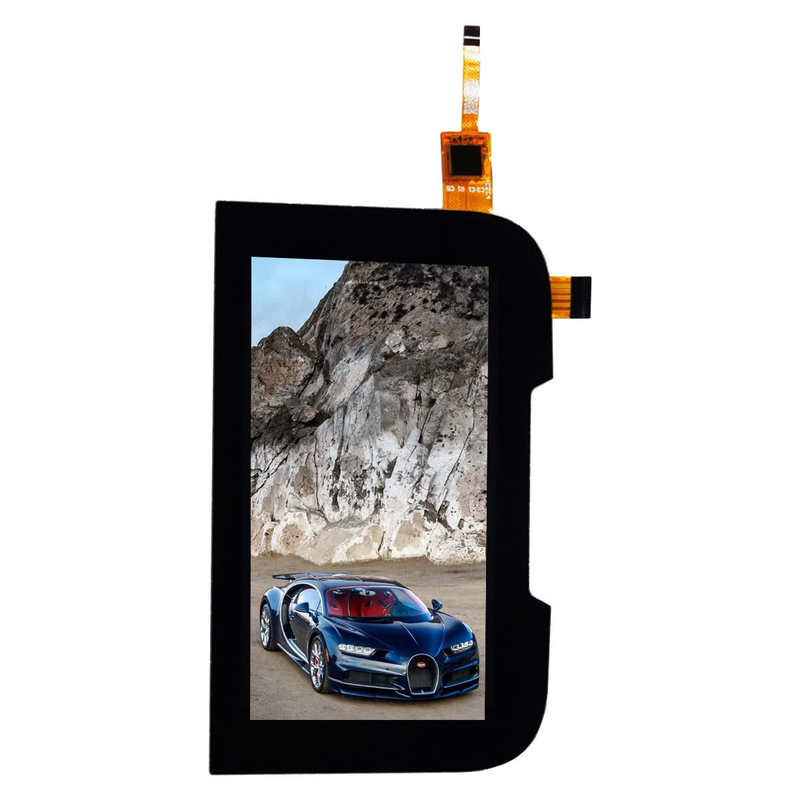

3.97 Inch IPS TFT LCD Displays 480 * 800 MIPI Interface Screen
3.97 inch IPS industrial control LCD display screen 480 * 800 MIPI interface with capacitive touch CTP horizontal screen
Product Overview
3.97 inch IPS industrial control LCD display screen 480 * 800 MIPI interface with capacitive touch CTP horizontal screen display
General Specifications
|
No.
|
Item | Specification | Unit | Remark |
| 1 |
LCD Size
|
3.97 | inch | - |
| 2 |
Panel Type
|
IPS | - | - |
| 3 |
Resolution
|
480 (RGB) x 800
|
pixel
|
- |
| 4 |
Display Mode
|
Normally black,Transmissive
|
- | - |
| 5 |
Display Number of Colors
|
16.7M
|
- | - |
| 6 |
Viewing Direction
|
All | - | Note |
| 7 |
Contrast Ratio
|
900 | - | - |
| 8 |
Luminance
|
300(TYP)
|
cd/m2
|
- |
| 9 |
Module Size/CTP
|
LCM:57.14(W ) x 94.30(L)x2.23
68.24x110.31x1.35
|
mm | Note |
| 10 |
Active Area
|
61.88(W) x 86.40(L)
|
mm | Note |
| 11 |
Pixel Pitch
|
0.108(W ) x 0.108(L)
|
mm | - |
| 12 |
Weight
|
TBD(TYP)
|
g | - |
| 13 |
LCD Driver IC
|
GC9503
|
- | - |
| 14 |
CTP Driver IC
|
GT911
|
Bit | - |
| 15 |
Light Source
|
8 LEDs White
|
- | - |
| 16 |
Interface
|
RGB
|
- | - |
| 17 |
Operating Temperature
|
-20~70
|
℃
|
- |
| 18 |
Storage Temperature
|
-30~80
|
℃
|
- |
Product Details
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 2-3weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
