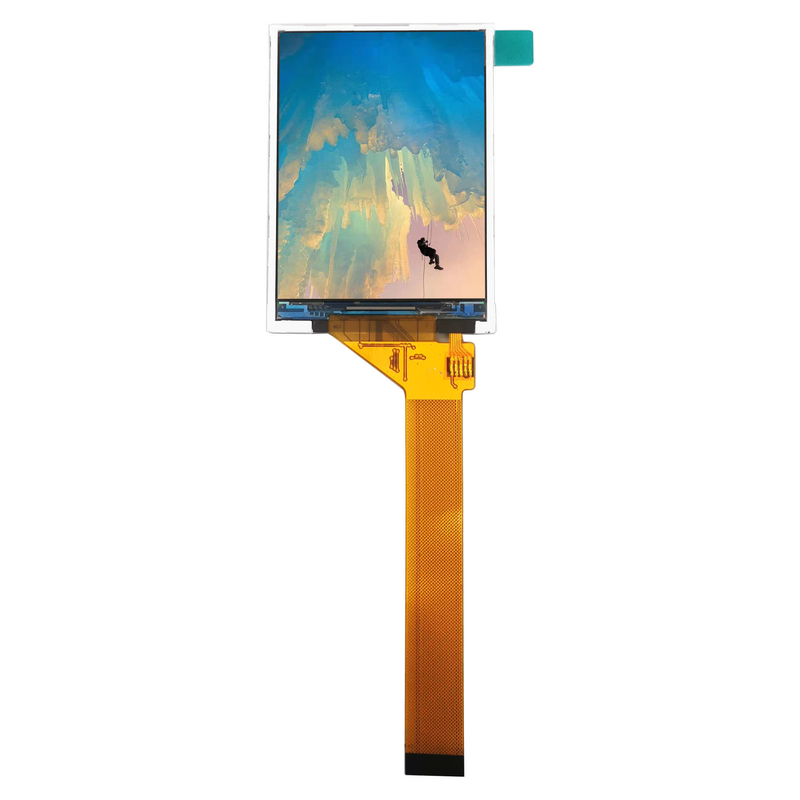

lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface

lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface

  • lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface
  • lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface
  • lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface
  • lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface
lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface
Product Details:
Place of Origin: china
Brand Name: CTC
Certification: RoHS
Model Number: YT028C013
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 3.5-4.5/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Product Name: 2.8inch Tft Module Size: 2.8 Diagonal
Viewing Direction: 12:00 O’clock Color Depth: 262K
Sub Pixel Size: 0.06x 0.18 Resolution: 240(horizontal)*320(Vertical)
Interface: SPI+RGB Pixel Configuration: R.G.B. Vertical Stripe
Pixel Driving Element: A-Si TFT Display Mode: Normally Black, Transmissive
Connect Type: 0.5mm Pitch FPC CONN(2.5) FRONT FLIP
High Light:

Lightweight 2.8 Inch LCD TFT Display

,

2.8 Inch LCD TFT Display

,

240x320 2.8 TFT LCD Display

 2.8inch tft module ST7789V 240x320 mpu interface tft lcd display



       The YT028C013 is a color active matrix TFT LCD Q-Panel using amorphous silicon TFT's (Thin Film ransistors) as an active switching devices. This module has a 2.8 inch diagonally measured active area with QVGA resolutions (240 horizontal by 320 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.



Features of 2.8inch tft module


1.0.4TGlass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant



Application of 2.8inch tft module



Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...



General Specifications of 2.8inch tft module



display size 2.8" tft lcd display module resolution 240* (RGB )*320
viewing angle 12 O'clock backlight White LED
outline dimension 50.0*69.2*2.3mm driver IC ST7789V
interface type 3SPI+8BIT-RGB brightness 200Cd/m 2
pin 24 pins Uniformity for LCM 80



Outline Dimension (unit: mm)

lightweight 2.8 Inch LCD TFT Display ST7789V 240x320 MPU Interface 0






Related Products



      TFT-LCM(MM)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
2.8 YT028TT010 240x320 50.00 69.20 3.40 P0.8/W0.4 MCU16bit 37 HX8347G
2.8 YT028TT011 240x320 50.00 69.20 3.40 P1.0/W0.5 MCU16bit 37 HX8347G
2.8 YT028T012 240x320 50.00 69.20 2.30 P0.8/W0.4 MCU8/16bit 40 HX8347G
2.8 YT028C012 240x320 50.00 69.20 2.50 P0.8/W0.4 MCU8/16bit 40 ILI9341
2.8 YT028T012-V1 240x320 50.00 69.20 2.30 P0.8/W0.4 MCU低8位 40 HX8347G
2.8 YT028T013 240x320 50.00 69.20 2.20 P1.0/W0.5 MCU8bit 37 HX8347G
2.8 YT028H013 240x320 50.00 69.20 2.25 P1.0/W0.5 MCU8bit 37 ILI9341
2.8 YT028T014 240x320 47.80 68.20 1.95 P0.8/W0.4 MCU16bit 37 ILI9341
2.8 YT028TT015 240x320 50.00 69.20 3.40 P1.0/W0.5 MCU8bit 37 HX8347G
2.8 YT028H016 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8 42 ILI9341
2.8 YT028H016-NEW 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8 42 ILI9341
2.8 YT028H016-V1 240x320 50.00 69.20 2.05 P0.8/W0.4 MCU8/16bit 42 HX8347G
2.8 YT028HT016 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU16bit 42 ILI9341
2.8 YT028HT016-V1 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU8/16bit 42 HX8347G
2.8 YT028HT016-V2 240x320 50.00 69.20 3.25 P0.8/W0.4 MCU8/16bit 42 HX8347G
2.8 YT028TT017 240x320 50.00 69.20 3.45 P1.0/W0.5 MCU8bit 37 ILI9341
2.8 YT028TT018 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 HX8347G
2.8 YT028TT018-V1 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 ILI9341
2.8 YT028TT018-V2 240x320 50.00 69.20 3.45 P0.8/W0.4 MCU8bit 26 ILI9341



Why Choose us:

1.Our company established in 2011, and have a long-term cooperation with many well-known company

2.We have a professional r&d team and technical support

3.We have a large number of spot inventory and we can ship delivery asap after payment

4.We are direct agent of these brands,ordering process simple and delivery time short

5.All screen ship from our company has long warranty and we have enough technical support can provide

after-sales service





FAQ

Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”, 1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”, 4.3”, 5”, 5.6”, 6.86”.

--Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”,14.1",15.6",17",21.5",23



Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.

Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Company profile

Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).

It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.

The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
