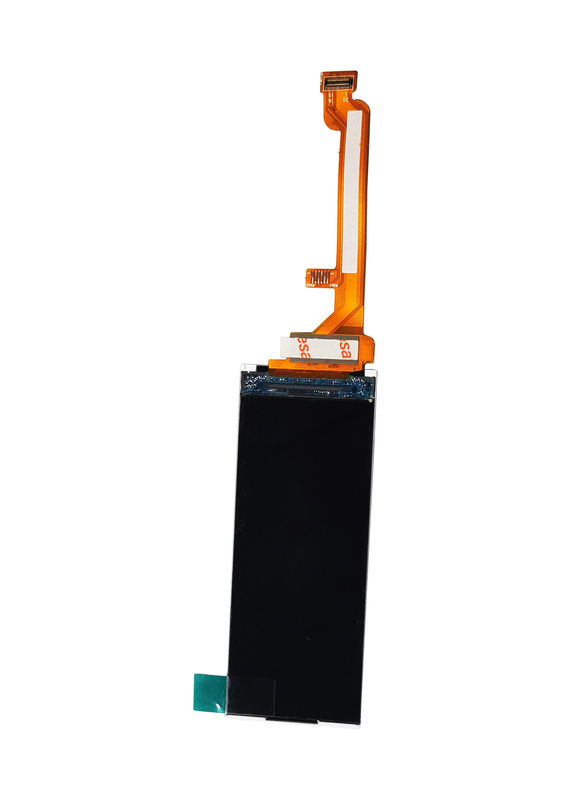

3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2

3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2

  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
  • 3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2
Product Details:
Place of Origin: china
Brand Name: ADIA
Certification: RoHS
Model Number: YT034B001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 13-15/ PCS
Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs
Delivery Time: 20-25
Supply Ability: 10KK/M
Contact Now
Detailed Product Description
Screen Size: 3.4 Inch Panel Type: A-Si TFT-LCD , LCM
Display Mode: IPS Pro, Normally Black, Transmissive Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Resolution: 340(RGB)×800 Pixel Format: RGB Vertical Stripe
Color Depth: 16.7M 70% NTSC Response Time: 16/19 (Typ.)(Tr/Td)
High Light:

6S1P WLED TFT LCD Panel

,

340×800 MIPI TFT LCD Panel

,

300cd/M2 Tft Display Panel

3.4 inch tft display MIPI Interface for Translator Point reading pen



       The YT034B001 is a 3.4-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, no backlight driver and capacitive touch screen. Its working temperature range is - 20 ~ 70 ℃ ° The storage temperature range is - 30 ~ 80 ℃ ° C. Its general features are summarized as follows: portrait, WLED backlight. According to its characteristics, it is suggested that the display should be used in the fields of mobile phone, translator and point reading pen.





Features
1.0.36t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant

Application

   It can be used in mobile phone, translator, automobile rearview mirror and reading pen etc.



General Specifications

NO. Item Specification Unit Remark
1 LCD Size 3.4 inch -
2 Manufacturer BOE - -
3 Resolution 340x (RGB) x 800 pixel -
4 Screen Type a-Si TFT-LCD LCM - -
5 Color Depth 16.7M 70% NTSC - Note
6 Good View at All o'clock - -
7 Contrast Ratio 1000 : 1 (Typ.) (TM)  - -
8 Luminance 300cd/m2 (Typ.) cd/m2 Note
9 Outline Dim  37.27 × 89.00 × 1.6 (H×V×D) mm Note
10 Active Area 33.966(W)×81.00(H) mm mm -
11 Bezel Area - mm -
12 Weight TBD (Typ.) g -
13 Display Mode  IPS Pro, Normally Black, Transmissive - -
14 Touch Panel Capacitive touch screen bit -
15 Light Source 6S1P WLED , 5K hours , No Driver - -
16 Interface Type SPI+16BIT RGB (4 data lanes) , 30pins B TO B - -
17 Operating Temperature -20~70°C ºC -
18 Storage Temperature -30~80°C ºC -



Outline Dimension (unit: mm)

3.4 Inch 6S1P WLED 340×800 MIPI TFT LCD Panel 300cd/m2 0




Why Choose us:

1.Our company established in 2011, and have a long-term cooperation with many well-known company.

2.We have a professional r&d team and technical support.

3.We have a large number of spot inventory and we can ship delivery asap after payment.

4.We are direct agent of these brands,ordering process simple and delivery time short.

5.All screen ship from our company has long warranty and we have enough technical support can provide after-sales service.



Precautions for Use of LCD Modules
1.1 Handling Precautions
1.1.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping it from a high place, etc.
1.1.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be sure not to get any in your mouth, if the substance comes into contact with your skin or clothes,promptly wash it off using soap and water.
1.1.3 Do not apply excessive force to the display surface or the adjoining areas since this may
cause the color tone to vary.
1.1.4 The polarizer covering the display surface of the LCD module is soft and easily scratched.
Handle this polarizer carefully.
1.1.5 If the display surface is contaMinated, breathe on the surface and gently wipe it with a
soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
-Isopropyl alcohol
-Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use the
following:
-Water
-Ketone
-Aromatic solvents
1.1.6 Do not attempt to disassemble the LCD Module.
1.1.7 If the logic circuit power is off, do not apply the input signals.
1.1.8 To prevent destruction of the elements by static electricity, be careful to maintain an
optimum work environment.
1.1.8.1 Be sure to ground the body when handling the LCD Modules.
1.1.8.2 Tools required for assembly, such as soldering irons, must be properly ground.
1.1.8.3 To reduce the amount of static electricity generated, do not conduct assembly and other work under dry conditions.
1.1.8.4 The LCD Module is coated with a film to protect the display surface. Be care when peeling off this protective film since static electricity may be generated.
1.2 Storage precautions
1.2.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of fluorescent lamps.
1.2.2 The LCD modules should be stored under the storage temperature range. If the LCD modules will be stored for a long time, the recommend condition is:
Temperature : 0°C~ 40°C Relatively humidity: <80%
1.2.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.
1.3 Transportation Precautions
1.3.1 The LCD modules should be no falling and violent shocking during transportation, and also should avoid excessive press, water, damp and sunshine.
