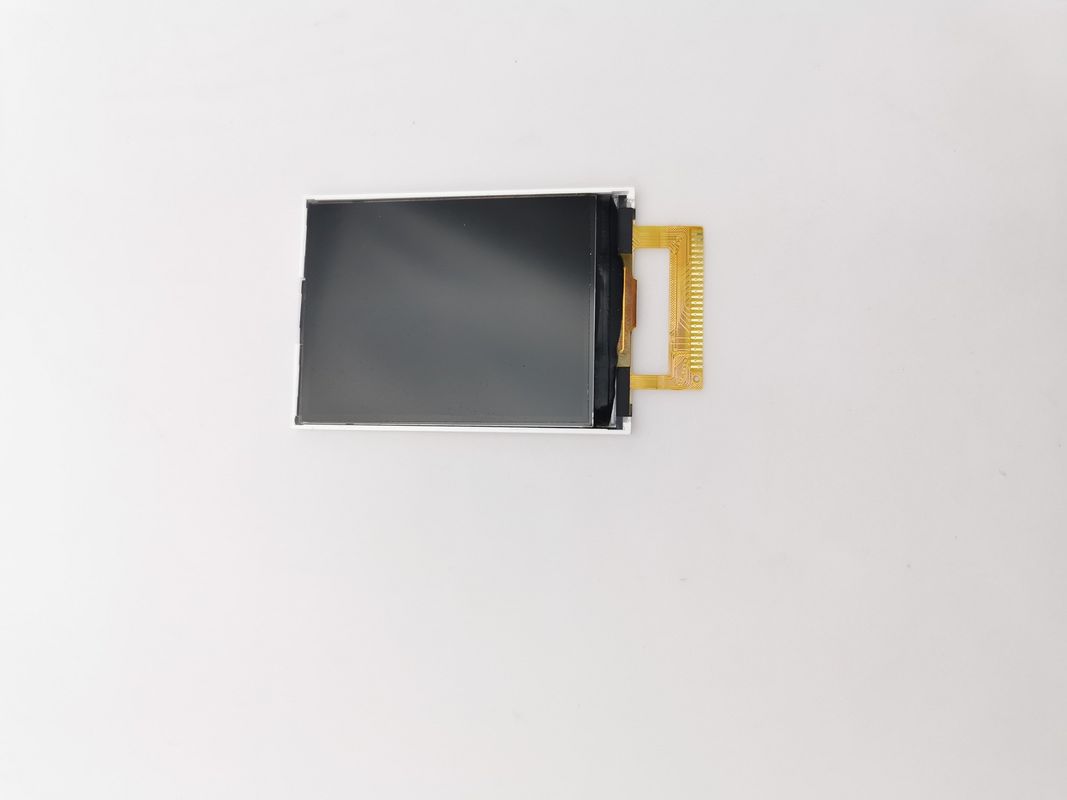

2.4 Inch 8080 MCU Interface TFT LCD Displays With ST7789 Driver

Product Details

Place of Origin: china

Brand Name: HSD

Certification: RoHS

Model Number: YT024H003

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 3-3.5/ PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Get Best Price
Contact Now
Specifications
Highlight:

ST7789 Driver 2.4 inch tft display

,

8080 mcu interface TFT LCD Displays

,

8080 mcu interface 2.4 inch tft display

Size:
2.4 Diagonal
Resolution:
240(horizontal)*320(Vertical)
Interface:
8080 Mcu
Color Depth:
262K
Pixel Pitch (um):
153 X 153
Pixel Arrangement:
Vertical Stripe
Display Mode:
Normally White, Transmissive
Viewing Direction (Grey-scale Inversion Direction):
12:00 O’clock
Structure Type:
COG+FPC+BL
Backlight Type:
WHITE LED
Size:
2.4 Diagonal
Resolution:
240(horizontal)*320(Vertical)
Interface:
8080 Mcu
Color Depth:
262K
Pixel Pitch (um):
153 X 153
Pixel Arrangement:
Vertical Stripe
Display Mode:
Normally White, Transmissive
Viewing Direction (Grey-scale Inversion Direction):
12:00 O’clock
Structure Type:
COG+FPC+BL
Backlight Type:
WHITE LED
Description
2.4 Inch 8080 MCU Interface TFT LCD Displays With ST7789 Driver

2.4 Inch 8080 MCU Interface TFT LCD Displays With ST7789 Driver



      The T24QLT001 is  is a TFT Liquid Crystal Display ODF cell. The ODF cell has been designed by ADIA, and manufactured by ADIA under the agreement of Customer.





Features


1.0.5t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant

5.COG+BL+FPC



Application



It's general features are summarized by Adia in the following: Portrait type, WLED Backlight . Based on its features, Panelook recommend that this model be applied to Mobile Phone,Handheld,PDA etc...



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 2.4 diagonal inch -
2 Panel Type T N - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Transmissive, Normally White - -
5 Display Number of Colors 262K - Note
6 Viewing Direction 12'Clock - -
7 Contrast Ratio 500(TYP) - -
8 Luminance 250(TYP) cd/m2 Note
9 Module Size 42.72(W) ×60.26( L) ×3.25(T) mm Note
10 Active Area 36.72( W) × 48.96(L) mm -
11 Pixel Pitch 0.153(W ) x 0.153(L) mm -
12 Weight TBD g -
13 Driver IC

ST7789V-G4

(SELECT CHANNEL: G1~G320;S1~S720)

- -
14 Driver IC RAM Size 240 x24 x320 bit -
15 Light Source 4LEDs White - -
16 Interface 16bit mcu - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -







Outline Dimension (unit: mm)



2.4 Inch 8080 MCU Interface TFT LCD Displays With ST7789 Driver 0



Exclusive features:


1. According to customer requirements custom structure, touch screen, FPC, configuration.
2. Accept small batch production, a full set of technical support services.




Related Products




      TFT-LCM(mm)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
2.4 YT024HT024-V2   42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 ILI9325C
2.4 YT024MT024-V3 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 HX8347-D
2.4 YT024CT024-V3 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 ILI9325D
2.4 YT024L025 240x320 42.72 60.26 2.15 P0.8/W0.4 MCU16bit 37 ILI9340
2.4 YT024MT026 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 37 ILI9338B
2.4 YT024HT027 240x320 42.72 60.26 3.20 P0.3 MCU8bit 39 ILI9341
2.4 YT024H028 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU8bit 44 ILI9325C
2.4 YT024LT034 240x320 42.72 60.26 3.20 P1.0/W0.5 MCU8bit 31 ILI9340
2.4 YT024H035 240x320 42.72 60.26 1.80 P0.7/W0.35 MCU16bit 36 ILI9325C
2.4 YT024H035-V1 240x320 42.72 60.26 1.80 P0.7/W0.35 MCU16bit 36 ILI9325C
2.4 YT024H035-V2 240x320 42.72 60.26 1.80 P0.7/W0.35 MCU16bit 36 ILI9325C
2.4 YT024H035-V3 240x320 42.72 60.26 2.20 P0.7/W0.35 MCU16bit 36 ILI9325C
2.4 YT024H036 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU16bit 35 ILI9325C
2.4 YT024HT037 240x320 42.72 60.26 3.30 P0.7/W0.35 MCU16bit 36 ILI9325C
2.4 YT024HT038 240x320 42.72 60.26 2.90 P0.8/W0.4 MCU8bitHIGH 37 ILI9325C
2.4 YT024H038-V1 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU8bitHIGH 37 ILI9325C
2.4 YT024H038-V2 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU8bitHIGH 37 ILI9325C
2.4 YT024H039 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU16bit 37 ILI9325C
2.4 YT024L040 240x320 42.72 60.26 1.80 P0.4 MCU8bit 24 LGDP4535
2.4 YT024L040-V1 240x320 42.72 60.26 1.80 P0.4 MCU8bit 24 ILI9335
2.4 YT024HT041 240x320 42.72 60.26 3.30 P0.8/W0.4 MCU16bit 44 ILI9325C
2.4 YT024H042 240x320 42.72 60.26 3.65 P0.8/W0.4 MCU18bit 44 ILI9325C
2.4 YT024HT042 240x320 42.72 60.26 3.65 P0.8/W0.4 MCU18bit 44 ILI9325C
2.4 YT024H043 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU16bit 39 R61580
2.4 YT024HT044 240x320 42.72 60.26 2.90 P0.8/W0.4 MCU8bitHIGH 35 ILI9325D
2.4 YT024T045 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T046 240x320 42.72 60.26 2.30 P0.7/W0.35 MCU16bit 36 RM68090
2.4 YT024T046-V1 240x320 42.72 60.26 2.30 P0.7/W0.35 MCU16bit 36 ILI9341







FAQ



Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23



Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.



Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.



Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Q7. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.



Q8.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require any product to be returned to us, the shipping cost will be fully paid by us.



Q9. Do you have any shipping account and can you quote favorable shipping cost?

A: Yes, we have been working with DHL, Fedex more than 11 years, our shipping accounts were granted discount as much as 85% off . Please feel free to ask our sales no matter it is sample or formal order shipment.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
