Product Details
Place of Origin: china
Brand Name: TRULY
Certification: RoHS
Model Number: T24QLT001
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 3-3.5/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Size: |
2.4 Diagonal |
Resolution: |
240(horizontal)*320(Vertical) |
Interface: |
3-Line/4-Line |
Color Depth: |
262K |
Pixel Pitch (um): |
51 X 153 |
Pixel Arrangement: |
Vertical Stripe |
Display Mode: |
Normally White, Transmissive |
Viewing Direction (Grey-scale Inversion Direction): |
12:00 O’clock |
Structure Type: |
COG+FPC+BL |
Backlight Type: |
WHITE LED |
Size: |
2.4 Diagonal |
Resolution: |
240(horizontal)*320(Vertical) |
Interface: |
3-Line/4-Line |
Color Depth: |
262K |
Pixel Pitch (um): |
51 X 153 |
Pixel Arrangement: |
Vertical Stripe |
Display Mode: |
Normally White, Transmissive |
Viewing Direction (Grey-scale Inversion Direction): |
12:00 O’clock |
Structure Type: |
COG+FPC+BL |
Backlight Type: |
WHITE LED |

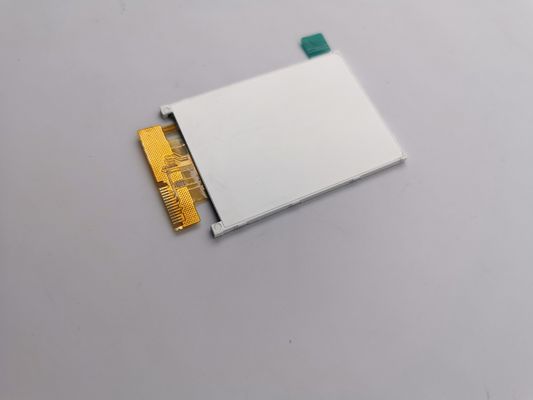

262K Color 300cd/M2 2.4 Inch TFT Display With SPI Interface
The T24QLT001 is is a TFT Liquid Crystal Display ODF cell. The ODF cell has been designed by ADIA, and manufactured by ADIA under the agreement of Customer.
Product features
(1) Display type: 2.4 inch TFT; transmission normally White
(2) Display color: 262K / 65K
(3) Driver IC: ST7789V
(4) Backlight mode: 4PCS White LED
General Specifications
NO. | Item | Specification | Unit | Remark |
1 | LCD Size | 2.4 diagonal | inch | - |
2 | Panel Type | T N | - | - |
3 | Resolution | 240x (RGB) x 320 | pixel | - |
4 | Display Mode | Transmissive, Normally White | - | - |
5 | Display Number of Colors | 262K | - | Note |
6 | Viewing Direction | 12'Clock | - | - |
7 | Contrast Ratio | 800(TYP) | - | - |
8 | Luminance | 300(TYP) | cd/m2 | Note |
9 | Module Size | 42.72(W) ×60.26( L) ×2.3(T) | mm | Note |
10 | Active Area | 36.72( W) × 48.96(L) | mm | - |
11 | Pixel Pitch | 0.153(W ) x 0.153(L) | mm | - |
12 | Weight | TBD | g | - |
13 | Driver IC |
ST7789V-G4 (SELECT CHANNEL: G1~G320;S1~S720) |
- | - |
14 | Driver IC RAM Size | 240 x24 x320 | bit | - |
15 | Light Source | 4LEDs White | - | - |
16 | Interface | 3Line/ 4-Line | - | - |
17 | Operating Temperature | -20~70 | ºC | - |
18 | Storage Temperature | -30~80 | ºC | - |
Outline Dimension (unit: mm)
Related Products
TFT-LCM(mm) | |||||||||
Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
2.4 | YT024H-M-012 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | HX8347-D |
2.4 | YT024HT013 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCU16bit | 37 | ILI9325C |
2.4 | YT024HT014 | 240x320 | 42.72 | 60.26 | 2.90 | MCU16bit | 37 | ILI9325C | |
2.4 | YT024HT015 | 240x320 | 42.72 | 60.26 | 3.25 | MCU16bit | 34 | ILI9325C | |
2.4 | YT024HT016 | 240x320 | 42.72 | 60.26 | 3.30 | MCU8bit | 30 | ILI9325C | |
2.4 | YT024HT017 | 240x320 | 42.72 | 60.26 | 3.20 | MCU8bit | 30 | ILI9325C | |
2.4 | YT024HT-M-017 | 240x320 | 42.72 | 60.26 | 3.20 | MCU8bit | 30 | HX8347-D | |
2.4 | YT024H018 | 240x320 | 42.72 | 60.26 | 1.80 | MCU8bit | 44 | ILI9325C | |
2.4 | YT024H018-V1 | 240x320 | 42.72 | 60.26 | 1.80 | P0.8/W0.4 | MCU8bit | 44 | ILI9325C |
2.4 | YT024HT019 | 240x320 | 42.72 | 60.26 | 3.35 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H020 | 240x320 | 42.72 | 60.26 | 2.25 | MCU8bit | 40 | ILI9325C | |
2.4 | YT024H020-V1 | 240x320 | 42.72 | 60.26 | 2.25 | MCU8bit | 40 | ILI9325C | |
2.4 | YT024H020-V1-NEW | 240x320 | 42.72 | 60.26 | 2.25 | MCU8bit | 40 | ILI9325C | |
2.4 | YT024B020 | 240x320 | 42.72 | 60.26 | 2.25 | MCU8bit | 40 | ILI9341 | |
2.4 | YT024H021 | 240x320 | 42.72 | 60.26 | 2.30 | MCU8bit | 37 | ILI9325C | |
2.4 | YT024HT021 | 240x320 | 42.72 | 60.26 | 3.30 | MCU8bit | 37 | ILI9325C | |
2.4 | YT024HT021-V1 | 240x320 | 42.72 | 60.26 | 3.30 | MCU8bit | 37 | ILI9325C | |
2.4 | YT024HT022 | 240x320 | 42.72 | 60.26 | 3.30 | MCU16bit | 37 | ILI9325C | |
2.4 | YT024HT023 | 240x320 | 42.72 | 60.26 | 3.25 | MCU16bit | 34 | ILI9325C | |
2.4 | YT024HT023-V1 | 240x320 | 42.72 | 60.26 | 3.25 | MCU16bit | 34 | ILI9325C | |
2.4 | YT024H024 | 240x320 | 42.72 | 60.26 | 1.80 | P0.8/W0.4 | MCU16bit | 37 | ILI9325C |
2.4 | YT024HT024 | 240x320 | 42.72 | 60.26 | 2.90 | P0.8/W0.4 | MCU16bit | 37 | ILI9325C |
2.4 | YT024HT024-V1 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCU16bit | 37 | ILI9325C |
