Product Details
Place of Origin: china
Brand Name: CHIMEI INNOLUX
Certification: RoHS
Model Number: T24QLT001
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 3-3.5/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Size: |
2.4 Diagonal |
Resolution: |
240(horizontal)*320(Vertical) |
Interface: |
3-Line/4-Line |
Color Depth: |
65K/262K 73% NTSC |
Pixel Pitch (um): |
51 X 153 |
Pixel Configuration: |
R.G.B. Vertical Stripe |
Display Mode: |
Normally White, Transmissive |
Refresh Rate: |
60Hz |
Structure Type: |
COG+FPC+BL |
Backlight Type: |
LED White |
Size: |
2.4 Diagonal |
Resolution: |
240(horizontal)*320(Vertical) |
Interface: |
3-Line/4-Line |
Color Depth: |
65K/262K 73% NTSC |
Pixel Pitch (um): |
51 X 153 |
Pixel Configuration: |
R.G.B. Vertical Stripe |
Display Mode: |
Normally White, Transmissive |
Refresh Rate: |
60Hz |
Structure Type: |
COG+FPC+BL |
Backlight Type: |
LED White |

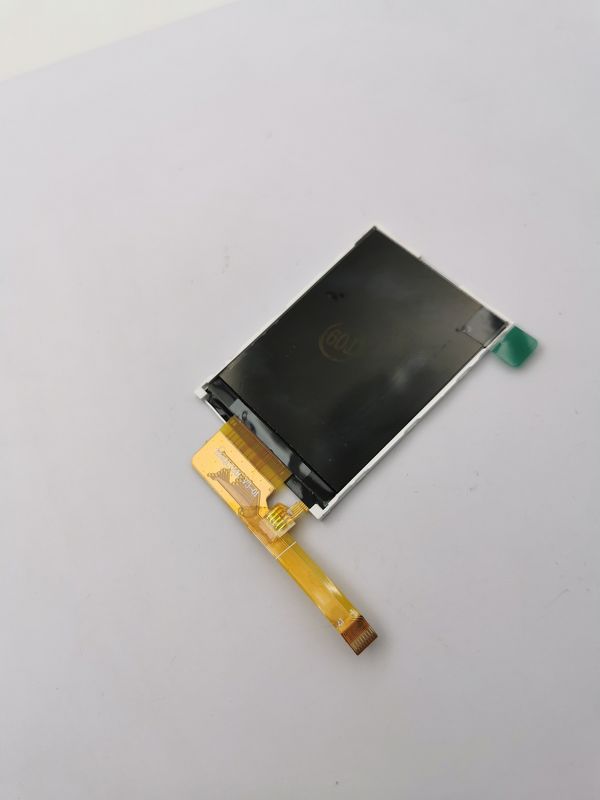

2.4 Inch St7789V Driver 240xRGBx320 TFT LCD Displays
The T24QLT001 is a 2.4” a-Si TFT Liquid Crystal Display ODF cell. The ODF cell has been designed by CMI, and manufactured by CMI under the agreement of customer. The a-Si TFT-LCD cell will be applied to a high transmittance operating in the normally white mode a-Si TFT-LCD product.
Application
This product is used in mobile phones, handheld devices, POSS machines, police enforcement instruments, military handheld, automotive electronics, industrial equipment, medical equipment, smart home and other industries
General Specifications
NO. | Item | Specification | Unit | Remark |
1 | LCD Size | 2.4 diagonal | inch | - |
2 | Panel Type | T N | - | - |
3 | Resolution | 240x (RGB) x 320 | pixel | - |
4 | Display Mode | Normally White | - | - |
5 | Display Number of Colors | 262K | - | Note |
6 | Viewing Direction | 12'Clock | - | - |
7 | Contrast Ratio | 250(min) | - | - |
8 | Luminance | 300(TYP) | cd/m2 | Note |
9 | Module Size | 42.72(W) ×60.26( L) ×2.3(T) | mm | Note |
10 | Active Area | 36.72( W) × 48.96(L) | mm | - |
11 | Pixel Pitch | 0.051(W ) x 0.153(L) | mm | - |
12 | Weight | - | g | - |
13 | Driver IC | ST7789V | - | - |
14 | Driver IC RAM Size | 240 x24 x320 | bit | - |
15 | Light Source | 4LEDs White | - | - |
16 | Interface | 3Line/ 4-Line | - | - |
17 | Operating Temperature | -20~70 | ºC | - |
18 | Storage Temperature | -30~80 | ºC | - |
Outline Dimension (unit: mm)
Related Products
TFT-LCM(mm) | |||||||||
Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
2.4 | YT024BT012-V11 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | ILI9341 |
2.4 | YT024BT012-V12 | 240x320 | 42.72 | 60.26 | 3.40 | P0.8/W0.4 | MCUHIGH16bit | 37 | ILI9341 |
2.4 | YT024BT012-V13 | 240x320 | 42.72 | 60.26 | 3.50 | P0.8/W0.4 | MCUHIGH8bit | 37 | ILI9341 |
2.4 | YT024H012-V2 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V3 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V4 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V4-NEW | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V5 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V6 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V7 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V8 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V9 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V10 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V11 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9325C |
2.4 | YT024H012-V12 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V13-PP | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V13-PP-NEW | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V14-PP | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V15-PP | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | R61526 |
2.4 | YT024H012-V16 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V17-PP | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU16bit | 37 | ILI9341 |
2.4 | YT024H012-V18-PP | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V18-PP-NEW | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
2.4 | YT024H012-V19 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | ILI9325D |
2.4 | YT024H012-V20 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | ILI9325D |
2.4 | YT024H012-V21 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | ILI9325D |
2.4 | YT024H012-V22 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | GC9301 |
2.4 | YT024H012-V23 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | GC9301 |
