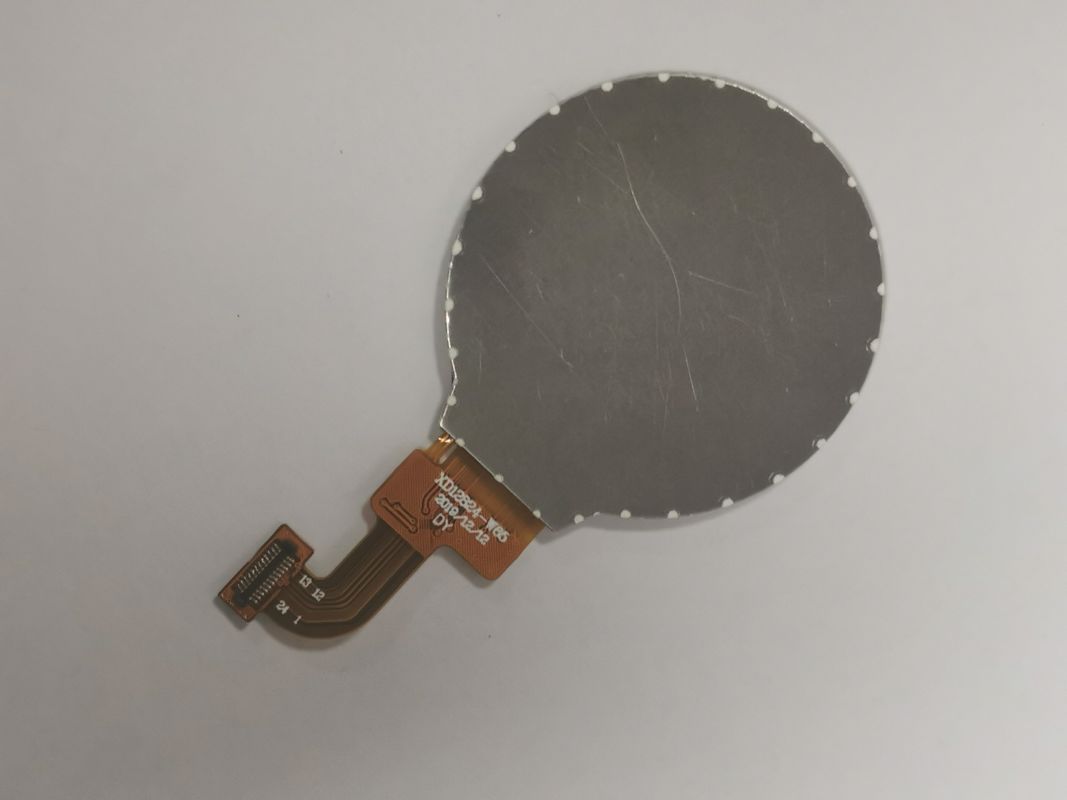

200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module

200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module

  • 200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module
  • 200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module
  • 200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module
  • 200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module
200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module
Product Details:
Place of Origin: china
Brand Name: HSD
Certification: RoHS
Model Number: YT128H001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 2.5-3.5/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Supply Ability: 1kk/m
Contact Now
Detailed Product Description
Size: 1.28 Inch Display Mode: Normally Black
Resolution: 240*240 Active Area(mm): Φ32.4
Viewing Angle: All O'clock Brightness: 200 Cd/m2
Colors: 262K Interface: 4-SPI
High Light:

240x240 1.28 inch round lcd panel

,

240x240 TFT LCD Display Module

,

200cd/m2 1.28 inch round lcd panel

200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module



      The  YT128H002  is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 1.28 inch diameter measured active display area with 240 horizontal by 240 vertical pixel resolution.



Features


1.0.5t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant



Application



Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 1.28 inch -
2 Panel Type IPS - -
3 Resolution 240x (RGB) x 240 pixel -
4 Display Mode Normally Black - -
5 Display Number of Colors 16.7M - Note
6 Viewing Direction Free - -
7 Contrast Ratio 900(min) - -
8 Luminance 320(TYP) cd/m2 Note
9 Module Size 35.60(H)*38.10(V)*1.55(D) mm Note
10 Active Area Φ32.4 mm -
11 Pixel Pitch 0.135(W ) x 0.1356(L) mm -
12 Weight - g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 2LEDs White - -
16 Interface 4SPI  - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -



Outline Dimension (unit: mm)





200cd/M2 1.28 Inch Round LCD Panel , 240x240 TFT LCD Display Module 0



Related Products


      TFT-LCM
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
1 YT463H001 480*854 63.4 113.28 2.00 P0.6 24 BIT RGB 45 NT35510
2 YT463H002 480*854 63.4 113.28 1.90 BTB 16 BIT RGB 40 NT35510
3 YT463H003 480*854 63.4 113.28 2.00 P0.6 24 BIT MCU 45 NT35510
4 YT463H004 480*854 63.4 113.28 2.00 P0.6 16 BIT MCU 39 NT35510
5 YT463H005 480*854 63.4 113.28 2.00 BTB MIPI 24 NT35510
6 YT463H006 480*854 63.4 113.28 2.00 P0.6 MIPI 25 NT35510
7 YT463H007 480*854 63.4 113.28 2.00 P0.6 MIPI 25 NT35510
8 YT463H008 480*854 63.4 113.28 2.00 BTB 24 BIT MCU 50 NT35510H
9 YT463HT009 272*480 63.4 113.28 3.50MAX W0.4/P0.8 8 30 ILI9486L
10 YT463H010 480*854 63.4 113.28 2.00 P0.6 MIPI 25 NT35510
11 YT463HT011 272*480 63.4 113.28 3.30MAX W0.4/P0.8 8 35 ILI9486L
11 YT463H011 272*480 63.4 113.28 2.15MAX W0.4/P0.8 8 35 HX8357-C01
12 YT463HT011-V1 272*480 63.4 113.28 3.50MAX W0.4/P0.8 8 35 ILI9486L
12 YT463HT011-V2 272*480 63.4 113.28 3.50MAX W0.4/P0.8 8 35 NT35310
12 YT463H011-V1 272*480 63.4 113.28 2.30 W0.4/P0.8 8 35 HX8357-C01
13 YT463H012 480*854 63.4 113.28 2.12 W0.4/P0.8 24 BIT RGB 50 NT35510
14 YT463H013 480*854 63.4 113.28 2.12 BTB MIPI 24 NT35510H
15 YT463H014 480*854 63.4 113.28 1.80 BTB MIPI 24 NT35510H



FAQ



1. How to understand Stock for Sale.


Answer:According to the company regulation, each standard product must be kept the stock of 1000pcs.

When the stock is less than 1000 pcs, we will put it into production at once instead of waiting for the orders. When the stock are more than 5000 pcs, the production must be stopped.

Appropriate stock is a very good support for the customer’s sampling and trial production demand.

The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality,
what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.

The appropriate stock is also a good way to reduce the cost. In busy seasons, we can produce the orders, while in free seasons, we can produce the stock. By this way, the labor source is maximumly used. At the same time, in free season, the materials can be bought at lower price.

2. How does Adia do for Never End of Supply?

Answer:EOL(End of Life) is largely because of end of life of the raw materials

When the EOL of the raw materials such as drivers and LCD panels happens, we can place a very large order with the supplier which may cover the consumption of one or two year. This large order is enough for the supplier to restart the production.

On the other hand, we can develop the replacement product which is mechanically and functionally the same as the previous one. For
the customer, only software will be changed a little while the hardware will remain the same.



Adia has built comprehensive relationships with the supplier samsun as LG, Hannstar and BOE and we can get the EOL products through our special channel to guarantee the continuous supply.

In LCD industry, due to the quick update of the technology, never end of supply is hard, but so far, Adia has never disappointed any customer.

Once the customer chooses us, we will offer the unchanged service till the end. Long-time relationship and mutual trust are our target and we hate well beginning but bad ending.

3. How to understand No MOQ?

Answer:The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.

In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.

However, if the quantity is small, the price will be higher.

4. How to understand in Full Range.
Answer:In full range means that our products are in great variety. We have what other manufacturers have, and we have what they don’t have. The customer is easy to find what they want in our product group. Like Walmart instead of Seven Eleven, all kinds of the products are placed before us and it is easy to attract the customers to come, so we like going shopping in Walmart, but we don’t like to go to Seven Eleven.





5. How does Adia guarantee the quality?

Answer: Adia has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.

Adia has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.

The Adia is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and aftersales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. Adia is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.

6. Why are Adia’s products higher in price?

Answer: The LCD quality has three standards: 1.consuming standards.2.Industrial standards 3.Automotive standards. Automotive standards are the highest grade which require the strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject. To follow automotive standards, we have to select the best raw materials, and bring in the most expensive equipment and very tough management, so our cost is higher.

In fact, our higher price is only manifested in samples. If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.

7. How long can we expect the samples?

Answer: Immediately in most of the cases.
