| Place of Origin: | china |
| Brand Name: | BOE |
| Certification: | RoHS |
| Model Number: | BP101WX1-206 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 50-60/ PCS |
| Packaging Details: | 50cm*50cm*60cm |
| Delivery Time: | 20-25 |
| Size: | 10.1 Inch | Resolution: | 1280(horizontal)*800(Vertical) |
|---|---|---|---|
| Interface: | 40PIN LVDS | Back-light: | Bottom Edge Side, 1-LED Lighting Bar Type |
| Display Colors: | 16.7M(6bits + Hi-FRC) | Display Mode: | Transmission Mode. Normally Black |
| Pixel Pitch (㎛): | 169.5 | Pixel Configuration: | R.G.B. Vertical Stripe |
| Display Mode: | Normally Black | Viewing Direction: | Free |

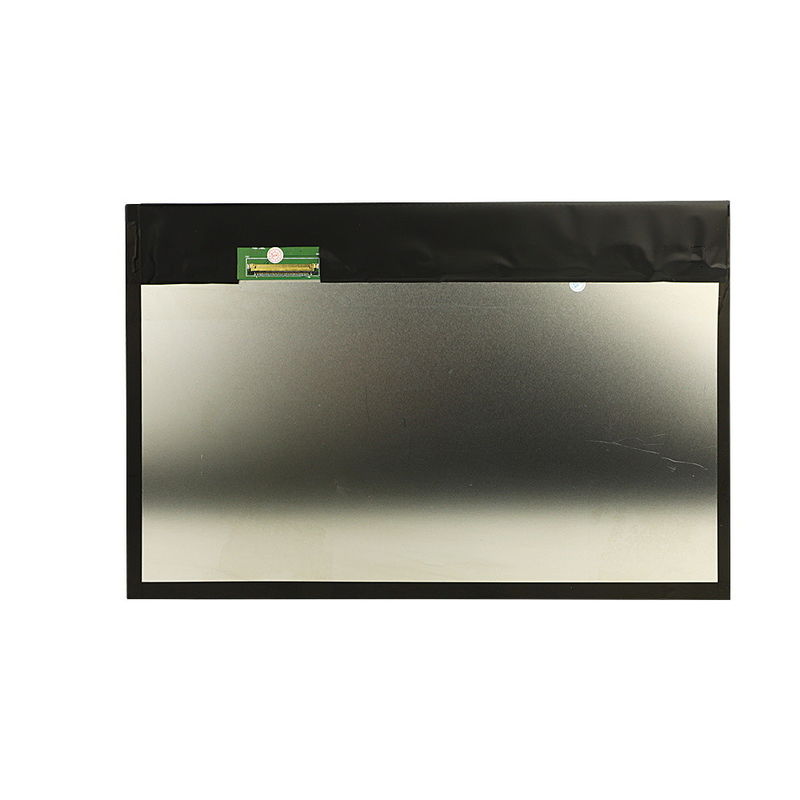

10.1inch BP101WX1-206 TFT LCD display Module LVDS Interface
BP101WX1-206 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.07 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Product features
(1) Display type: 10.1-inch TFT; transmission normally black
(2) Display color: 16.7M
(3) Driver IC:
(4) Backlight mode: white LED
(5)COG+BL+FPC+T-CON
Application
Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...
General Specifications
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 10.1 inch diagonal | inch | - |
| 2 | Panel Type | IPS | - | - |
| 3 | Resolution | 1280x (RGB) x 800 | pixel | - |
| 4 | Display Mode | Normally black,Transmissive | - | - |
| 5 | Display Number of Colors | 16.7M(6bits + Hi-FRC) | - | Note |
| 6 | Viewing Direction | ALL View | - | - |
| 7 | Contrast Ratio | 600(min) | - | - |
| 8 | Luminance | 330(TYP) | cd/m2 | Note |
| 9 | Module Size | 228.6 ×149.2 ×2.39typ. | mm | Note |
| 10 | Active Area | 216.96(H) ×135.60(V) | mm | - |
| 11 | Pixel Pitch | 169.5 | ㎛ | |
| 12 | Weight | 150 (max) | g | - |
| 13 | Surface Treatmen | Hard Coating, 3H, Low Reflection (Front Polarizer) | - | - |
| 14 | Back-light | Bottom edge side, 1-LED Lighting Bar Type | bit | - |
| 15 | Light Source | Bottom edge side, 1-LED Lighting Bar Type | - | - |
| 16 | Interface | Channel LVDS Interface with 1 pixel / clock | - | - |
| 17 | Operating Temperature | 0~50 | ºC | - |
| 18 | Storage Temperature | -20~60 | ºC | - |
Outline Dimension (unit: mm)
Related Products
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) |
Interface | View direction |
| 2.31 | YT023H003 | 320*240 | 50.80*45.80*2.46 | MCU/SPI | 12 O'Clock |
| 2.4 | YT024H001 | 240*320 | 42.72*60.26*2.25 | MCU | 12 O'Clock |
| 2.4 | YT024C017 | 240*320 | 42.72*60.26*2.25 | SPI+RGB/MCU | ALL |
| 2.8 | YT028H003 | 240*320 | 50.00*69.20*2.40 | MCU | ALL |
| 2.8 | YT028I001 | 240*320 | 50.00*69.20*2.40 | MCU | 12 O'Clock |
| 3.5 | YT035F001 | 320*480 | 54.66*82.94*2.20 | MIPI | 12 O'Clock |
| 3.5 | YT035C025 | 320*480 | 55.00*84.71*2.25 | MCU/SPI | ALL |
| 3.5 | YT043H007 | 480*800 | 62.46*105.9*2.20 | SPI+RGB | ALL |
| 4 | YT043H012 | 480*800 | 62.46*105.9*2.20 | MIPI | 12 O'Clock |
| 4.3 | YT445H006 | 480*854 | 60.04*109.42*1.95 | RGB | ALL |
| 4.5 | YT045I001 | 480*854 | 60.00*109.00*1.85 | MIPI | ALL |
| 5 | YT050B008 | 720*1280 | 64.70*118.70*1.55 | MIPI | ALL |
| 5 | YT050C001 | 1080*1920 | 64.9*119.75*2.2 | RGB | ALL |
| 5 | YT055H005-V1 | 480*800 | 70.34*128.11*2.05 | RGB | ALL |
| 5.5 | YT055B001 | 1080*1920 | 71.00*129.56*1.50 | MIPI | ALL |
