| Place of Origin: | china |
| Brand Name: | HSD |
| Certification: | RoHS |
| Model Number: | YT030H001 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | USD 8.5-9/ PCS |
| Packaging Details: | 50cm*50cm*60cm |
| Delivery Time: | 20-25 |
| Size: | 3.0inch | Resolution: | 360x (RGB) X 640 |
|---|---|---|---|
| Interface: | RGB | Connect Type: | FPC 0.5MM |
| Color Depth: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.102(W ) X 0.102(L) | Pixel Configuration: | R.G.B. Vertical Stripe |
| Display Mode: | Normally Black | Viewing Direction: | All O’clock |
| High Light: | 360x640 3 inch tft display,360x640 3.0 inch TFT LCD Displays,ST7701S driver 3 inch tft display |
||

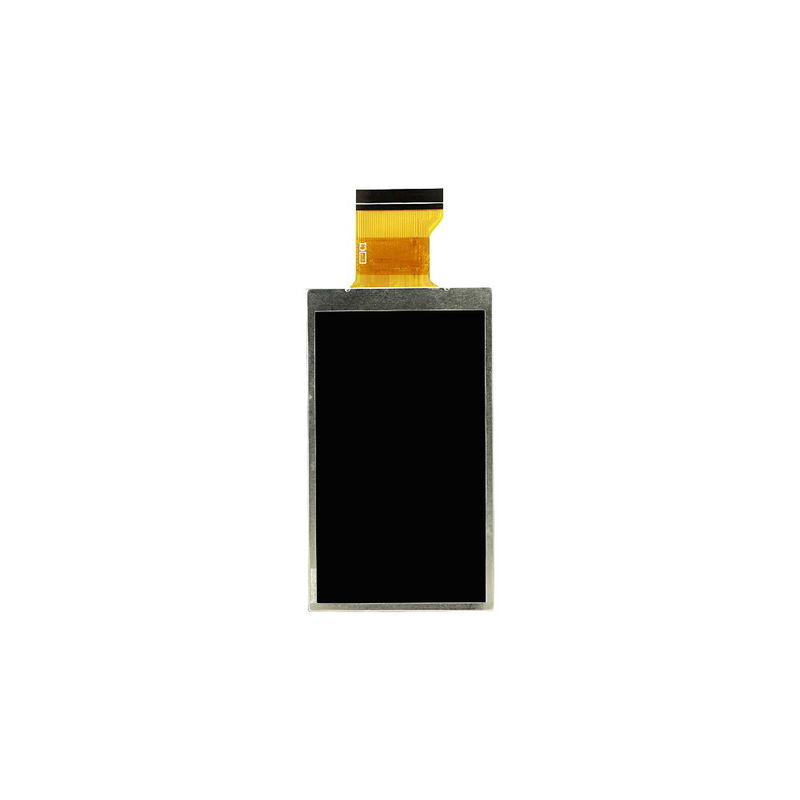

RoHS ST7701S Driver 360x640 3.0 Inch TFT LCD Displays
YT030H001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.0(9:16) inch diagonally measured active display area with nHD (360 horizontal by 640 vertical pixel) resolution.
Product features
(1) Display type: 3.0 TFT; transmission normally black
(2) Display color: 262K / 65K
(3) Driver IC: st7701
(4) Backlight mode: white LED
Application
This product is used in mobile phones, handheld devices, POSS machines, police enforcement instruments, military handheld, automotive electronics, industrial equipment, medical equipment, smart home and other industries
General Specifications
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 3.0 | inch | - |
| 2 | Panel Type | IPS | - | - |
| 3 | Resolution | 360x (RGB) x 640 | pixel | - |
| 4 | Display Mode | Normally Black | - | - |
| 5 | Display Number of Colors | 16.7M | - | Note |
| 6 | Viewing Direction | VA | - | - |
| 7 | Contrast Ratio | 600(min) | - | - |
| 8 | Luminance | 300(TYP) | cd/m2 | Note |
| 9 | Module Size | 43.44(W) ×75.31( L) ×2.65(T) | mm | Note |
| 10 | Active Area | 36.72( W) × 65.28(L) | mm | - |
| 11 | Pixel Pitch | 0.102(W ) x 0.102(L) | mm | - |
| 12 | Weight | - | g | - |
| 13 | Driver IC | ST7701S | - | - |
| 14 | Driver IC RAM Size | RAMLess | bit | - |
| 15 | Light Source | 6LEDs White | - | - |
| 16 | Interface | SPI+SPI 18BIT | - | - |
| 17 | Operating Temperature | -30~85 | ºC | - |
| 18 | Storage Temperature | -30~85 | ºC | - |
Outline Dimension (unit: mm)
Related Products
| TFT-LCM(mm) | |||||||||
| Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
| 3 | YT030H001 | 240x400 | 45.04 | 77.00 | 2.45 | P0.8/W0.4 | MCU16bit | 37 | ILI9327 |
| 3 | YT030H001-V1 | 240x400 | 45.04 | 77.00 | 2.00 | P0.8/W0.4 | MCU16bit | 37 | ILI9327 |
| 3 | YT030H001-V3 | 240x400 | 45.04 | 77.00 | 2.45 | P0.8/W0.4 | MCU8bit(高) | 37 | ILI9327 |
| 3 | YT030H001-V4 | 240x400 | 45.04 | 77.00 | 2.45 | P0.8/W0.4 | MCU16bit | 37 | ILI9327 |
| 3 | YT030HT001 | 240x400 | 45.04 | 77.00 | 3.40 | P0.8/W0.4 | MCU16bit | 37 | ILI9327 |
| 3 | YT030HT001-V2 | 240x400 | 45.04 | 77.00 | 3.55 | P0.8/W0.4 | MCU8bit(高) | 37 | ILI9327 |
| 3 | YT030H001-V5 | 240x400 | 45.04 | 77.00 | 3.40 | P0.8/W0.4 | MCU16bit | 37 | ILI9327 |
| 3 | YT030HT001-V6 | 240x400 | 45.04 | 77.00 | 3.40 | P0.8/W0.4 | MCU8bit(低) | 37 | ILI9327 |
