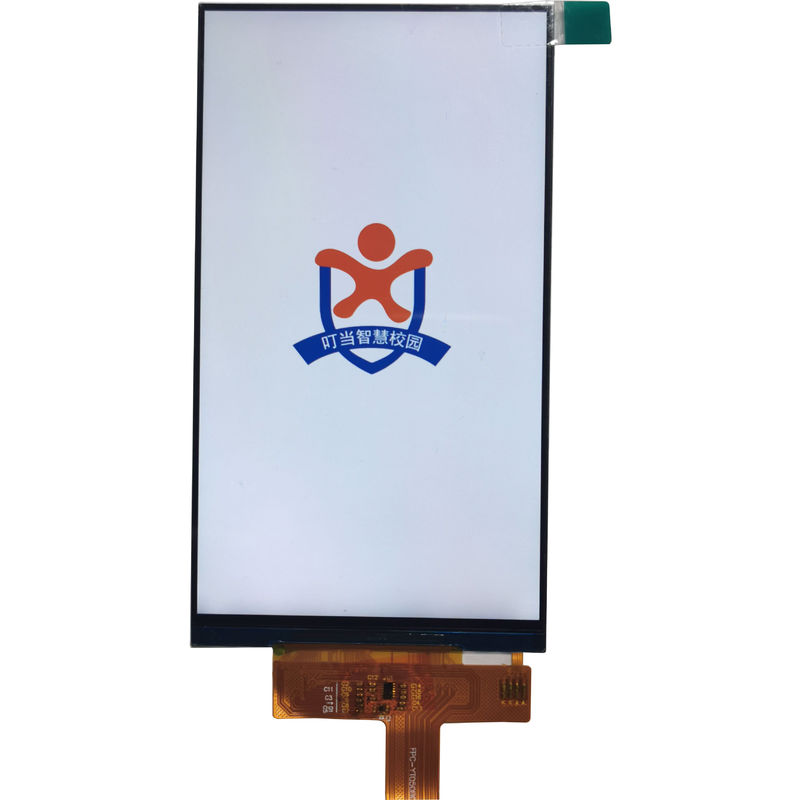

5.0 Inch 480*854 Tft Touch Screen Display With Mipi Dsi Interface
The panel of the LCD consists of two thin glasses with polarizers which easily get damaged. So extreme care should be taken when handling the LCD.Excessive stress or pressure on the glass of the LCD should be avoided. Care must be taken to insure that no torsional or compressive forces are applied to the LCD unit when it is mounted. If the customer's set presses the main parts of the LCD, the LCD may show the abnormal display. But this phenomenon does not mean the malfunction of the LCD and should be pressed by the way of mutual agreement. To determine the optimum mounting angle, refer to the viewing angle range in the specification for each model. Mount a LCD module with the specified mounting parts.
Application
Display modules have been widely used in all walks of life, such as mobile phones, handheld POS machines, night vision devices, smart home, intelligent robots, intelligent furniture, automotive systems, medical equipment, educational equipment, 3D printers, industrial controllers, security equipment, military equipment, etc...
Product features
(1) Display type: 5.0 '' TFT; transmission; All o'clock
(2) Display color: 16.7M
(3) Driver IC: ST7701S
(4) Backlight mode: white LED
General Specifications
NO. | Item | Specification | Unit | Remark |
1 | LCD Size | 5.0 inch diagonal | inch | - |
2 | Panel Type | IPS | - | - |
3 | Resolution | 480x (RGB) x 854 | pixel | - |
4 | Display Mode | Normally black,Transmissive | - | - |
5 | Display Number of Colors | 16.7M | - | Note |
6 | Viewing Direction | ALL View | - | - |
7 | Contrast Ratio | 900(min) | - | - |
8 | Luminance | 350(TYP) | cd/m2 | Note |
9 | Module Size | 67.00(W) ×121.20( L) ×2.36(T) | mm | Note |
10 | Active Area | 63.26( W) × 117.72(L) | mm | - |
11 | Pixel Pitch | 0.0807(W ) x 0.0807(L) | mm | - |
12 | Weight | - | g | - |
13 | Driver IC | ST7701S | - | - |
14 | Driver IC RAM Size | RAMLess | bit | - |
15 | Light Source | 12LEDs White | - | - |
16 | Interface | MIPI | - | - |
17 | Operating Temperature | -20~70 | ºC | - |
18 | Storage Temperature | -30~80 | ºC | - |
Outline Dimension (unit: mm)
Related Products
TFT-LCM(mm) | |||||||||
Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
5 | YT050H005-V1 | 480*800 | 71 | 120.4 | 2.2 | Plug in | MIPI | 25 | NT35512 |
5 | YT050H005-V2 | 480*800 | 71 | 120.4 | 2.1 | Plug in | MIPI | 25 | OTM8009A |
5 | YT050H006 | 480*800 | 71 | 120.4 | 2.1 | Plug in | MIPI | 25 | NT35510H |
5 | YT050H006-V1 | 480*800 | 71 | 120.4 | 2.2 | Plug in | MIPI | 25 | NT35512 |
5 | YT050H006-V2 | 480*800 | 71 | 120.4 | 2.1 | Plug in | MIPI | 25 | OTM8009A |
5 | YT050H006-V3 | 480*800 | 71 | 120.4 | 2.2 | Plug in | MIPI | 25 | OTM8018B-C7 |
5 | YT050H007 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MIPI | 22 | NT35510H |
5 | YT050H008 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MIPI | 20 | NT35510H |
5 | YT050H009 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MIPI | 25 | NT35510H |
5 | YT050H010 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MIPI | 25 | NT35512 |
5 | YT050H010-V1 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MIPI | 25 | OTM8009A |
5 | YT050H011 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MCU 16bit | 48 | NT35510H |
5 | YT050H011-V1 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MCU 16bit | 48 | NT35510H |
5 | YT050H011-V2 | 480*854 | 66.22 | 120.55 | 2.1 | Plug in | MCU 16bit | 48 | NT35510H |
5 | YT050H012 | 480*800 | 71 | 120.4 | 2.1 | Plug in | MIPI | 23 | NT35510BH |
5 | YT050H013 | 480*800 | 71 | 120.4 | 2.2 | Plug in | MIPI | 25 | OTM8018B-C7 |
