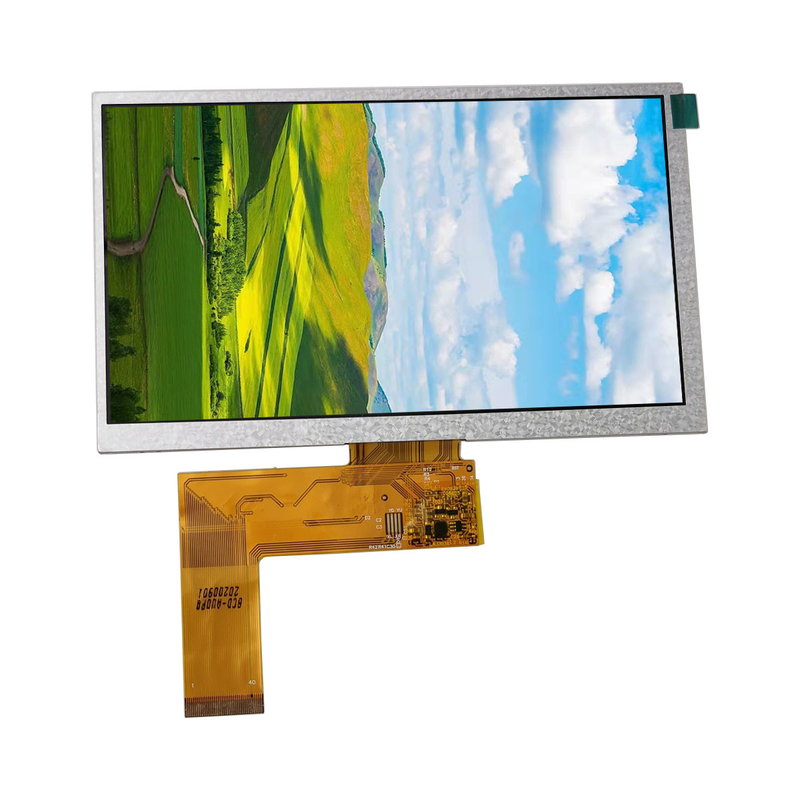

5.0 Inch Industrial Tft Display Panel 40pin RGB Interface 800x480

5.0 Inch Industrial Tft Display Panel 40pin RGB Interface 800x480

  • 5.0 Inch Industrial Tft Display Panel 40pin RGB Interface 800x480
5.0 Inch Industrial Tft Display Panel 40pin RGB Interface 800x480
Product Details:
Place of Origin: china
Brand Name: Chimei Innolux
Certification: RoHS
Model Number: FPC-500Q01
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD 12-13/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Product Name: Tft Display Panel Size: 5.0 Inch
Pixel Format: 800(RGB)×480 [WVGA] 188PPI Interface: Parallel RGB (1 Ch, 24-bit)
Connect Type: 50 Pins FPC Technology Type: A-Si A-Si TFT-LCD, LCM
Pixel Pitch (mm): 0.0642.5(W ) X 0.1790(L) Pixel Configuration: R.G.B. Vertical Stripe
High Light:

5.0 Inch Tft Display Panel


40pin Tft Display Panel


RGB Interface tft display module

5.0 Inch Industrial TFT LCD Display 40pin RGB Interface 800x480


      The FPC-500Q01  is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chinmei Innodux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .


General Specifications of  Industrial TFT Display

NO. Item Specification Unit Remark
1 LCD Size 5.0 inch -
2 Panel Type TN - -
3 Resolution 800x (RGB) x 480 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K/16M - Note
6 Viewing Direction 6'clock - -
7 Contrast Ratio 500(TYP) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size  120.7(H)×76.3(V) ×3.3(D) mm mm Note
10 Active Area 108(H)×64.8(V) mm mm -
11 Bezel Area
110.6(H)×67.6(V) mm mm -
12 Weight - g -
13 Driver IC - - -
14 CTP Driver IC - - -
15 Driver IC RAM Size RAMLess bit -
16 CTP Interface - -
17 Light Source 27LEDs White - -
18 Interface Parallel RGB (1 ch, 8-bit) , 50 pins FPC - -
19 Operating Temperature -20~70 ºC -
20 Storage Temperature -30~80 ºC -



We are professional LCD module manufacture in China with precise and advanced equipments.

High quality Control with CE, ROHS and so on approved.

More than 10 years of industry experience and involved main markets all over the world

Dedicated and professional sales team will offer you 24 hours online and immediate service

OEM and ODM support,12 months warranty for all of our products

Our mission is to help our customers achieve success, then fulfill our both dreams


Outline Dimension (unit: mm)


5.0 Inch Industrial Tft Display Panel 40pin RGB Interface 800x480 0







1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.




2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.




If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.




Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.




4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.




Q1. How can I trust your product quality?


--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.


Q2. Which sizes of LCDs and Touch Panels do you provide?


--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23


Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.


Q4. What is the lead time for Sample order and Mass Production order?
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.


Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.


Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.
