Product Details
Place of Origin: china
Brand Name: BOE
Certification: RoHS
Model Number: YT043B006
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 10.25-12/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Supply Ability: 1k/m
LCD Size: |
4.3inch |
Panel Type: |
A-Si TFT Active Matrix |
Resolution: |
480RGB*272 |
Display Mode: |
Usually White,Transmissive |
Light Source Shape: |
Planarity |
Type Of Light Source: |
10LEDS White |
Membrane Plate Material: |
IPS ALL O'clock |
Display Color: |
16.7M |
LCD Size: |
4.3inch |
Panel Type: |
A-Si TFT Active Matrix |
Resolution: |
480RGB*272 |
Display Mode: |
Usually White,Transmissive |
Light Source Shape: |
Planarity |
Type Of Light Source: |
10LEDS White |
Membrane Plate Material: |
IPS ALL O'clock |
Display Color: |
16.7M |

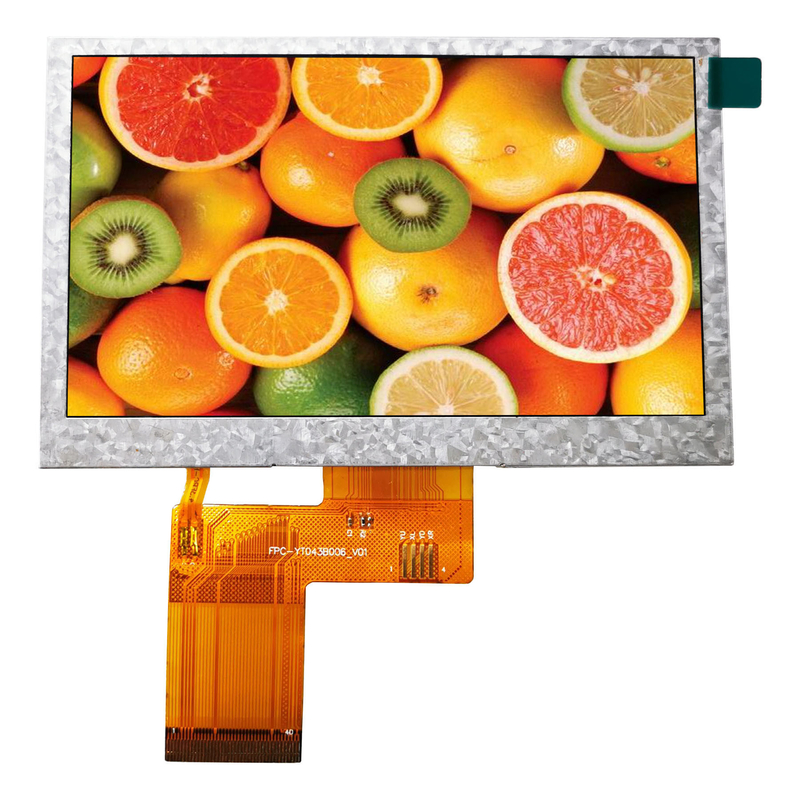

4.3inch Horizontal TFT LCD Panel With Resistive Capacitive Touch Screen
4.3inch IPS wide temperature YT043B006 resistive capacitive touch screen overview
Feature
YT043B006 General specifications
| No. | ltem | specifications |
| 1 | LCD Size: | 4.3inch |
|
2 |
Panel Type: | a-Si TFT active matrix |
| 3 | Resolution: | 480*RGB*272 |
| 4 | Display Mode: | Normally white, Transmissive |
| 5 | Display Number of Colors: | 16.7M |
| 6 | Viewing Direction: | ALL o'clock |
| 7 | Contrast Ratio: | 1000 |
| 8 | Luminance: | 500(TYP) |
| 9 | Module Size: | 105.42(W)*67.07(L)*2.8(T)mm |
| 10 | Active Area: | 95.04(W)*53.86(L)mm |
| 11 | Pixel Pitch: | 0.066(W)*3*0.198(L)mm |
| 12 | Weight: | 39.6(TYP) |
| 13 | Light Source: | 10LEDs White |
| 14 | Interface: | 8080 16BIT/SPI/ 16BIT RGB |
| 15 | Operating Temperature: | -20℃~70℃ |
| 16 | Storage Temperature: | -30℃~80℃ |
YT043B006 Product Details
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 2-3weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
