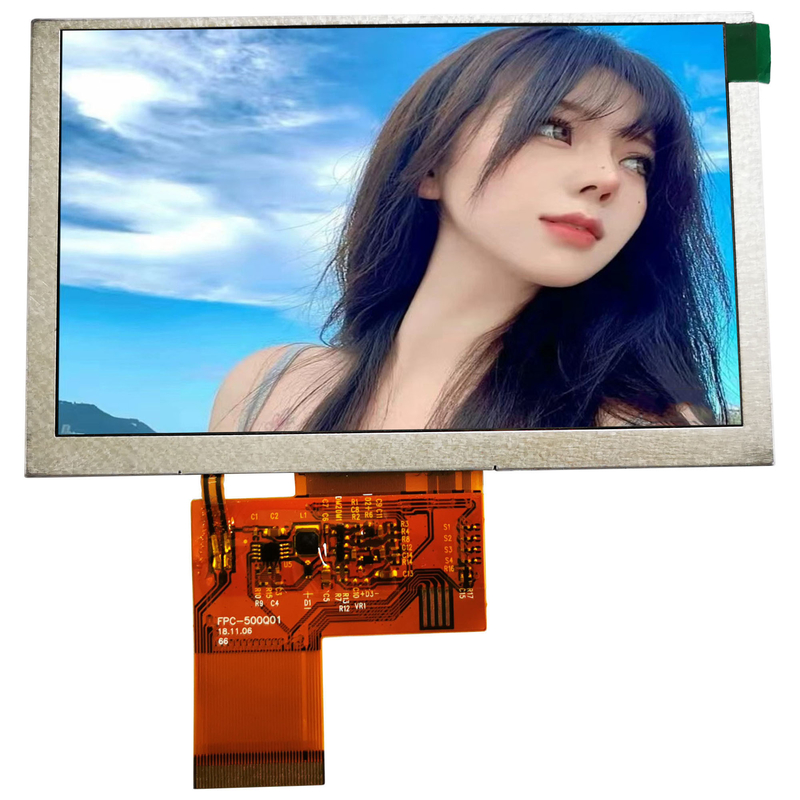

Chimei Innolux 5.0 inch Industrial TFT LCD 40pin RGB Interface 800x480 Resolution

Product Details

Place of Origin: china

Brand Name: Chimei Innolux

Certification: RoHS

Model Number: FPC-500Q01

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 12-13/ PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Get Best Price
Contact Now
Specifications
Highlight:

40pin 7 inch tft lcd touch screen

,

40pin RGB Interface Industrial TFT Display

,

800x480 7 inch tft lcd touch screen

Product Name:
Industrial TFT Display
Size:
5.0 Inch
Pixel Format:
800(RGB)×480 [WVGA] 188PPI
Interface:
Parallel RGB (1 Ch, 24-bit)
Connect Type:
50 Pins FPC
Color Depth:
16.7M 50% NTSC
Technology Type:
A-Si A-Si TFT-LCD, LCM
Pixel Pitch (mm):
0.0642.5(W ) X 0.1790(L)
Pixel Configuration:
R.G.B. Vertical Stripe
Display Mode:
Normally White, Transmissive
Viewing Direction:
6:00 O’clock
Product Name:
Industrial TFT Display
Size:
5.0 Inch
Pixel Format:
800(RGB)×480 [WVGA] 188PPI
Interface:
Parallel RGB (1 Ch, 24-bit)
Connect Type:
50 Pins FPC
Color Depth:
16.7M 50% NTSC
Technology Type:
A-Si A-Si TFT-LCD, LCM
Pixel Pitch (mm):
0.0642.5(W ) X 0.1790(L)
Pixel Configuration:
R.G.B. Vertical Stripe
Display Mode:
Normally White, Transmissive
Viewing Direction:
6:00 O’clock
Description
Chimei Innolux 5.0 inch Industrial TFT LCD 40pin RGB Interface 800x480 Resolution

Chimei Innolux 5.0 inch Industrial TFT LCD 40pin RGB Interface 800x480 Resolution



      The FPC-500Q01  is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chinmei Innodux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .



General Specifications of  Industrial TFT Display

NO. Item Specification Unit Remark
1 LCD Size 5.0 inch -
2 Panel Type TN - -
3 Resolution 800x (RGB) x 480 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K/16M - Note
6 Viewing Direction 6'clock - -
7 Contrast Ratio 500(TYP) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size  120.7(H)×76.3(V) ×3.3(D) mm mm Note
10 Active Area 108(H)×64.8(V) mm mm -
11 Bezel Area

110.6(H)×67.6(V) mm mm -
12 Weight - g -
13 Driver IC - - -
14 CTP Driver IC - - -
15 Driver IC RAM Size RAMLess bit -
16 CTP Interface - -
17 Light Source 27LEDs White - -
18 Interface Parallel RGB (1 ch, 8-bit) , 50 pins FPC - -
19 Operating Temperature -20~70 ºC -
20 Storage Temperature -30~80 ºC -



Outline Dimension (unit: mm)



Chimei Innolux 5.0 inch Industrial TFT LCD 40pin RGB Interface  800x480 Resolution 0





PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
