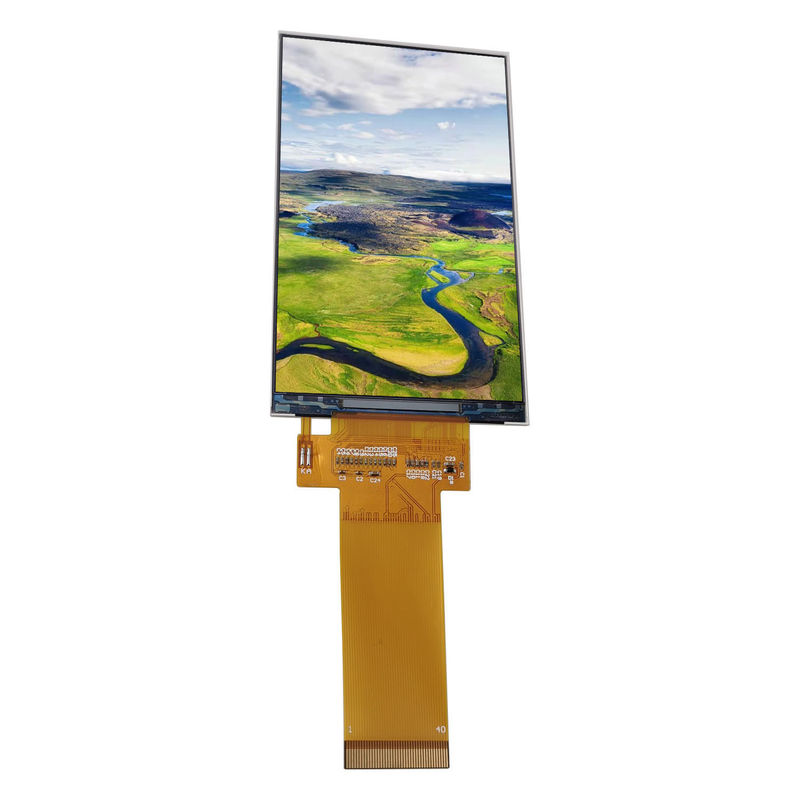

3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display

3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display

  • 3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display
  • 3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display
  • 3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display
  • 3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display
3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display
Product Details:
Place of Origin: Japan
Brand Name: Sharp
Certification: RoHS
Model Number: YT050B009
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 13-15/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1kk/m
Contact Now
Detailed Product Description
Screen Size: 3.8 Inch Display Mode: Normally Black,, Transmissive
Display Colors: 16.7M 70% NTSC Pixel Arrangement: RGB( Vertical Stripe)
Frequency: 60Hz Input Voltage: 2.6/3.0V (Typ.)(IOVDD/AVDD)
Response Time: 35 (Max.)(Tr+Td) Surface: Hard Coating (3H)
Panel Type: CG-Silicon , LCM Best View On: Symmetry
High Light:

3.8'' QVGA TFT Display

,

Parallel QVGA TFT Display

,

Handheld Rugged RGB LCD Display

3.8''qvga tft 240x320 Parallel RGB LCD screen 3.8 inch LCD for MP4,handheld rugged PDA Screen Replacement​



        YT038B004 is a 3.8" diagonal CG-Silicon display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -0 ~ 50°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by ADIA in the following: Portrait type, WLED Backlight . Based on its features, ADIA recommend that this model be applied to Mobile Phone etc.



General Specifications



General Features
Diagonal Size 3.8 inch Type a-Si TFT-LCD, LCM
Pixel Format 480(RGB)×800 , WVGA Configuration RGB Vertical Stripe
Active Area 49.68 × 82.8 (H×V) Outline Dim. 53.58 × 91.3 × 1.7 (H×V×D)
Bezel Opening - Treatment Hard coating (3H)
Luminance 350 cd/m² (Typ.) Contrast Ratio 750 : 1 (Typ.) (TM) 8:1 (Typ.) (RF)
View Direction All o'clock Response Time 30/50 (Typ.)(Tr/Td) ms
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Support Color 16.7M Light Source WLED , 10K hours , No Driver
Weight - Designed For Handheld PDA ,MP4
Frame Rate 60Hz Touch Panel Without
Interface Type Parallel MIPI  , FPC , 40 pins
Power Supply 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS)
Environment Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 50 °C





Outline Dimension (unit: mm)

3.8'' QVGA TFT Display 240x320 Parallel Handheld Rugged RGB LCD Display 0










Related Products



      TFT-LCM(mm)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
1 YT038TT001 320x480 57.30 89.35 3.50MAX P0.8/W0.4 MCU16bit 44 ILI9486L
  YT038TT001-V1 320x480 57.90 89.40 3.4MAX P0.8/W0.4 MCU16bit 44 ILI9486L
  YT038TT001-V2 320x480 57.90 89.40 3.2MAX P0.8/W0.4 MCU16bit 44 ILI9486L
  YT038TT002 320x480 57.90 89.40 3.4MAX P0.8/W0.4 低8bit 52 ILI9486L



Why Choose us:



1.Our company established in 2011, and have a long-term cooperation with many well-known company.

2.We have a professional r&d team and technical support.

3.We have a large number of spot inventory and we can ship delivery asap after payment.

4.We are direct agent of these brands,ordering process simple and delivery time short.

5.All screen ship from our company has long warranty and we have enough technical support can provide after-sales service.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
