HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen

HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen

  • HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
  • HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
  • HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
  • HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
  • HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen
Product Details:
Place of Origin: china
Brand Name: Innolux
Certification: RoHS
Model Number: YT035C004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 15-18/ PCS
Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs
Delivery Time: 20-25
Supply Ability: 10KK/M
Contact Now
Detailed Product Description
Screen Size: 3.5 Inch Model Name: YT035C004
Pixel Format: 320(RGB)×480 HVGA 166PPI Color Depth: 262K 26% NTSC
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Response: 30/50 (Typ.)(Tr/Td) Ms
Treatment: Hard Coating (3H) Arrangement: RGB Vertical Stripe
High Light:

HVGA 166PPI HDMI Display Module


3.5in HDMI Display Module


250cd/M2 Resistive LCD Touch Screen

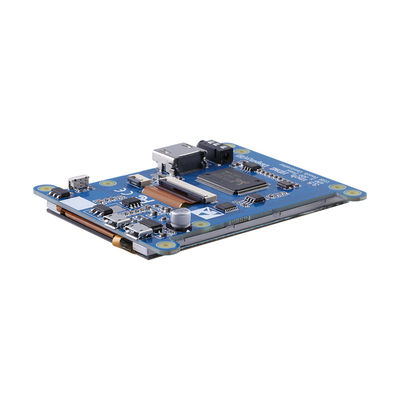

Raspberry Pi display 3.5-inch HDMI display module LCD color screen with resistive touch


1.3.5inch standard display, support HDMI input, refresh rate above 60FPS.
2.Physical resolution 480x320, configurable software resolution up to 1920x1080.
3.Can be used as a raspberry display with touch control function (touch driver required).
4.Can be used as standard HDMI output devices such as computer monitors, TV boxes, PSPs, etc. (without touch function).
5.Compatible and can be directly plugged into all versions of Raspberry motherboard.
6.Support HDMI audio output, backlight brightness can be adjusted.


General Specifications

NO. Item Specification Unit Remark
1 LCD Size 3.5 inch -
2 Manufacturer Innolux - -
3 Resolution 320x (RGB) x 4800 pixel -
4 Screen Type LCM , a-Si TFT-LCD - -
5 Color Depth 262K 26% NTSC - Note
6 Good View at 12:00 o'clock - -
7 Contrast Ratio 700:1 (Typ.) (TM) - -
8 Luminance 250 cd/m² (Typ.) cd/m2 Note
9 Outline Dim  65 × 86.2 × 3.4 (H×V×D) mm Note
10 Active Area 48.96(H)×73.44(V) mm mm -
11 Bezel Area - mm -
12 Weight TBD g -
13 Operating Mode  Transflective TN, Normally White - -
14 Touch Panel  Resistive touch bit -
15 Light Source 6S1P WLED , 5K hours , No Driver - -
16 Interface Type Parallel RGB (1 ch, 6-bit) , 40 pins FPC - -
17 Operating Temperature -20~70°C ºC -
18 Storage Temperature -30~80°C ºC -


Outline Dimension (unit: mm)

HVGA 166PPI 3.5in HDMI Display Module 250cd/m2 Resistive LCD Touch Screen 0



Why Choose us:

1.Our company established in 2011, and have a long-term cooperation with many well-known company.

2.We have a professional r&d team and technical support.

3.We have a large number of spot inventory and we can ship delivery asap after payment.

4.We are direct agent of these brands,ordering process simple and delivery time short.

5.All screen ship from our company has long warranty and we have enough technical support can provide after-sales service.




1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.


2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.


If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.


Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.


4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.



Q1. How can I trust your product quality?


--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.


Q2. Which sizes of LCDs and Touch Panels do you provide?


--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23

Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.

Q4. What is the lead time for Sample order and Mass Production order?
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.

Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.

53.64 × 71.52 (H×V)
