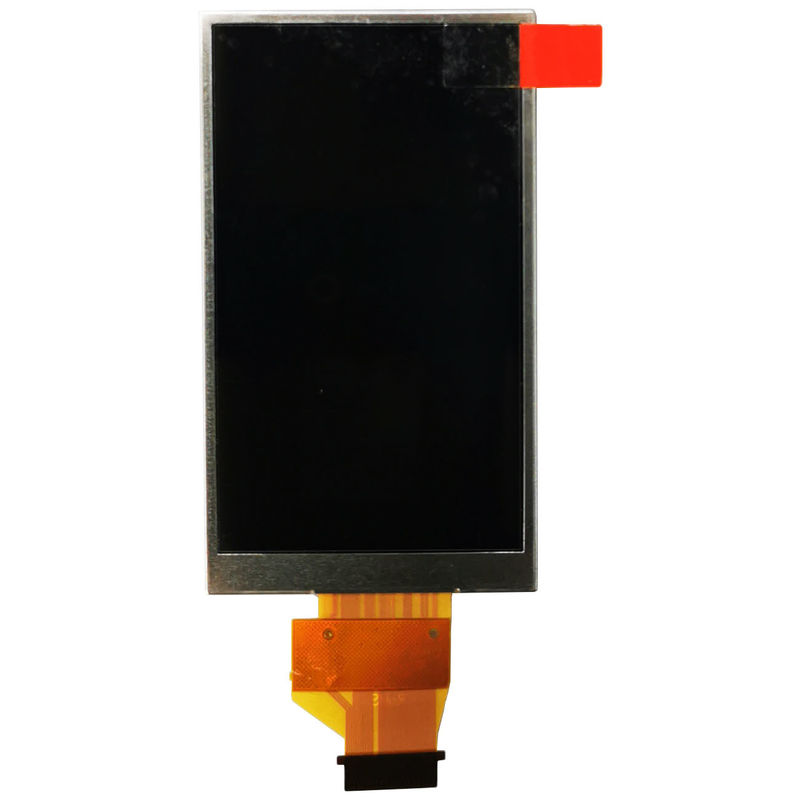

3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface

3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface

  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
  • 3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
3.0 Inch QVGA 135PPI 320x240 TFT Display Module RGB Interface
Product Details:
Place of Origin: China
Brand Name: Tianma
Certification: RoHS
Model Number: TM030CDH51
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 15-17/ PCS
Packaging Details: Corton:544×365×250(mm) Quantity:504 PCS Weight(Kg):11.8±5%KG
Delivery Time: 20-25
Contact Now
Detailed Product Description
Size: 3.0 Inch Pixel Number: 320(RGB)×240 (QVGA) 135PPI
Screen Type: LCM , A-Si TFT-LCD Arrangement: RGB Delta
Color Depth: 16.7M 43% NTSC Work Mode: TN, Normally White, Transmissive
Response: 30 (Typ.)(Tr+Td) Ms Refresh Rate: 60Hz
Voltage Supply: 3.3V (Typ.) Good View At: 12 O'clock
High Light:

320x240 TFT Display Module

,

135PPI TFT Display Module

,

QVGA Tft Lcd Screen

TIANMA 3.0 inch 320x240 TFT Display module tft screen tft lcd RGB Interface​



           The TM030CDH51-00 is a 3.0 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: WLED Backlight, L/R Reverse . Based on its features, Adia recommend that this model be applied to Digital Still Camera, Digital Video Camera etc.



General Specifications

NO. Item Specification Unit Remark
1 LCD Size 3.0 inch -
2 Panel Type a-Si TFT-LCD, LCM - -
3 Display Format 240(RGB)×320 115PPI pixel -
4 Display Mode TN, Normally White, Transmissive - -
5 Support Color 16.7M 43% NTSC - Note
6 Viewing Direction 12:00 o'clock - -
7 Contrast Ratio 500:1 (Typ.) (TM) - -
8 Luminance 250 cd/m² (Typ.) cd/m2 Note
9 Outline Dim 74.92(W)×42.74(H) mm mm Note
10 Active Area 65.52(W)×36.84(H) mm mm -
11 Bezel Area 66.52(W)×37.84(H) mm mm -
12 Weight 18.8g (Typ.) g -
13 Touch Panel Without bit -
14 Light Source WLED [2S1P] , 20K hours , Without Driver - -
15 Interface Type Serial RGB (8-bit) + SPI, CCIR601/656 , 39 pins FPC - -
16 Operating Temperature -20~70°C ºC -
17 Storage Temperature -30 ~ 80 °C ºC -



Outline Dimension (unit: mm)
