MIPI 5.0 Inch TFT Round Display 1080x1080 Dots 50 Pins Connector

Product Details

Place of Origin: china

Brand Name: BOE

Certification: RoHS

Model Number: YT050B002

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 43-45/ PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Get Best Price
Contact Now
Specifications
Highlight:

MIPI TFT Round Display

,

5.0 Inch TFT Round Display

,

1080x1080 Dots Round LCD Display

Size:
5.0 Inch
Resolution:
1080(horizontal)*1080(Vertical)
Interface:
MIPI (4 Data Lanes) ,
Connect Type:
50 Pins Connector
Color Gamut:
65%(Min.) 70%(typ.)
Response Time:
40 (Max.)(Tr+Td)
Frame Rate:
60Hz
Pixel Arrangement:
1pixel 2domain
Power Supply:
1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)
Operating Mode:
ADS, Normally Black, Transmissive
Size:
5.0 Inch
Resolution:
1080(horizontal)*1080(Vertical)
Interface:
MIPI (4 Data Lanes) ,
Connect Type:
50 Pins Connector
Color Gamut:
65%(Min.) 70%(typ.)
Response Time:
40 (Max.)(Tr+Td)
Frame Rate:
60Hz
Pixel Arrangement:
1pixel 2domain
Power Supply:
1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)
Operating Mode:
ADS, Normally Black, Transmissive
Description

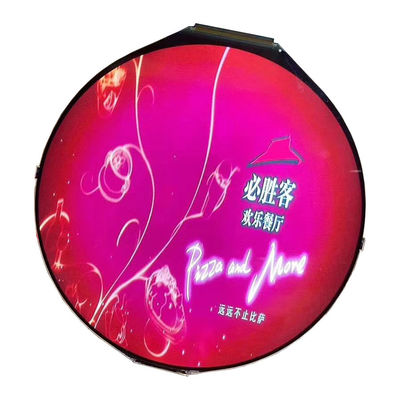

MIPI 5.0 Inch TFT Round Display 1080x1080 Dots 50 Pins Connector

5.0 inch Industrial TFT Display With Round Display 1080x1080 Dots



       YT050B002 It is a 5.0 inch LCD module product with LTPS TFT LCD technology. It is equipped with WLED backlight, no backlight drive and no touch. The typical features of screen library are: sRGB, circular display, landscape mode / portrait mode, white LED backlight. Its operating temperature is -20 ~ 60 ° C and the storage temperature is -30 ~ 75 ° C. This model is suitable for circular display, instrument and household appliances. According to the information mastered by the screen library, the product will be mass produced in Q1 in 2020, and the current production status is in mass production. At present, zs050ymm-n40 has 0 spot information and 0 supplier information on the screen library, and the trading atmosphere is light. The screen library first established parameters for this model on November 03, 2020. According to the product specification of ver pre.0 issued by BOE on may24,2019, zs050ymm-n40 display resolution is 1080 (RGB) x 1080, width to height ratio is 1:1 (width: height), pixels are arranged in RGB vertical strip, and the pixel density calculated by screen library is 215 PPI. The display area size is 127.008 × 127.008 (width × height) mm, and the appearance dimension is 136.531 (width) x 132.208 (height) mm. In the aspect of backlight, this product adopts side in light source with WLED light source, and the service life of light source is 30K hours, without backlight driving. Zs050ymm-n40 adopts Mipi (4 data lands) signal interface, with a total of 50 pins. Terminal connection is adopted. The drive screen voltage is 1.8/5.0 / - 5.0V (typ.) (iovcc/vsp/vsn). Its typical vertical refresh rate FV is 60Hz.


 Features


 0.2t Glass (Single)
High contrast ratio and wide viewing angle
Module Design
RoHS Compliant



Application



It can be used in circular display, instruments, household appliances, etc...



General Specifications





NO. Item Specification Unit Remark
1 LCD Size 5.0  inch diagonal inch -
2 Panel Type LTPS TFT-LCD , LCM - -
3 Resolution 1080x (RGB) x 1080 pixel -
4 Display Mode Normally black,Transmissive - -
5 Display Number of Colors 16.7M 70% NTSC - Note
6 Viewing Direction U/D/L/R free viewing direction - -
7 Contrast Ratio 1300:1 (Typ.) (TM) - -
8 Luminance 400(TYP) cd/m2 Note
9 Module Size 136.531(H)×132.208(V) mm mm Note
10 Active Area 127.008 (H) ×127.008 (V) mm -
11 Pixel Pitch 0.1176 (H) ×0.1176 (V) mm -
12 Weight - g -
13 Driver IC HX8399-C - -
14 Light Source WLED , 30K hours , W/O Driver bit -
15 Light Source 2S4P WLED , 30K hours , Without Driver - -
16 Interface MIPI (4 data lanes) - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -




Outline Dimension (unit: mm)



MIPI 5.0 Inch TFT Round Display 1080x1080 Dots 50 Pins Connector 0


Related Products



      TFT-LCM(mm)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
5 YT050H005-V1 480*800 71 120.4 2.2 ZIF MIPI 25 NT35512
5 YT050H005-V2 480*800 71 120.4 2.1 ZIF MIPI 25 OTM8009A
5 YT050H006 480*800 71 120.4 2.1 ZIF MIPI 25 NT35510H
5 YT050H006-V1 480*800 71 120.4 2.2 ZIF MIPI 25 NT35512
5 YT050H006-V2 480*800 71 120.4 2.1 ZIF MIPI 25 OTM8009A
5 YT050H006-V3 480*800 71 120.4 2.2 ZIF MIPI 25 OTM8018B-C7
5 YT050H007 480*854 66.22 120.55 2.1 welding MIPI 22 NT35510H
5 YT050H008 480*854 66.22 120.55 2.1 welding MIPI 20 NT35510H
5 YT050H009 480*854 66.22 120.55 2.1 ZIF MIPI 25 NT35510H
5 YT050H010 480*854 66.22 120.55 2.1 ZIF MIPI 25 NT35512
5 YT050H010-V1 480*854 66.22 120.55 2.1 ZIF MIPI 25 OTM8009A
5 YT050H011 480*854 66.22 120.55 2.1 welding MCU 16bit 48 NT35510H
5 YT050H011-V1 480*854 66.22 120.55 2.1 welding MCU 16bit 48 NT35510H
5 YT050H011-V2 480*854 66.22 120.55 2.1 welding MCU 16bit 48 NT35510H
5 YT050H012 480*800 71 120.4 2.1 ZIF MIPI 23 NT35510BH
5 YT050H013 480*800 71 120.4 2.2 ZIF MIPI 25 OTM8018B-C7
5 YT050C001 1080*1920             ILI7807D
5 YT050A001 720*1280 65 119.75 1.55 ZIF MIPI 31 NT35590B
5 YT050A002 720*1280 64.9 118.59 1.2 ZIF MIPI 35
