|Place of Origin:||Japan|
|Minimum Order Quantity:||1pcs|
|Price:||USD 12-15/ PCS|
|Interface:||TFT Specific Analog RGB , FPC , 45pins||Connect Type:||0.3mm FPC , 45 Pins|
|Bezel Area:||-||Treatment:||Hard Coating (2H)|
|Surface:||Antiglare||Pixel Configuration:||Vertical Stripe-RGB|
|Pixel Format:||RGB Delta||Frame Rate:||60Hz|
Epson 3.0 Inch Industrial TFT Display,
0.3mm FPC Industrial TFT Display,
WLED Backlight TFT LCD Displays

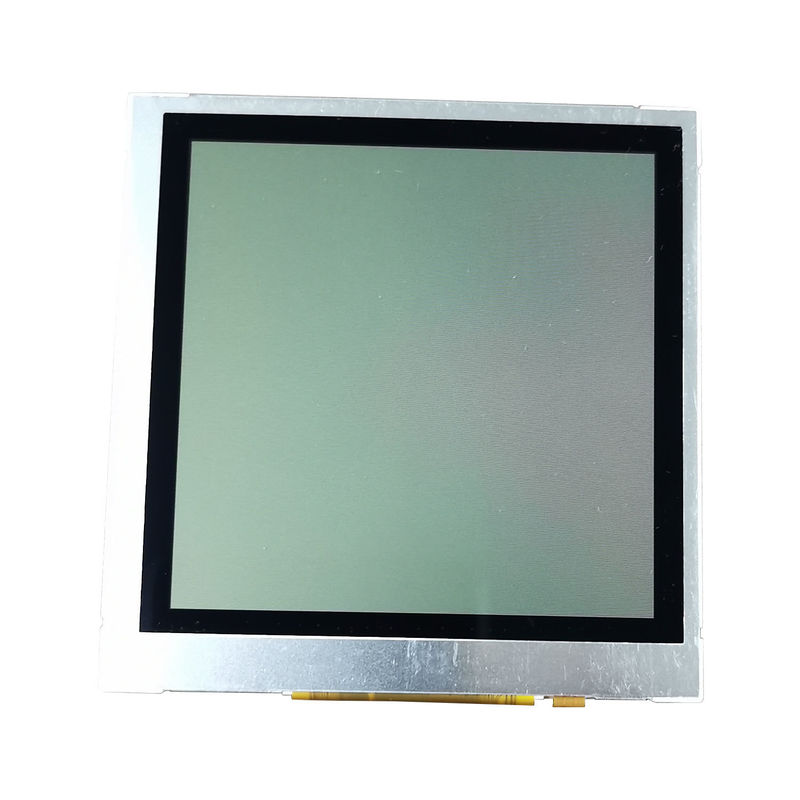

Epson 3.0 inch 320x320 ndustrial TFT Display with WLED backlight
L5F31157P00 is a 3.0-inch a-Si TFT-LCD semi transparent and semi reflective liquid crystal module launched by Epson. It is equipped with WLED backlight, no backlight drive and no touch. The working temperature of the product is - 20 ~ 70 ° C, and the storage temperature is - 30 ~ 0 ° C. Its typical features are summarized as follows: Portrait mode, white LED backlight, up / down, left / right flip display, and bright surface. The resolution ofL5F31157P00 is 320 (RGB) × 320 (QVGA), the aspect ratio is 4:3 (W: H), and the pixels are arranged in RGB vertical strip. Its display area size is 53.4 (W) × 53.4 (H) mm, appearance size is 66.62 (W) × 68.4 (H) mm, visual size is 60.2 (W) × 59.6 (H) mm, hard coating (2H), and net weight of the product is 13.0g. In terms of backlight, this product adopts 5s1p WLED side entry light source without backlight driving. L5f31157p00 adopts CPU signal interface, 45 pins in total, FPC connection, and screen driving voltage is 2.9 / 1.8V (typ.) (VDD / VDDi). Its typical vertical refresh rate FV is 60Hz.
|3||Display Mode||TN, Normally White, TMR||-||-|
|4||Display number of colors||262K 55% NTSC||colors||-|
|5||Viewing Direction||60/60/62/55 (Typ.)(CR≥10)||-||Note 1,2|
|6||Active Area||53.40(W)×53.40(H) mm||mm||-|
|7||Input Voltage||2.8/2.8/2.8V (DVDD/DVDD2/IOVDD)||um||-|
|9||Response Time||35 (Typ.)(Tr/Td)||-||-|
|10||Contrast Ratio||420:1 (Typ.) (TM)||-||-|
|11||Lamp Type||WLED [3S1P] , W/O Driver||-||-|
|12||Dimensional Outline||66.62(W)×68.40(H) ×3.55(D) mm||mm||
|13||Bezel Area||60.20(H)×59.60(V) mm|
Storage Temp.: -30 ~ 70 °C
Operating Temp.: -20 ~ 60 °C
Outline Dimension (unit: mm)
|Size||Model No.||Resolution||H||V||T||Golden finger spacing||Interface||PIN||IC|
HANDLING & CAUTIONS
(1) Cautions when taking out the module
1. Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
1.As the electrostatic discharges may break the LCD module, handle the LCD module with care. Peel a protection sheet off from the LCD panel surface as slowly as possible.
2.As the LCD panel and back - light element are made from fragile glass material, impulse and pressure to the LCD module should be avoided.
3.As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for cleaning.
4.Do not pull the interface connector in or out while the LCD module is operating.
5.Put the module display side down on a flat horizontal plane.
6.Handle connectors and cables with care.
(3) Cautions for the operation
1.When the module is operating, do not lose CLK, ENAB signals. If any one of these signals is lost, the LCD panel would be damaged.
2.Obey the supply voltage sequence. If wrong sequence is applied, the module would be damaged.
(4) Cautions for the atmosphere
1.Dew drop atmosphere should be avoided.
2.Do not store and/or operate the LCD module in a high temperature and/or humidity atmosphere. Storage in an electro- conductive polymer packing pouch and under relatively low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
1. Do not apply fixed pattern data signal to the LCD module at product aging.
2.Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
1.Do not disassemble and/or re-assemble LCD module.
2.Do not re-adjust variable resistor or switch etc.
3.When returning the module for repair or etc., Please pack the module not to be broken.
We recommend to use the original shipping packages.
