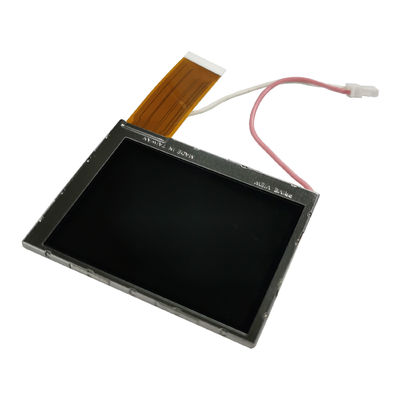

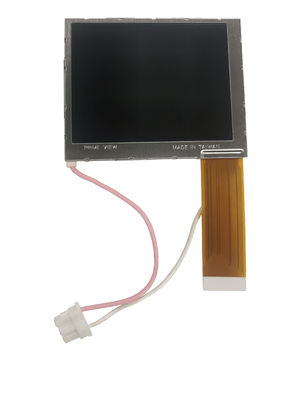

2.5 Inch 480x234 PVI Industrial TFT Display With CCFL Backlight

Product Details

Place of Origin: TAIWAN

Brand Name: PVI

Certification: RoHS

Model Number: PA025XS1

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 12-15/ PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Get Best Price
Contact Now
Specifications
Highlight:

PVI Industrial TFT Display

,

CCFL Backlight Industrial TFT Display

,

2.5 Inch Tft Touch Panel

Size:
2.5 Inch
Resolution:
480×234 114PPI
Interface:
TFT Specific Analog RGB , FPC , 28 Pins
Connect Type:
0.5mm FPC , 28 Pins
Color Depth:
Full Color
Frequency:
-
Surface:
Antiglare
Pixel Configuration:
Vertical Stripe(RGB)
Pixel Format:
RGB Delta
Viewing Direction:
6 O'clock
Size:
2.5 Inch
Resolution:
480×234 114PPI
Interface:
TFT Specific Analog RGB , FPC , 28 Pins
Connect Type:
0.5mm FPC , 28 Pins
Color Depth:
Full Color
Frequency:
-
Surface:
Antiglare
Pixel Configuration:
Vertical Stripe(RGB)
Pixel Format:
RGB Delta
Viewing Direction:
6 O'clock
Description
2.5 Inch 480x234 PVI Industrial TFT Display With CCFL Backlight

PVI 2.5 inch 480x234 ndustrial TFT Display with a CCFL backlight



       PA025XS1 is a 2.5-inch LCD module product from Yuantai (PVI), which adopts a-Si TFT-LCD technology, which is equipped with a CCFL backlight, without backlight driver, and without touch screen. Its typical features are: up/down, left/right flip display, matte surface, Compatible with NTSC or PAL system. Its working temperature is 0 ~ 60°C, and its storage temperature is -20 ~ 70°C. This model is suitable for digital cameras and digital video cameras. According to the product specification of PVI (PVI) with the version number of Ver1.2 released on January 11, 2002, PA025XS1 display resolution is 480×234, aspect ratio is 4:3 (width:height), and the pixels are adopted RGB triangle arrangement. Its display area size is 50.21×37.67 (width×height) mm, the visual size is 54.0×41.47 (width×height) mm, the appearance size is 61.6(width)×49.3(height)×6.1(thickness) mm, and the surface Treated as a matte surface, the net weight of the product is 28.0±3.0g. This product adopts 1 pcs CCFL as the backlight. The service life of the light source is 10K hours, without backlight driver. PA025XS1 uses TFT Specific Analog RGB signal interface, a total of 28 pins, connected by FPC, and the driving voltage is 5.0/5.0/5.0/15.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL).



General Specifications



NO. Item. Specification. Unit. Remark.
1 LCD size 2.5 inch -
2 Resolution 480*(RGB)*234 pixel -
3 Display Mode TN, Normally White, Transmissive - -
4 Display number of colors Full color colors -
5 Viewing Direction 50/50/15/35 (Typ.)(CR≥10) - Note 1,2
6 Active Area 50.21(W)×37.67(H) mm mm -
7 Input Voltage 5.0/5.0/5.0/15.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) um -
8 Weight 28.0±3.0g gram -
9 Response Time 15/25 (Typ.)(Tr/Td) - -
10 Contrast Ratio 150:1 (Typ.) (TM)   - -
11 Lamp Type 1 pcs CCFL , 10K hours , Without Driver - -
12 Dimensional Outline 61.6(W)×49.3(H) ×6.1(D) mm mm









13 Environment

Operating Temp.: 0 ~ 60 °C ;

Storage Temp.: -20 ~ 70 °C





Outline Dimension (unit: mm)



2.5 Inch 480x234 PVI Industrial TFT Display With CCFL Backlight 0











Related Products



      TFT-LCM(mm)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
2.4 YT024M049 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU8bit 44 HX8347-D
2.4 YT024T050 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bitHIGH 37 HX8347-G(T)
2.4 YT024TT051 240x320 42.72 60.26 3.40 P0.8/W0.4 MCU8bitHIGH 35 HX8347-G(T)
2.4 YT024T052 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024HT053 240x320 42.72 60.26 3.20 P1.0/W0.5 MCU8bit 31 HX8347H
2.4 YT024MT054 240x320 42.72 60.26 3.20 P0.6/W0.3 MCU8bit 39 HX8347-D
2.4 YT024MT054-V1 240x320 42.72 60.26 3.20 P0.6/W0.3 MCU8bit 39 HX8347-D
2.4 YT024HT055 240x320 42.72 60.26 3.20 P1.0/W0.5 SPISPI 18 ILI9325C
2.4 YT024HT055-V1 240x320 42.72 60.26 3.20 P1.0/W0.5 SPISPI 18 HX8347-G(T)
2.4 YT024H055-V2 240x320 42.72 60.26 2.25 P1.0/W0.5 SPISPI 18 HX8347-G(T)
2.4 YT024B055 240x320 42.72 60.26 2.25 P1.0/W0.5 SPISPI 18 ILI9341
2.4 YT024T056 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T056-V1 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T056-V2 240x320 42.72 60.26 1.80 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T056-V3 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 HX8347-G(T)
2.4 YT024T056-V4 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 NV3029
2.4 YT024T056-V5 240x320 42.72 60.26 2.30 P0.8/W0.4 MCU16bit 37 HX8347I
2.4 YT024TT056-V1 240x320 42.72 60.26 3.00 P0.8/W0.4 MCU8bitHIGH 37 HX8347-G(T)
2.4 YT024T057 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bitHIGH 37 HX8347-G(T)
2.4 YT024H057 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bitHIGH 37 ILI9341
2.4 YT024MT058 240x320 42.72 60.26 3.30 P0.8/W0.4   44 HX8347-D
2.4 YT024M059 240x320 42.72 60.26 2.20 P0.8/W0.4 8/16/9/18 39 HX8347-D
2.4 YT024T060 240x320 42.72 60.26 2.25 P0.8/W0.4 MCU8bit 37 HX8347-G(T)







HANDLING & CAUTIONS

(1) Cautions when taking out the module

1. Pick the pouch only, when taking out module from a shipping package.



(2) Cautions for handling the module

1.As the electrostatic discharges may break the LCD module, handle the LCD module with care. Peel a protection sheet off from the LCD panel surface as slowly as possible.

2.As the LCD panel and back - light element are made from fragile glass material, impulse and pressure to the LCD module should be avoided.

3.As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for cleaning.

4.Do not pull the interface connector in or out while the LCD module is operating.

5.Put the module display side down on a flat horizontal plane.

6.Handle connectors and cables with care.



(3) Cautions for the operation

1.When the module is operating, do not lose CLK, ENAB signals. If any one of these signals is lost, the LCD panel would be damaged.

2.Obey the supply voltage sequence. If wrong sequence is applied, the module would be damaged.



(4) Cautions for the atmosphere

1.Dew drop atmosphere should be avoided.

2.Do not store and/or operate the LCD module in a high temperature and/or humidity atmosphere. Storage in an electro- conductive polymer packing pouch and under relatively low temperature atmosphere is recommended.



(5) Cautions for the module characteristics

1. Do not apply fixed pattern data signal to the LCD module at product aging.

2.Applying fixed pattern for a long time may cause image sticking.



(6) Other cautions

1.Do not disassemble and/or re-assemble LCD module.

2.Do not re-adjust variable resistor or switch etc.

3.When returning the module for repair or etc., Please pack the module not to be broken.

We recommend to use the original shipping packages.
