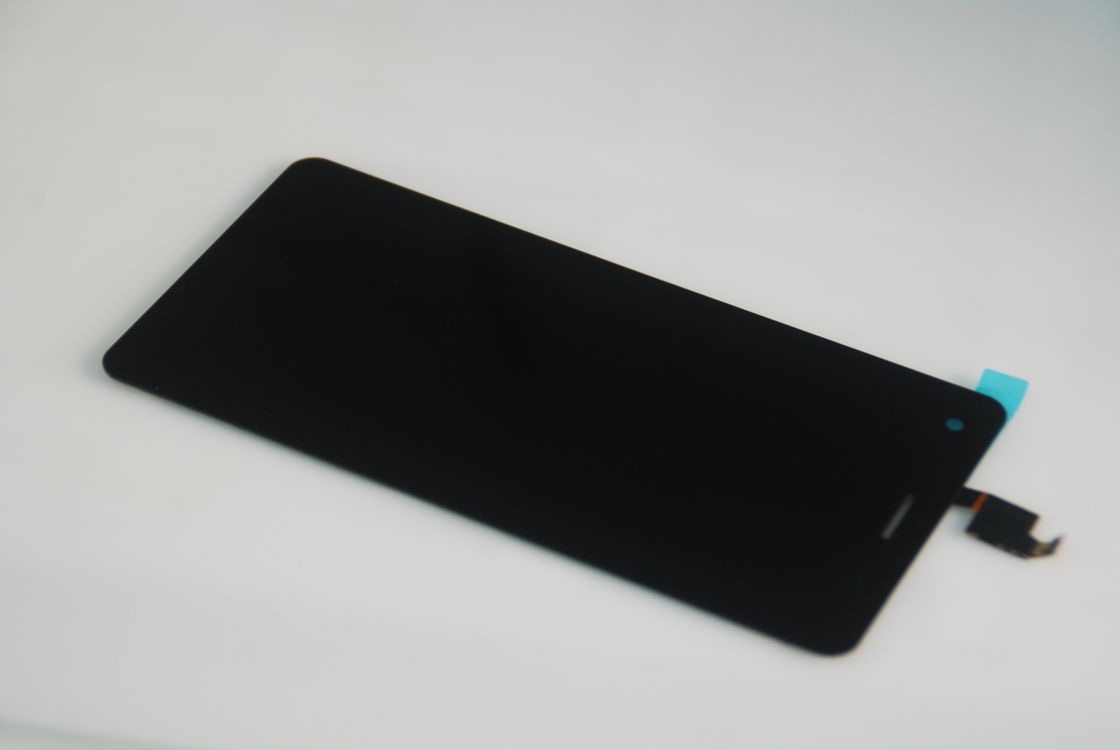

5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC

5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC

  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
  • 5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC
Product Details:
Place of Origin: china
Brand Name: IVO
Certification: RoHS
Model Number: YT050B004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 13-15/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Size: 5.0inch Resolution: 720(horizontal)*1280(Vertical)
Interface: MIPI DSI Connect Type: 0.5mm Pitch FPC
Color Depth: 16.7M Technology Type: Active Matrix A-Si
Pixel Pitch (mm): 0.0807 X 0.0807 Pixel Configuration: RGB( Vertical Stripe)
Display Mode: Normally Black, Transmissive Viewing Direction: All O'clock
High Light:

ILI9881C IC tft display screen

,

720x1280 tft display screen

,

5.5" 720x1280 TFT LCD Touch Screen

5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC



       It is a 5.5-inch TFT display module with capacitive touch screen (G + F + F structure), which is mainly used in smart 4G mobile phones.



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 5.0 inch diagonal inch -
2 Panel Type IPS - -
3 Resolution 720x (RGB) x 1280 pixel -
4 Display Mode Normally black,Transmissive - -
5 Display Number of Colors 16.7M - Note
6 Viewing Direction ALL View - -
7 Contrast Ratio 900(min) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 64.95(W) ×118.1( L) ×1.5(T) mm Note
10 Active Area 62.10( W) × 110.40(L) mm -
11 Pixel Pitch 0.0807(W ) x 0.0807(L) mm -
12 Weight - g -
13 Driver IC ILI9881C - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 12LEDs White - -
16 Interface MIPI - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -



Outline Dimension (unit: mm)


5.5" 720x1280 TFT LCD Touch Screen With ILI9881C IC 0



Related Products



      TFT-LCM
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
5.0inch YT050H005-V1 480*800 71 120.4 2.2 ZIF MIPI 25 NT35512
5.0inch YT050H005-V2 480*800 71 120.4 2.1 ZIF MIPI 25 OTM8009A
5.0inch YT050H006 480*800 71 120.4 2.1 ZIF MIPI 25 NT35510H
5.0inch YT050H006-V1 480*800 71 120.4 2.2 ZIF MIPI 25 NT35512
5.0inch YT050H006-V2 480*800 71 120.4 2.1 ZIF MIPI 25 OTM8009A
5.0inch YT050H006-V3 480*800 71 120.4 2.2 ZIF MIPI 25 OTM8018B-C7
5.0inch YT050H007 480*854 66.22 120.55 2.1 ZIF MIPI 22 NT35510H
5.0inch YT050H008 480*854 66.22 120.55 2.1 ZIF MIPI 20 NT35510H
5.0inch YT050H009 480*854 66.22 120.55 2.1 ZIF MIPI 25 NT35510H
5.0inch YT050H010 480*854 66.22 120.55 2.1 ZIF MIPI 25 NT35512
5.0inch YT050H010-V1 480*854 66.22 120.55 2.1 ZIF MIPI 25 OTM8009A
5.0inch YT050H011 480*854 66.22 120.55 2.1 ZIF MCU 16bit 48 NT35510H
5.0inch YT050H011-V1 480*854 66.22 120.55 2.1 ZIF MCU 16bit 48 NT35510H
5.0inch YT050H011-V2 480*854 66.22 120.55 2.1 ZIF MCU 16bit 48 NT35510H
5.0inch YT050H012 480*800 71 120.4 2.1 ZIF MIPI 23 NT35510BH
5.0inch YT050H013 480*800 71 120.4 2.2 ZIF MIPI 25 OTM8018B-C7
5.0inch YT050C001 1080*1920       ZIF     ILI7807D
5.0inch YT050A001 720*1280 65 119.75 1.55 ZIF MIPI 31 NT35590B
5.0inch YT050A002 720*1280 64.9 118.59 1.2 ZIF MIPI 35
5.2inch YT052K001 480*800 74 125.1 2.4 P0.6/W0.3 16BIT 45 ILI9805
5.2inch YT052K002 480*800 74 125.1 2.4 P0.6/W0.3 RGB/16 45 ILI9805
5.2inch YT052K003 480*800 74 125.1 2.4 P0.6/W0.3 16BIT 45 ILI9805
5.2inch YT052K004 480*800 74 125.1 2.4 P0.6/W0.3 RGB/16BIT 39 ILI9805
5.2inch YT052K005 480*800 74 125.1 2.4 P0.6/W0.3 RGB 51 ILI9805
5.2inch YT052K006 480*800 74 125.1 2.4 P0.6/W0.3 RGB24BIT 39 ILI9805
5.2inch YT052K007 480*800 74 125.1 2.4 P0.6/W0.3 MIPI 25 ILI9805
5.2inch YT052K008 480*800 74 125.1 2.4 ZIF 24BIT 45 ILI9805
5.2inch YT052K009 480*800 74 125.1 2.4 ZIF RGB 51 ILI9805



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
