800x480 7inch TFT LCD Touch Screen With RGB Interface

800x480 7inch TFT LCD Touch Screen With RGB Interface

  • 800x480 7inch TFT LCD Touch Screen With RGB Interface
  • 800x480 7inch TFT LCD Touch Screen With RGB Interface
  • 800x480 7inch TFT LCD Touch Screen With RGB Interface
800x480 7inch TFT LCD Touch Screen With RGB Interface
Product Details:
Place of Origin: china
Brand Name: BOE
Certification: RoHS
Model Number: YT070BT001
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: USD 13-15/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Size: 7.0inch Resolution: 800(horizontal)*480(Vertical)
Interface: 24-Bit RGB Interface Type: TTL
Color Depth: 262K/16.7M Technology Type: A-Si TFT Active Matrix
Pixel Pitch (mm): 0.0642.5(W ) X 0.1790(L) Response Time(Tr+rf)): 25ms(typ)
Display Mode: Normally White, Transmissive Viewing Direction: 12:00 O’clock
High Light:

800x480 7inch tft lcd touch screen

,

800x480 7 inch tft display

,

RGB Interface 7 inch tft display

800x480 7inch TFT LCD Touch Screen With RGB Interface

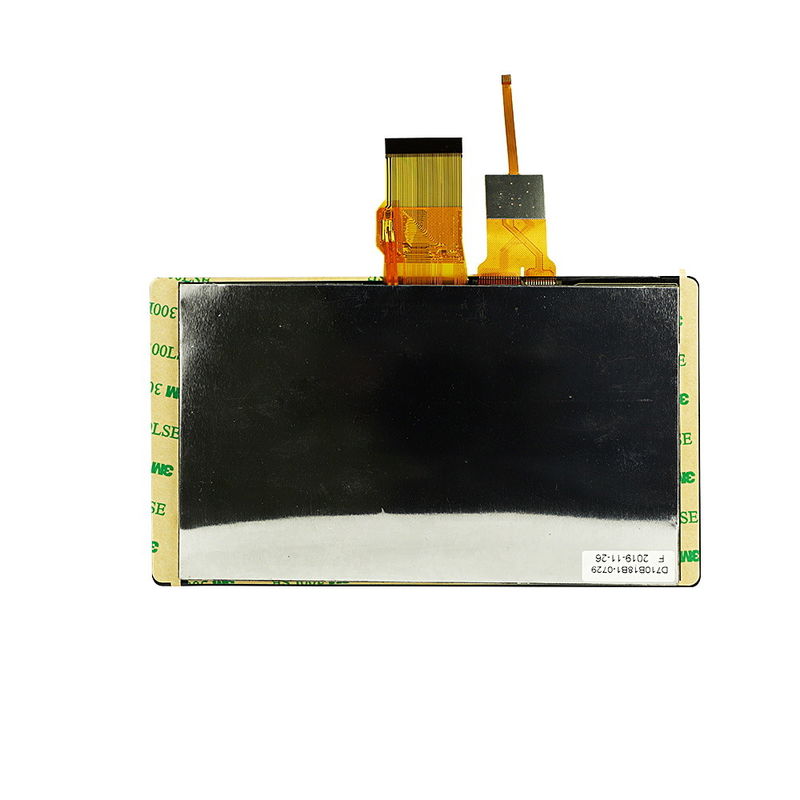

      YT070BT001 Display model 7" is a color active matrix thin film transistor (TFT) liquid crystal display without polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode.
        This TFT LCD has a 7-inch diagonally measured active display area with 800 x 480 dot (800 vertical by 480 horizontal pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.  Capacitve Touch screen with resistance



Features



7.0 inch  TFT-LCD Panel

Supported WVGA Resolution

Compatible with RoHS Standard

COB+FPC+BL





Application



Adia recommend that this model be applied to Automotive Display Navigator, flat panel display, POS, smart home etc...



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 7 inch -
2 Panel Type TN - -
3 Resolution 800x (RGB) x 480 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K/16.7M - Note
6 Viewing Direction 12:00 O'clock - -
7 Contrast Ratio 500(TYP) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 164.9(W) ×100( L) ×3.4(T) mm Note
10 Active Area 154.08( W) × 85.92(L) mm -
11 Pixel Pitch 0.0642.5(W ) x 0.1790(L) mm -
12 Weight - g -
13 Driver IC EK73002A - -
14 CTP Driver IC GT911 - -
15 Driver IC RAM Size RAMLess bit -
16 CTP Interface IIC -
17 Light Source 27LEDs White - -
18 Interface RGB - -
19 Operating Temperature -20~70 ºC -
20 Storage Temperature -30~80 ºC -





Outline Dimension (unit: mm)


800x480 7inch TFT LCD Touch Screen With RGB Interface 0



Exclusive features:


1. According to customer requirements custom structure, touch screen, FPC, configuration.
2. Accept small batch production, a full set of technical support services.
