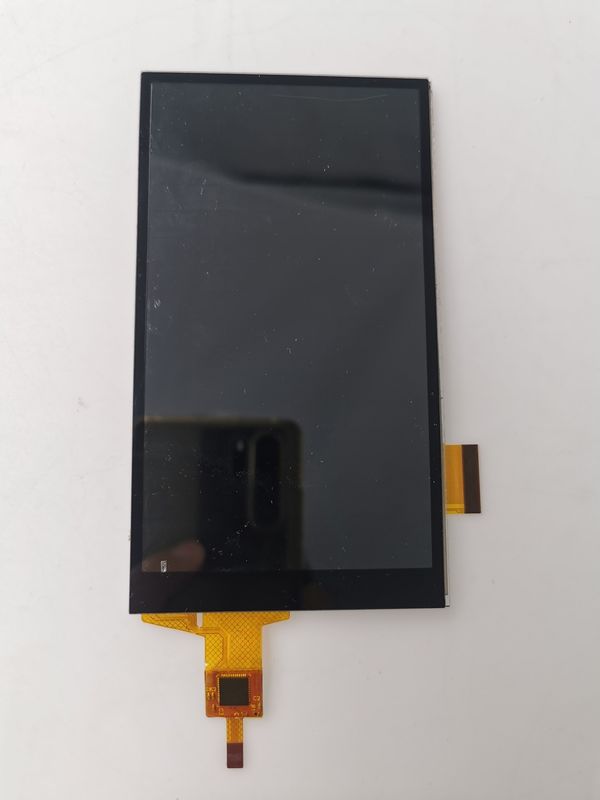

ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen

ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen

  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
  • ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen
Product Details:
Place of Origin: china
Brand Name: IVO
Certification: RoHS
Model Number: YT050I003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: USD 13-15/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Contact Now
Detailed Product Description
Size: 5.0inch Resolution: 480(horizontal)*854(Vertical)
Interface: RGB888 MCU8/16/24BIT Display Type: Transmissive
Transmittance: 4.8% Pixel Pitch (mm): 0.12825x0.12825
Pixel Arrangement: RGB Stripe Display Mode: IPS, Normally Black
Viewing Direction: All
High Light:

480*854 lcd tft display panel

,

mipi interface 5 inch lcd touch screen

,

ILI9806G IC 5 inch lcd touch screen

ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen



      The YT050I003 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) Single Chip and Sub Chips that uses amorphous silicon TFT as a switching device. This TFT LCD panel has a 4.95 inch diagonally measured active display area with FWVGA resolution (480 horizontal by 854 vertical pixels array).



Features


1.0.2t Glass:4.95 TFT-LCD Panel
2.Supported FWVGA Resolution
3.Low Power consumption, High trans, High CR, Wide view angle
4.Compatible with RoHS Standard

5.COG+BL+FPC+CTP



Application



This product is used in mobile phones, handheld devices, POSS machines, police enforcement instruments, military handheld, automotive electronics, industrial equipment, medical equipment, smart home and other industries etc...



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 5.0 inch diagonal inch -
2 Panel Type IPS - -
3 Resolution 480x (RGB) x 854 pixel -
4 Display Mode Normally black,Transmissive - -
5 Display Number of Colors 16.7M - Note
6 Viewing Direction ALL View - -
7 Contrast Ratio 900(min) - -
8 Luminance 350(TYP) cd/m2 Note
9 Module Size 67.00(W) ×120.20( L) ×2.0(T) mm Note
10 Active Area 61.56( W) × 110.7953(L) mm -
11 Pixel Pitch 0.12825x0.12825 mm -
12 Weight - g -
13 Driver IC ILI9806G - -
14 CTP Driver IC GT911(TX26*RX14)) bit -
15 Light Source 12LEDs White - -
16 LCM Interface RGB888 MCU8/16/24BIT - -
17 CTP Interface  IIC
18 Operating Temperature -20~70 ºC -
19 Storage Temperature -30~80 ºC -







Outline Dimension (unit: mm)



ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen 0



Exclusive features:


1. According to customer requirements custom structure, touch screen, FPC, configuration.
2. Accept small batch production, a full set of technical support services.


Related Products



      TFT-LCM(mm)
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
5 YT050H005-V1 480*800 71 120.4 2.2 Plug in MIPI 25 NT35512
5 YT050H005-V2 480*800 71 120.4 2.1 Plug in MIPI 25 OTM8009A
5 YT050H006 480*800 71 120.4 2.1 Plug in MIPI 25 NT35510H
5 YT050H006-V1 480*800 71 120.4 2.2 Plug in MIPI 25 NT35512
5 YT050H006-V2 480*800 71 120.4 2.1 Plug in MIPI 25 OTM8009A
5 YT050H006-V3 480*800 71 120.4 2.2 Plug in MIPI 25 OTM8018B-C7
5 YT050H007 480*854 66.22 120.55 2.1 Plug in MIPI 22 NT35510H
5 YT050H008 480*854 66.22 120.55 2.1 Plug in MIPI 20 NT35510H
5 YT050H009 480*854 66.22 120.55 2.1 Plug in MIPI 25 NT35510H
5 YT050H010 480*854 66.22 120.55 2.1 Plug in MIPI 25 NT35512
5 YT050H010-V1 480*854 66.22 120.55 2.1 Plug in MIPI 25 OTM8009A
5 YT050H011 480*854 66.22 120.55 2.1 Plug in MCU 16bit 48 NT35510H
5 YT050H011-V1 480*854 66.22 120.55 2.1 Plug in MCU 16bit 48 NT35510H
5 YT050H011-V2 480*854 66.22 120.55 2.1 Plug in MCU 16bit 48 NT35510H
5 YT050H012 480*800 71 120.4 2.1 Plug in MIPI 23 NT35510BH
5 YT050H013 480*800 71 120.4 2.2 Plug in MIPI 25 OTM8018B-C7
5 YT050C001 1080*1920       Plug in     ILI7807D
5 YT050A001 720*1280 65 119.75 1.55 Plug in MIPI 31 NT35590B
5 YT050A002 720*1280 64.9 118.59 1.2 Plug in MIPI 35
5.2 YT052K009-V2 480*800 74 125.1 2.4 ZIF MCU 51 ILI9805
5.2 YT052K010 480*800 74 125.1 2.4 ZIF 24 BIT 40 ILI9805
5.2 YT052K011 480*800 74 125.1 2.4 ZIF MIPI 23 ILI9805
5.2 YT052K012 480*800 74 125.1 2.4 ZIF MIPI 25 ILI9805
5.2 YT052K013 480*800 74 125.1 2.4 P0.6/W0.3 16BIT 45 ILI9805
5.2 YT052K014 480*800 74 125.1 2.4 P0.6/W0.3 24BIT/RGB 45 ILI9805
5.2 YT052K015 480*800 74 125.1 2.4 BTB MIPI 24 ILI9805
5.2 YT052K016 480*800 74 125.1 2.4 P0.6/W0.3 MIPI 25 ILI9805
5 YT055C005 480*800 70.34 128.11 1.22 B TO B MIPI 40 ILI7807D
5 YT055H005-V1 480*800 70.34 128.11 1.22 B TO B MIPI 30 R63350
5 YT050A001 480*272 120.4 71.4 2.65 P0.6/W0.3 RGB 51 NT35510
5 YT050H002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 HX8264-D03&HX8678-B00
5 YT050C002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 OTA7001A_C &OTA9960A
5 YT050H003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6480H2
5 YT050C003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6482C
5 YT050H004 800*480 119 74.9 2.8max P0.5/W0.35 RGB 40 HX8264-D03&HX8678-B00



Why Choose us:



1.Our company established in 2011, and have a long-term cooperation with many well-known company

2.We have a professional r&d team and technical support

3.We have a large number of spot inventory and we can ship delivery asap after payment

4.We are direct agent of these brands,ordering process simple and delivery time short

5.All screen ship from our company has long warranty and we have enough technical support can provide

after-sales service



FAQ



1. How to understand Stock for Sale.


Answer:According to the company regulation, each standard product must be kept the stock of 1000pcs.

When the stock is less than 1000 pcs, we will put it into production at once instead of waiting for the orders. When the stock are more than 5000 pcs, the production must be stopped.

Appropriate stock is a very good support for the customer’s sampling and trial production demand.

The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality,
what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.

The appropriate stock is also a good way to reduce the cost. In busy seasons, we can produce the orders, while in free seasons, we can produce the stock. By this way, the labor source is maximumly used. At the same time, in free season, the materials can be bought at lower price.

2. How does Adia do for Never End of Supply?

Answer:EOL(End of Life) is largely because of end of life of the raw materials

When the EOL of the raw materials such as drivers and LCD panels happens, we can place a very large order with the supplier which may cover the consumption of one or two year. This large order is enough for the supplier to restart the production.

On the other hand, we can develop the replacement product which is mechanically and functionally the same as the previous one. For
the customer, only software will be changed a little while the hardware will remain the same.



Adia has built comprehensive relationships with the supplier samsun as LG, Hannstar and BOE and we can get the EOL products through our special channel to guarantee the continuous supply.

In LCD industry, due to the quick update of the technology, never end of supply is hard, but so far, Adia has never disappointed any customer.

Once the customer chooses us, we will offer the unchanged service till the end. Long-time relationship and mutual trust are our target and we hate well beginning but bad ending.

3. How to understand No MOQ?

Answer:The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.

In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.

However, if the quantity is small, the price will be higher.

4. How to understand in Full Range.
Answer:In full range means that our products are in great variety. We have what other manufacturers have, and we have what they don’t have. The customer is easy to find what they want in our product group. Like Walmart instead of Seven Eleven, all kinds of the products are placed before us and it is easy to attract the customers to come, so we like going shopping in Walmart, but we don’t like to go to Seven Eleven.


5. How does Adia guarantee the quality?

Answer: Adia has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.

Adia has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.

The Adia is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and aftersales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. Adia is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.

6. Why are Adia’s products higher in price?

Answer: The LCD quality has three standards: 1.consuming standards.2.Industrial standards 3.Automotive standards. Automotive standards are the highest grade which require the strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject. To follow automotive standards, we have to select the best raw materials, and bring in the most expensive equipment and very tough management, so our cost is higher.

In fact, our higher price is only manifested in samples. If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.

7. How long can we expect the samples?

Answer: Immediately in most of the cases.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



Company profile



        Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).

       It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.

       The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.







ILI9806G IC 480*854 MIPI Interface 5 Inch LCD Touch Screen 1
