|Place of Origin:||china|
|Minimum Order Quantity:||1000pcs|
|Price:||USD 2.5-2.8/ PCS|
|Display Model:||TRANSMISSIVE And POSITIVE||Technology Type:||FSTN Mode LCD|
|Display Format:||128X64 DOTS MATRIX||Input Data:||8080 Parallel Data Input From MPU|
|Multiplexing Ration:||1/65Duty , 1/9 Bias||Viewing Direction:||12:00 O’clock|
|DRIVER:||ST7567||BACKLIGHT:||WHITE Vf=3.1±0.30V If≤30mA|
ST7567 lcd graphic 128x64,
RoHS oled graphic display module,
ST7567 oled graphic display module
Blue Monochrome lcd Display 12864 graphic lcd module For camera lcd screens

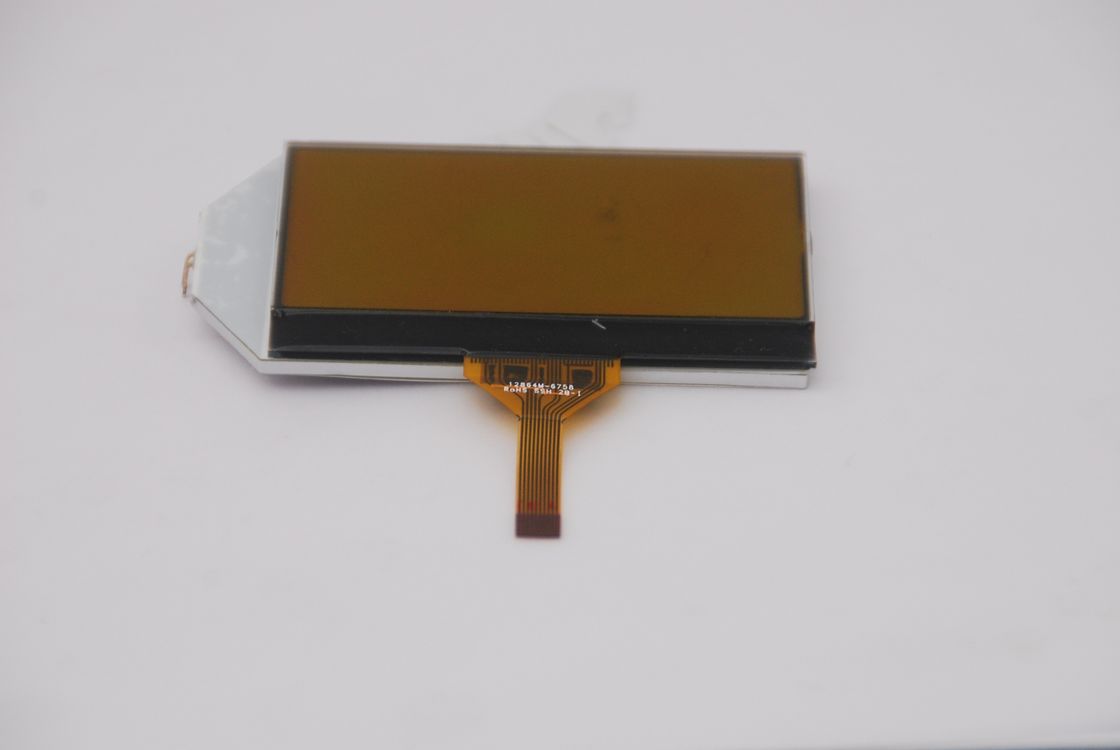

The STR-S12864L-02 is a 128*64 DOTS MATRIX LCD module which is fabricated by low power COMS technology. It has an FSTN panel composed of 128 segments and 64 commons. The LCM can be easily accessed by microcontroller via serial data interface.
|1||LCD Display Mode||FSTN/POSITIVE/TRANSSIVE||-||-|
|2||Viewing Direction||12:00 O'clock||pixel||-|
|3||Driving Method||1/65 Duty, 1/9 Bias||-||Note|
|4||Drive Method||1/128Duty, 1/12Bias, VLCD=8.7V±0.2V, VDD=3.0V.||-||-|
|5||Resolution||128x (RGB) x 64||-||-|
|6||Module Size||34.2(W) ×31( L) ×3.0(T)||mm||Note|
|10||Active Area||28.78( W) × 20.97(L)||mm||-|
|11||Pixel Pitch||0.205(W ) x 0.308(L)||mm||-|
|14||Driver IC RAM Size||RAMLess||bit||-|
|15||Light Source||1LEDs White||-||-|
|16||Interface||Serial data input from MPU||-||-|
