|Place of Origin:||china|
|Minimum Order Quantity:||1000pcs|
|Price:||USD 1.5-2.2/ PCS|
|Display Size:||1602||Display Model:||TRANSMISSIVE And POSITIVE|
|Color:||Yellow-green, Orange, White, Red, Green, Blue For Choose||Pins:||16P|

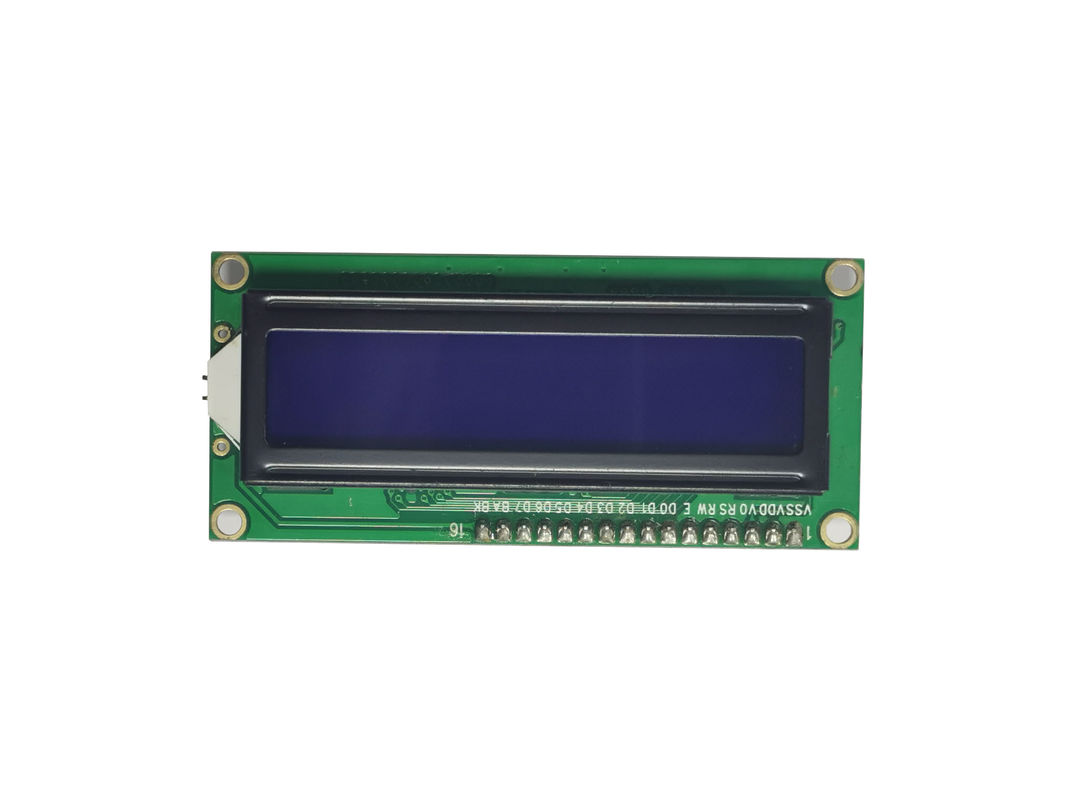

SPLC780 16 PIN LCD Character Module,
16 PIN 16x2 character lcd display,
rgb interface 16x2 lcd display
mono lcd module 16X2 , stn character 1602a lcd with YG/Blue color
The YS1602A is a 16*2 DOTS MATRIX LCD module which is fabricated by low power COMS technology. It has an STN panel composed of 16 segments and 2 commons. The LCM can be easily accessed by microcontroller via serial data interface.
|1||LCD Display Mode||STN-LCD Yellow-green, orange, white, red,green, blue for choose||-||-|
|2||Viewing Direction||6:00 O'clock||pixel||-|
|3||Driving Method||1/16 Duty, 1/5 Bias||-||Note|
|4||Drive Method||1/128Duty, 1/12Bias, VLCD=12.5±0.2V, VDD=3.0V.||-||-|
|5||Resolution||16x (RGB) x 2||-||-|
|6||Module Size||80.0(W) ×36.0( L) ×11.5(T)||mm||Note|
|14||Driver IC Package||COB||bit||-|
|15||Light Source||1LEDs White||-||-|
|16||Interface||Serial data input from MPU||-||-|
