| Brand Name: | CPT |
| Model Number: | YT050B009 |
| MOQ: | 10pcs |
| Price: | USD 13-15/ PCS |
| Packaging Details: | 50cm*50cm*60cm |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

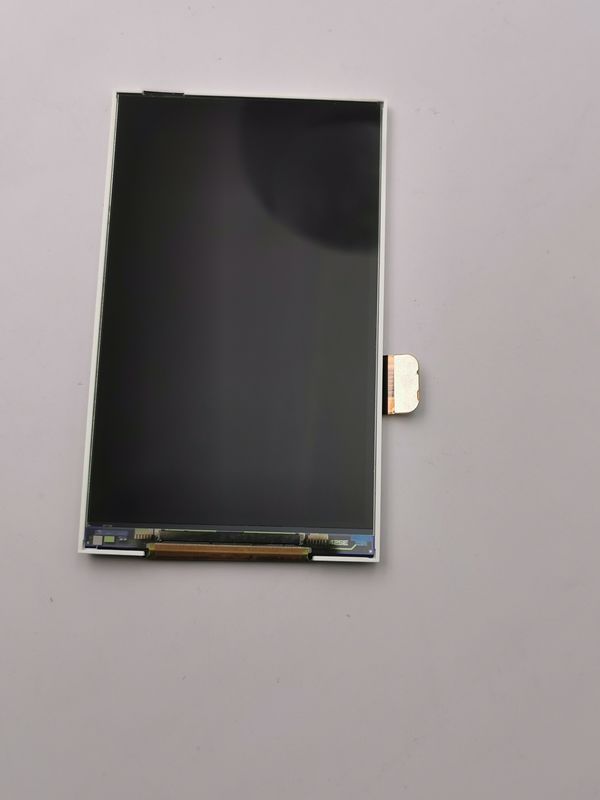

3.7 inch LCD Display 480*800 LCD Module with Mipi Dsi Interface St7701s Driver IC
The YT038B001 is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal white. This TFT-LCD Cell has a 3.97 inch diagonally measured active area with WVGA resolutions (480 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M colors.
General Specifications
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 3.8 inch diagonal | inch | - |
| 2 | Panel Type | IPS | - | - |
| 3 | Resolution | 480x (RGB) x 800 | pixel | - |
| 4 | Display Mode | Normally black,Transmissive | - | - |
| 5 | Display Number of Colors | 16.7M | - | Note |
| 6 | Viewing Direction | ALL View | - | - |
| 7 | Contrast Ratio | 900(min) | - | - |
| 8 | Luminance | 300(TYP) | cd/m2 | Note |
| 9 | Module Size | 57.14(W) ×96.85( L) ×2.15(T) | mm | Note |
| 10 | Active Area | 51.84( W) × 86.40(L) | mm | - |
| 11 | Pixel Pitch | 0.36(W ) x 0.108(L) | mm | - |
| 12 | Weight | - | g | - |
| 13 | Driver IC | ST7701S | - | - |
| 14 | Driver IC RAM Size | RAMLess | bit | - |
| 15 | Light Source | 8 LEDs White | - | - |
| 16 | Interface | MIPI | - | - |
| 17 | Operating Temperature | -20~70 | ºC | - |
| 18 | Storage Temperature | -30~80 | ºC | - |
