|Place of Origin:||china|
|Minimum Order Quantity:||1000pcs|
|Price:||USD 3.1-3.8/ PCS|
|Display Model:||TRANSMISSIVE And POSITIVE||Technology Type:||FSTN Mode LCD|
|Display Format:||128X128 DOTS MATRIX||Input Data:||8080 Parallel Data Input From MPU|
|Multiplexing Ration:||1/128Duty , 1/12Bias||Viewing Direction:||6 O’clock|
|DRIVER:||ST7571||BACKLIGHT:||WHITE Vf=3.1±0.30V If≤30mA|
SPI interface 128x128 lcd display,
ST7571 driver 128x128 lcd display,
ST7571 driver transflective lcd display
stn fstn lcd 128X128 Stn LCD FSTN LCD Transflective LCD Positive LCD Screen LCD Display LCD Module

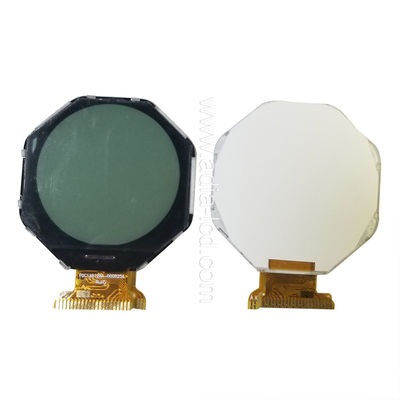

The YS128128-25 is a 128*128 DOTS MATRIX LCD module which is fabricated by low power COMS technology. It has an FSTN panel composed of 128 segments and 128 commons. The LCM can be easily accessed by microcontroller via serial data interface.
|1||LCD Display Mode||FSTN/POSITIVE/TRANSFLECTIVE||-||-|
|2||Viewing Direction||6:00 O'clock||pixel||-|
|3||Driving Method||1/128 Duty, 1/12 Bias||-||Note|
|4||Drive Method||1/128Duty, 1/10Bias, VLCD=12.0±0.2V, VDD=3.3V.||-||-|
|5||Resolution||128x (RGB) x 128||-||-|
|6||Module Size||40.00(40.15+8.75)(W) ×( L) ×3.2(T)||mm||Note|
|10||Active Area||30.70( W) × 30.70(L)||mm||-|
|11||Pixel Pitch||0.22(W ) x 0.22(L)||mm||-|
|15||Light Source||1LEDs White||-||-|
