|Place of Origin:||china|
|Minimum Order Quantity:||1000pcs|
|Price:||USD 2.5-2.8/ PCS|
|Display Model:||TRANSMISSIVE And POSITIVE||Technology Type:||FSTN Mode LCD|
|Display Format:||128X64 DOTS MATRIX||Input Data:||8080 Parallel Data Input From MPU|
|Multiplexing Ration:||1/65Duty , 1/9 Bias||Viewing Direction:||12:00 O’clock|
|DRIVER:||ST7567||BACKLIGHT:||WHITE Vf=3.1±0.30V If≤30mA|
128X64 dots LCD Graphic Module,
128X64 dots touch display module,
1/9 Bias driving touch display module
Blue Monochrome lcd Display 12864 graphic lcd module For camera lcd screens

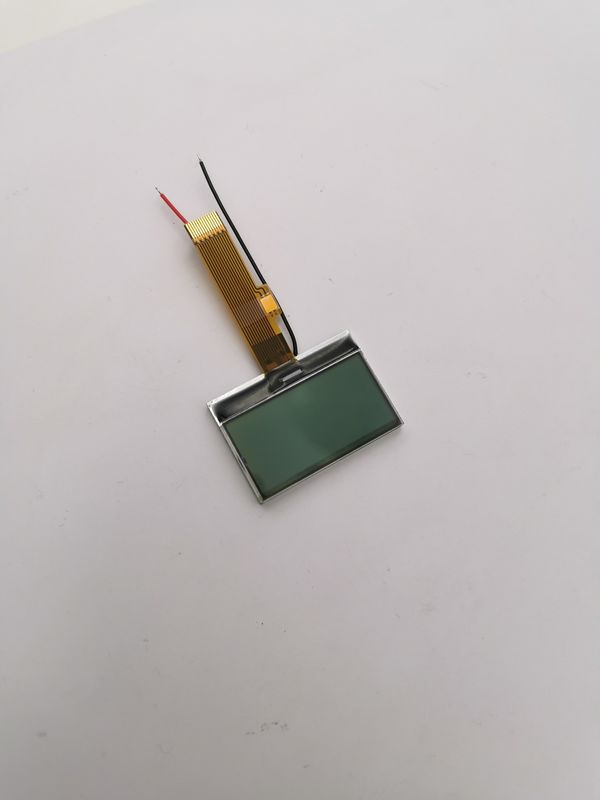

The STR-S12864L-02 is a 128*64 DOTS MATRIX LCD module which is fabricated by low power COMS technology. It has an FSTN panel composed of 128 segments and 64 commons. The LCM can be easily accessed by microcontroller via serial data interface.
|1||LCD Display Mode||FSTN/POSITIVE/TRANSSIVE||-||-|
|2||Viewing Direction||12:00 O'clock||pixel||-|
|3||Driving Method||1/65 Duty, 1/9 Bias||-||Note|
|4||Drive Method||1/128Duty, 1/12Bias, VLCD=8.7V±0.2V, VDD=3.0V.||-||-|
|5||Resolution||128x (RGB) x 64||-||-|
|6||Module Size||34.2(W) ×31( L) ×3.0(T)||mm||Note|
|10||Active Area||28.78( W) × 20.97(L)||mm||-|
|11||Pixel Pitch||0.205(W ) x 0.308(L)||mm||-|
|14||Driver IC RAM Size||RAMLess||bit||-|
|15||Light Source||1LEDs White||-||-|
|16||Interface||Serial data input from MPU||-||-|
Q1. How can I trust your product quality?
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
