|Place of Origin:||china|
|Minimum Order Quantity:||1000pcs|
|Price:||USD 3.1-3.8/ PCS|
|Display Model:||TRANSMISSIVE And POSITIVE||Technology Type:||FSTN Mode LCD|
|Display Format:||128X128 DOTS MATRIX||Input Data:||8080 Parallel Data Input From MPU|
|Multiplexing Ration:||1/128Duty , 1/12Bias||Viewing Direction:||6 O’clock|
|DRIVER:||IST7920||BACKLIGHT:||WHITE Vf=3.1±0.30V If≤30mA|
128X128 dots transflective color display,
IST7920 driver transflective color display,
IST7920 driver 128x128 oled display

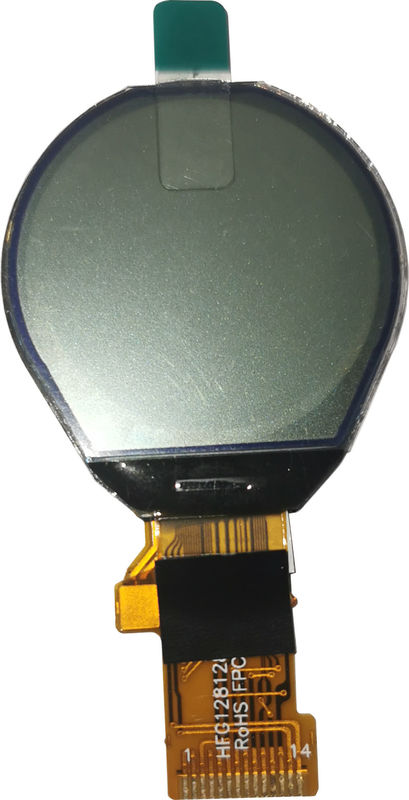

COG STN 128X128 FSTN LCD Transflective LCD Display LCD Module
The YS128128-23 is a 128*128 DOTS MATRIX LCD module which is fabricated by low power COMS technology. It has an FSTN panel composed of 128 segments and 128 commons. The LCM can be easily accessed by microcontroller via serial data interface.
|1||LCD Display Mode||FSTN/POSITIVE/TRANSFLECTIVE||-||-|
|2||Viewing Direction||6:00 O'clock||pixel||-|
|3||Driving Method||1/128 Duty, 1/10 Bias||-||Note|
|4||Drive Method||1/128Duty, 1/10Bias, VLCD=12.0±0.2V, VDD=3.3V.||-||-|
|5||Resolution||128x (RGB) x 128||-||-|
|6||Module Size||32.67(W) ×36.39( L) ×1.95(T)||mm||Note|
|10||Active Area||26.67( W) × 26.67(L)||mm||-|
|11||Pixel Pitch||0.20848(W ) x 0.20848(L)||mm||-|
|15||Light Source||1LEDs White||-||-|
