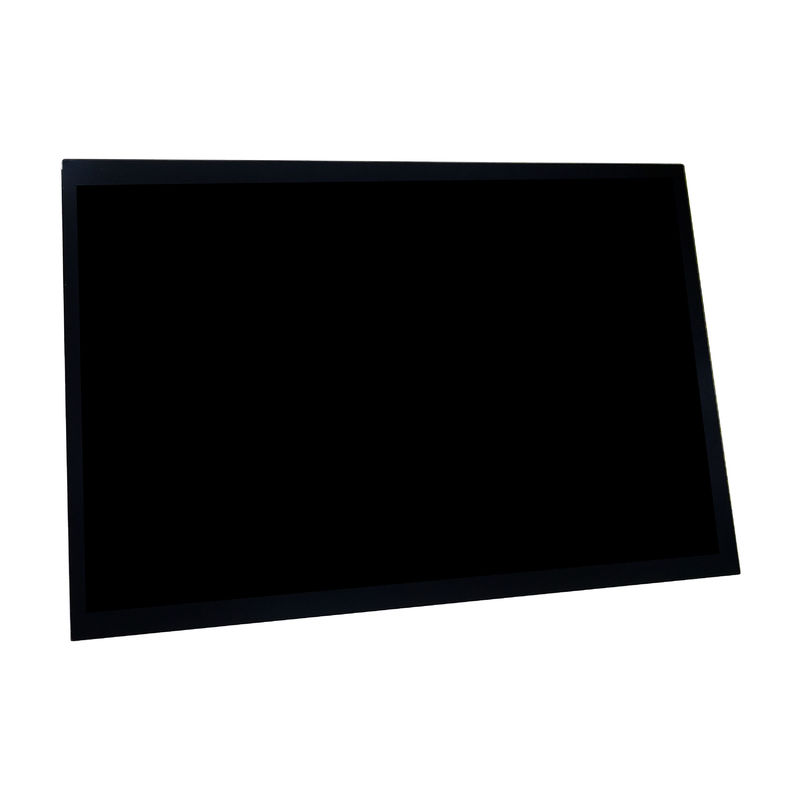

15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature

15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature

  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
  • 15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature
Product Details:
Place of Origin: Korea
Brand Name: LG Display
Certification: RoHS
Model Number: LA154WU1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 65-100/ PCS
Packaging Details: Package quantity in one box:8 pcs Box Size:478mm X 365mm X 328mm
Delivery Time: 20-25
Supply Ability: 10K/M
Contact Now
Detailed Product Description
Size: 15.4 Inch Resolution: 1920(RGB)×1200, WUXGA, 147PPI
Panel Model: LA154WU1 Surface: Glare (Haze 0%), Hard Coating (3H)
Brightness: 800 Cd/m² (Typ.) Response Time: 10/8 (Typ.)(Tr/Td)
Frequency: 60Hz Panel Weight: 830/850g (Typ./Max.)
Input Voltage: 12.0V (Typ.) Panel Type: A-Si TFT-LCD, LCM
High Light:

LVDS TFT LCD Display Module

,

800nits TFT LCD Display Module

,

15.4 Inch Tft Display Panel

LG Display 15.4 inch 800cd/m² LVDS Interface TFT LCD Display Module Wide temperature



      This module utilizes amorphous silicon thin film transistors and a 16:10 aspect ratio. The 15.4” active matrix liquid crystal display allows 16,777,216 colors to be displayed by Digital RGB interface is available. The application is CID(Center Information Display) for the vehicle.



Features


1.Utilizes a panel with a 16:10 aspect ratio.
2.The 15.4” screen produces a high resolution image that is composed of 2,304,000 pixel elements in a stripe
arrangement.
3. By adopting In Plane Switching (IPS) technology, provide a wide viewing angle.
4.By adopting an active matrix drive, a picture with high contrast is realized.
5.By using of COG mounting technology, the module became thin, light and compact.

6.By adopting a high aperture panel, high transmittance color filter and high transmission polarizing plates,
transmittance ratio is realized.
 7.Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal.



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 15.4 inches diagonal inch -
2 Panel Type IPS - -
3 Resolution 1920 horiz. by 1200 vert. Pixels, RGB stripe arrangement pixel -
4 Display Mode a-Si TFT-LCD, LCM - -
5 Display Colors 16.7M 87% NTSC - Note
6 Viewing Direction 89/89/89/89 (Min.)(CR≥10) - -
7 Best View on Symmetry
8 Contrast Ratio 1450:1 (Typ.) (TM) - -
9 Brightness 800 cd/m² (Typ.) cd/m2 Note
10 Outline Size 341.2(W)×219.14(H) ×13(D) mm mm Note
11 Active Area 330.624(W)×206.64(H) mm mm -
12 Bezel Opening - mm -
13 Weight 830/850g (Typ./Max.) g -
14 Input Voltage 12.0V (Typ.) W -
15 Touch Screen Without bit -
16 LLamp Type WLED , 20K hours , With LED Driver - -
17 Signal Interface SLVS (1 ch, 2 port) , 6 pins Connector - -
18 Operating Temperature -30~85 ºC -
19 Storage Temperature -40~95 ºC -



Outline Dimension (unit: mm)



15.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature 015.4 Inch 800nits LVDS TFT LCD Display Module Wide Temperature 1





Why Choose us:



1.Our company established in 2011, and have a long-term cooperation with many well-known company.

2.We have a professional r&d team and technical support.

3.We have a large number of spot inventory and we can ship delivery asap after payment.

4.We are direct agent of these brands,ordering process simple and delivery time short.

5.All screen ship from our company has long warranty and we have enough technical support can provide after-sales service.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.





FAQ





Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23



Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.



Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.



Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Q7. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.



Q8.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require any product to be returned to us, the shipping cost will be fully paid by us.



Q9. Do you have any shipping account and can you quote favorable shipping cost?

A: Yes, we have been working with DHL, Fedex more than 11 years, our shipping accounts were granted discount as much as 85% off . Please feel free to ask our sales no matter it is sample or formal order shipment.
