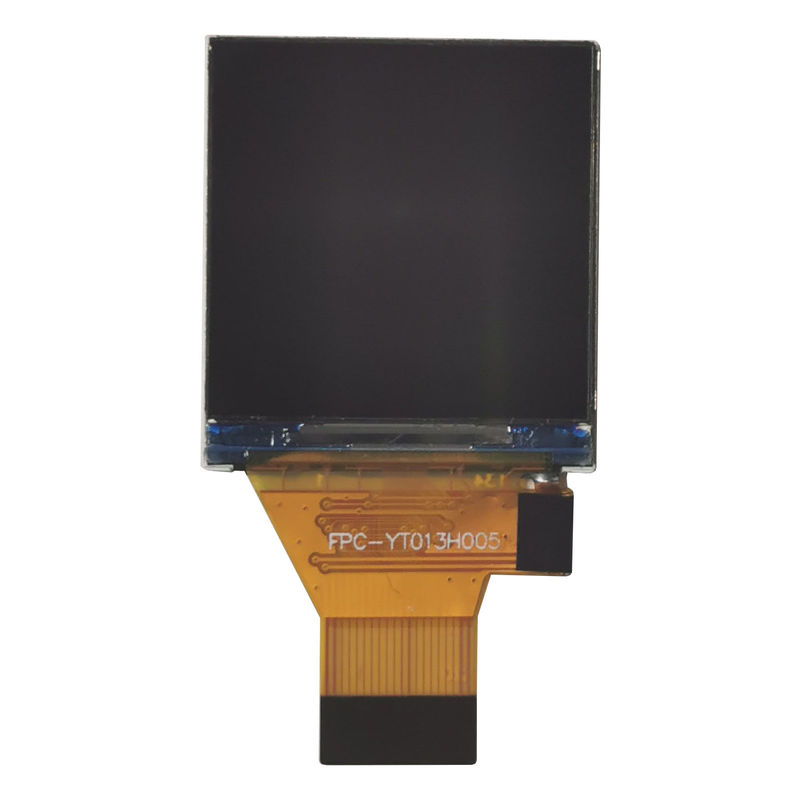

SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device

SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device

  • SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device
  • SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device
  • SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device
SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device
Product Details:
Place of Origin: china
Brand Name: HSD
Certification: RoHS
Model Number: HC013H005
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 2.6-2.9/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Supply Ability: 1kk/m
Contact Now
Detailed Product Description
Size: 1.3 Inch Display Mode: Normally Black
Resolution: 240*RGB*240 Active Area: 23.40( W) × 23.40(L)
Viewing Angle: All O'clock Brightness: 300 Cd/m2
Colors: 262K/16.7M Interface: 8080 Mcu
High Light:

240X240 1.3 inch wide temperature lcd

,

Spi interface 1.3 inch wide temperature lcd

,

240X240 color lcd display module

1.3 inch TFT LCD Displays with 240X240 Pixels Spi and 8080 MCU for Wearable Device



       The YT014H004 is a color active matrix thin film transistor (TFT) liquid crystal display without polarizer. This model is composed of
amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally black mode.
        This TFT LCD has a 1.4-inch diagonally measured active display area with 240 x 240 dot (240 horizontal by 240 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.



Features


1.0.36T Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant



Application

Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc…



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 1.3 inch -
2 Panel Type IPS - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Normally Black - -
5 Display Number of Colors 262K - Note
6 Viewing Direction ALL - -
7 Contrast Ratio 900(min) - -
8 Luminance 200(TYP) cd/m2 Note
9 Module Size 26.10(W) ×29.15( L) ×1.85(T) mm Note
10 Active Area 23.40( W) × 23.40(L) mm -
11 Pixel Pitch 0.135(W ) x 0.135(L) mm -
12 Weight - g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 2LEDs White - -
16 Interface SPI 8BITMCU - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -



Outline Dimension (unit: mm)



SPI Interface 240X240 1.3 Inch Wide Temperature LCD For Wearable Device 0



Related Products



Size Model No. Resolution Outline dimension
(LCM) H*V*T(mm)
Interface View direction
0.96 YT096H001 80*160 13.30*27.95* 1.38 SPI All O'Clock
1.44 YT144C001-V7 128*128 32.30*38.00*2.70 MCU 12 O'Clock
1.44 YT144C001-V13 128*128 32.30*38.00*2.70 MCU 12 O'Clock
1.77 YT177H040-V1 128*160 34.00*47.00*2.45 MCU 12 O'Clock
2.0 YT020H263 176*220 41.50*49.10*2.45 MCU 12 O'Clock
2.0 YT020M263 176*220 41.50*49.10*2.45 MCU 12 O'Clock
2.0 YT020M264 176*220 41.50*49.10*2.20 MCU 12 O'Clock
2.4 YT024C017 240*320 42.72*60.26*2.25 SPI+RGB/MCU ALL
2.8 YT028H003 240*320 50.00*69.20*2.40 MCU ALL
2.8 YT028I001 240*320 50.00*69.20*2.40 MCU 12 O'Clock



Why Choose us:



1.Our company established in 2011, and have a long-term cooperation with many well-known company

2.We have a professional r&d team and technical support

3.We have a large number of spot inventory and we can ship delivery asap after payment

4.We are direct agent of these brands,ordering process simple and delivery time short

5.All screen ship from our company has long warranty and we have enough technical support can provide

after-sales service.



FAQ



Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23



Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.



Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.



Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Q7. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.



Q8.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require any product to be returned to us, the shipping cost will be fully paid by us.



Q9. Do you have any shipping account and can you quote favorable shipping cost?

A: Yes, we have been working with DHL, Fedex more than 11 years, our shipping accounts were granted discount as much as 85% off . Please feel free to ask our sales no matter it is sample or formal order shipment.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.





Company profile



       Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).

       It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.

       The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
