Product Details
Place of Origin: china
Brand Name: BOE
Certification: RoHS
Model Number: YT0101B001
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 18-22/ PCS
Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs
Delivery Time: 20-25
Supply Ability: 10KK/M
Screen Size: |
10.1 Inch |
Display Colors: |
262K/16.7M 50% NTSC |
Treatment: |
Antiglare |
Viewing Angle: |
70/70/0/60 (Typ.)(CR≥10) |
Good View At6 O'clock: |
Symmetry |
Response( Time): |
20 (Typ.)(Tr+Td) |
Resolution: |
1024(RGB)×600, WSVGA, 117PPI |
Pixel Format: |
RGB Vertical Stripe |
Screen Size: |
10.1 Inch |
Display Colors: |
262K/16.7M 50% NTSC |
Treatment: |
Antiglare |
Viewing Angle: |
70/70/0/60 (Typ.)(CR≥10) |
Good View At6 O'clock: |
Symmetry |
Response( Time): |
20 (Typ.)(Tr+Td) |
Resolution: |
1024(RGB)×600, WSVGA, 117PPI |
Pixel Format: |
RGB Vertical Stripe |

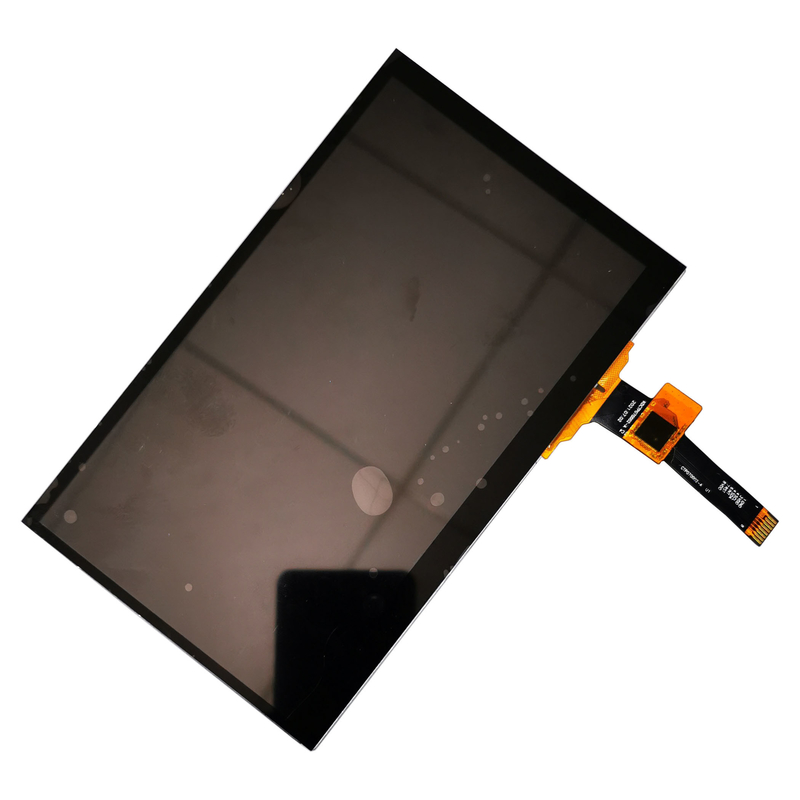

10.1inch 1024X600 tft lcd display 50pin module lcd screen 24BIT RGB interface
The YT0101B001is a 10.1-inch diagonal a-Si TFT-LCD display panel product, integrated WLED backlight system, no backlight driver, without touch screen.
TFT Resistive Touch Screen Specifications
| Item | Specification | Unit |
| Outline Dimension | 235(h)x143(v)x3.5(d) | mm |
| Display Area | 222.72(h)x125.28(v) | mm |
| Number of Pixel | 1024(h)x3(RGB)x600(v) | pixels |
| Pixel Pitch | 0.2175(h)x0.2088( v) | mm |
| Pixel Arrangement | RGB Vertical Stripe | |
| Display Mode | Normally white | |
| Temperature Range | ||
| Item | Min. | Max. |
| Operating Temperature (°C) | -10 | 60 |
| Storage Temperature (°C) | -20 | 70 |
Advantage Of TFT LCD display Module
We are professional LCD module manufacture in China with precise and advanced equipments.
High quality Control with CE, ROHS and so on approved.
More than 10 years of industry experience and involved main markets all over the world
Dedicated and professional sales team will offer you 24 hours online and immediate service
OEM and ODM support,12 months warranty for all of our products
Our mission is to help our customers achieve success, then fulfill our both dreams
Why Choose us:
1. Our company established in 2011, and have a long-term cooperation with many well-known company.
2. We have a professional r&d team and technical support.
3. We have a large number of spot inventory and we can ship delivery asap after payment.
4. We are direct agent of these brands,ordering process simple and delivery time short.
FAQ
Q1. How can I trust your product quality?
A:
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
Q2. Which sizes of LCDs and Touch Panels do you provide?
A:
--Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”, 1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”, 4.3”, 5”, 5.6”, 6.86”.
--Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”,14.1",15.6",17",21.5",23
Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.
Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.
--For Customized products,
We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.
Mass production of special products could be as fast as 3weeks.
--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.
Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.
Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.
Company profile
Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).
It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.
The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
