|Screen Size:||2.4 Inch||Viewing Angle:||0/80/80/80 (Typ.)(CR≥10)|
|Model Name:||YT024C025||Response( Time):||30 (Typ.)(Tr+Td)|
|Best View On:||Symmetry||Pixel Format:||RGB Vertical Stripe|
|Resolution:||240(RGB)×320, QVGA||Display Colors:||262K 69% NTSC|
Medical Grade Sunlight Readable TFT,
4P WLED Sunlight Readable TFT,
240x320 QVGA TFT LCD Display

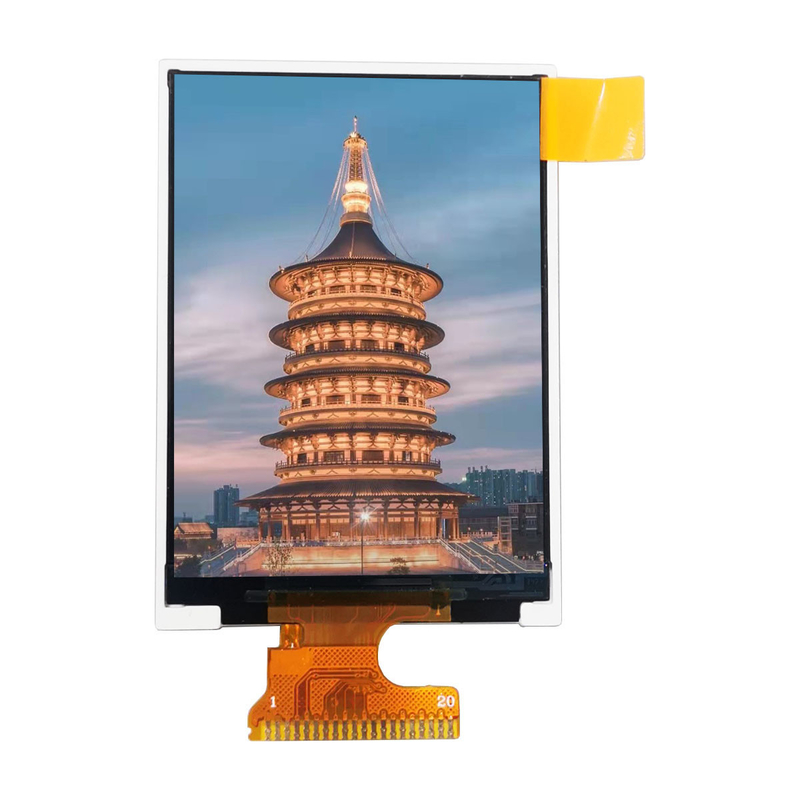

LCD Display Medical Grade display modules 2.4inch 240x320 QVGA TFT LCD
The YT024F603 is a 2.4-inch diagonal a-Si TFT-LCD display panel product with high-brightness LED backlight and no touch screen. Its operating temperature range is -20 ~ 70°C, and its storage temperature range is -30 ~ 80°C. Its general characteristics are summarized by Adia as follows: vertical type, ODF unit. Based on its features, Panelook recommend that this model be applied to mobile phones and other products
|4||Screen Type||LCM , a-Si TFT-LCD||-||-|
|5||Color Depth||262K 26% NTSC||-||Note|
|6||Good View at||Symmetry||-||-|
|7||Contrast Ratio||600:1 (Typ.) (TM))||-||-|
|8||Luminance||200 cd/m² (Typ.)||cd/m2||Note|
|9||Outline Dim||42.72(W)* 60.26(H)*2.45(T) (H×V×D)||mm||Note|
|10||Active Area||48.96(W)×73.44(H) mm||mm||-|
|11||Bezel Area36.72 (W)* 48.96 (H)||mm||mm||-|
|13||Operating Mode||TN, Normally White, Transmissive||-||-|
|15||Light Source||4P WLED , 5K hours , No Driver||-||-|
|16||Interface Type||Parallel 4-SPI 10PIN FPC||-||-|
Outline Dimension (unit: mm)
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
4. LIMITED WARRANTY
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1 RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1. No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2. Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
Q1. How can I trust your product quality?
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
