Product Details
Place of Origin: china
Brand Name: INNOLUX
Certification: RoHS
Model Number: YT035C004
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 9.5-12/ PCS
Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs
Delivery Time: 20-25
Supply Ability: 10KK/M
Model Name: |
YT035F002 |
Best View On: |
Symmetry |
Viewing Angle: |
0/80/80/80 (Typ.)(CR≥10) |
Pixel Format: |
RGB Vertical Stripe |
Resolution: |
320(RGB)×480, HVGA, 166PPI |
Response( Time): |
30 (Typ.)(Tr+Td) |
Display Colors: |
262K 69% NTSC |
Screen Size: |
3.5 Inch |
Model Name: |
YT035F002 |
Best View On: |
Symmetry |
Viewing Angle: |
0/80/80/80 (Typ.)(CR≥10) |
Pixel Format: |
RGB Vertical Stripe |
Resolution: |
320(RGB)×480, HVGA, 166PPI |
Response( Time): |
30 (Typ.)(Tr+Td) |
Display Colors: |
262K 69% NTSC |
Screen Size: |
3.5 Inch |

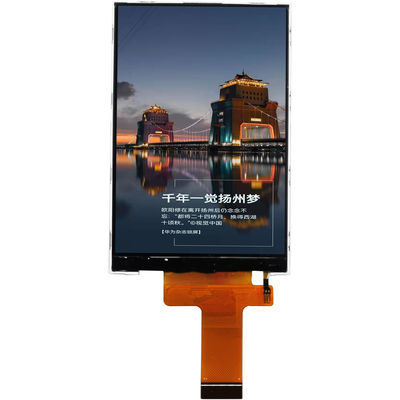

Outdoor square full viewing angle 3.5inch 2000nit high bright tft 320x480 lcd touch screen display lcd display
The YT035C004 is a 3.5-inch diagonal a-Si TFT-LCD display panel.The 3.5-inch TN HVGA uses Innolux's panel, the driver IC is ILI9488, without a touch screen. Mainly used in video doorbell, smart home and smart toys and other fields.
General Specifications
| Display colors | 65K /262K |
| Resolution (pixels) | 320(RGB)*480 |
| Viewing direction | 6:00 |
| Controller IC | ILI9488 |
| Active Area | 48.96(W) x 73.44(H) |
| Outline dimensions | 54.50 (W) x 83.00(H) x 2.5(D) |
| Interface type | RGB |
| Backlight | 6 CHIP WHITE LED |
| Operating temperature range | -20----70 °C |
| Storage Temperature range | -30----80 °C |
| Certification of registration | ISO9001:2008 |
Outline Dimension (unit: mm)
Related Products
| Size | Model No. | Resolution | Outline dimension (LCM) H*V*T(mm) |
Interface | View direction |
| 2.31 | YT023H003 | 320*240 | 50.80*45.80*2.46 | MCU/SPI | 12 O'Clock |
| 2.4 | YT024H001 | 240*320 | 42.72*60.26*2.25 | MCU | 12 O'Clock |
| 2.4 | YT024C017 | 240*320 | 42.72*60.26*2.25 | SPI+RGB/MCU | ALL |
| 2.8 | YT028H003 | 240*320 | 50.00*69.20*2.40 | MCU | ALL |
| 2.8 | YT028I001 | 240*320 | 50.00*69.20*2.40 | MCU | 12 O'Clock |
| 3.5 | YT035F001 | 320*480 | 54.66*82.94*2.20 | MIPI | 12 O'Clock |
| 3.5 | YT035C025 | 320*480 | 55.00*84.71*2.25 | MCU/SPI | ALL |
| 3.5 | YT043H007 | 480*800 | 62.46*105.9*2.20 | SPI+RGB | ALL |
| 4 | YT043H012 | 480*800 | 62.46*105.9*2.20 | MIPI | 12 O'Clock |
| 4.3 | YT445H006 | 480*854 | 60.04*109.42*1.95 | RGB | ALL |
| 4.5 | YT045I001 | 480*854 | 60.00*109.00*1.85 | MIPI | ALL |
| 5 | YT050B008 | 720*1280 | 64.70*118.70*1.55 | MIPI | ALL |
| 5 | YT050C001 | 1080*1920 | 64.9*119.75*2.2 | RGB | ALL |
| 5 | YT055H005-V1 | 480*800 | 70.34*128.11*2.05 | RGB | ALL |
| 5.5 | YT055B001 | 1080*1920 | 71.00*129.56*1.50 | MIPI | ALL |
Why Choose us:
1. Our company established in 2011, and have a long-term cooperation with many well-known company.
2. We have a professional r&d team and technical support.
3. We have a large number of spot inventory and we can ship delivery asap after payment.
4. We are direct agent of these brands,ordering process simple and delivery time short.
PRECAUTIONS
1. HANDLING
1.1. Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2. STORAGE
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
3. SAFETY
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
4. LIMITED WARRANTY
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1 RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1 No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2. Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
