|Place of Origin:||CHINA|
|Minimum Order Quantity:||200pcs|
|Price:||USD 30-35/ PCS|
|Size:||8.0 Inch||Resolution:||1200(RGB)×1920 [WUXGA] 283PPI|
|Panel Type:||A-Si TFT-LCD, LCM||Display Colors:||16.7M 55% NTSC|
|Input Voltage:||1.8/5.4/-5.4V (Typ.)(VDD1/PVDD/NVDD)||Technology Type:||A-Si TFT-LCD, LCM|
|Best View On:||Symmetry||Frequency:||60Hz|
|Surface:||Hard Coating, Antireflection||Display Mode:||ADS, Normally Black, Transmissive|
8in IPS LCD Screen Module,
MIPI IPS LCD Screen Module,
1200x1920 LCM Sunlight Readable Screen

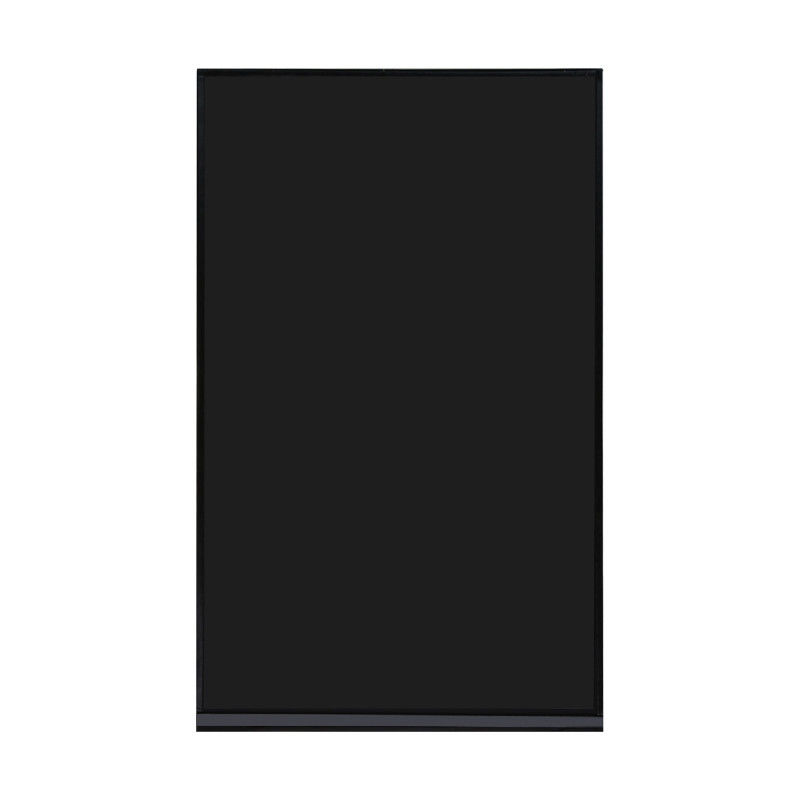

8-inch IPS LCD screen module MIPI31pin interface 1200*1920 face recognition full viewing angle vertical screen
YT080B005 is an 8.0" diagonal a-Si TFT-LCD display panel product, integrated WLED backlight system, no backlight driver, no touch screen. The operating temperature range is -10~60°C, and the storage temperature range is -20 ~ 70 °C. Its general characteristics are summarized as follows: portrait, WLED backlight.
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
Based on its characteristics, this model is recommended to be used in tablet computers, face recognition terminals, face payment terminals, smart attendance machines, smart access control machines, barrier terminals and independent retail System and so on.
|1||LCD Size||8.0 inch diagonal||inch||-|
|3||Resolution||1200(RGB)×1920 [WUXGA] 283PPI||pixel||-|
|4||Display Mode||ADS, Normally Black, Transmissive||-||-|
|5||Display Number of Colors||16.7M 71% NTSC||-||Note|
|6||Viewing Direction||85/85/85/85 (Typ.)(CR≥10)||-||-|
|7||Contrast Ratio||1200:1 (Typ.) (TM)||-||-|
|8||Luminance||400 cd/m² (Typ.)||cd/m2||Note|
|9||Module Size||114.60(H) ×184.10( V ) × 2.2(D)||mm||Note|
|10||Active Area||107.64( H ) × 172.22( V )||mm||-|
|13||Power Supply||3.3V (Typ.)||-||-|
|15||Light Source||WLED [8S3P] , W/O Driver||-||-|
|16||Interface||MIPI (4 data lanes) 31 pins Connector||-||-|
Outline Dimension (unit: mm)
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
