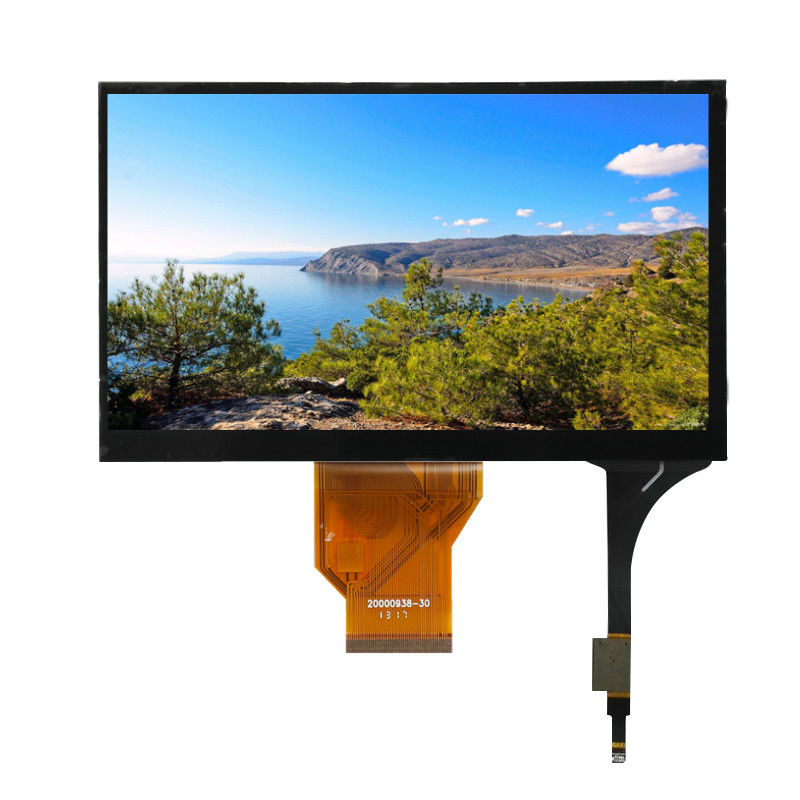

AT070TN92 7 Inch 800x480 TFT LCD Module 134PPI With Capacitive Touch Screen

Product Details

Place of Origin: china

Brand Name: INNOLUX

Certification: RoHS

Model Number: AT070TN92

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 18-22/ PCS

Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs

Delivery Time: 20-25

Supply Ability: 10KK/M

Get Best Price
Contact Now
Specifications
Highlight:

800x480 TFT LCD Module

,

AT070TN92 TFT LCD Module

,

134PPI Capacitive Touch Screen Module

Model Name:
AT070TN92
Screen Size:
7.0 Inch
Display Colors:
262K/16.7M 50% NTSC
Treatment:
Antiglare
Viewing Angle:
70/70/50/70 (Typ.)(CR≥10)
Response( Time):
30 (Typ.)(Tr+Td)
Resolution:
800(RGB)×480 (WVGA) 134PPI
Good View At6 O'clock:
Symmetry
Pixel Format:
RGB Vertical Stripe
Screen Type:
LCM , A-Si TFT-LCD
Model Name:
AT070TN92
Screen Size:
7.0 Inch
Display Colors:
262K/16.7M 50% NTSC
Treatment:
Antiglare
Viewing Angle:
70/70/50/70 (Typ.)(CR≥10)
Response( Time):
30 (Typ.)(Tr+Td)
Resolution:
800(RGB)×480 (WVGA) 134PPI
Good View At6 O'clock:
Symmetry
Pixel Format:
RGB Vertical Stripe
Screen Type:
LCM , A-Si TFT-LCD
Description
AT070TN92 7 Inch 800x480 TFT LCD Module 134PPI With Capacitive Touch Screen

AT070TN92 7-inch 800x480 TFT LCD module with Capacitive touch screen



       The AT070TN92AT070TN92 is a 7.0-inch diagonal a-Si TFT-LCD display panel product, integrated WLED backlight system, no backlight driver, with capacitive touch screen. Its operating temperature range is -20 ~ 70°C, and its storage temperature range is -30 ~ 80°C. With WLED backlight, U/D, L/R reverse, 6/8 bit, polarizer is matte, DE/SYNC mode is optional, 2 in 1 FPC.

Application

      Mainly used in digital photo frames, portable DVD players, video access control phones, VOIP phones and other products etc..



General Specifications

NO. Item Specification Unit Remark
1 LCD Size 7.0 inch -
2 Manufacturer INNOLUX - -
3 Resolution 8000x (RGB) x 480 pixel -
4 Screen Type LCM , a-Si TFT-LCD - -
5 Color Depth 262K/16.7M 50% NTSC - Note
6 Good View at  6:00 o'clock - -
7 Contrast Ratio 500:1 (Typ.) (TM)) - -
8 Luminance 250 cd/m² (Typ.) cd/m2 Note
9 Outline Dim  164.9 × 100 × 6.0 (H×V×D) mm Note
10 Active Area 154.08 × 85.92 (H×V) mm -
11 Bezel Area 56.7 × 89.1 (H×V) mm -
12 Weight 150g (Typ.) g -
13 Operating Mode  TN, Normally White, Transmissive - -
14 Touch Panel Without/Resistive touch screen bit -
15 Light Source 3S9P WLED , 20K hours , No Driver - -
16 Interface Type  Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC - -
17 Operating Temperature -20~70°C ºC -
18 Storage Temperature -30~70°C ºC -



Related Products

      TFT-LCM
Size Model No. Resolution H V T Golden finger spacing Interface PIN IC
1 YT070B001 800*480 104.4 165 3.5 W0.3/P0.5 P0.5/W0.35 60 HX8264D
2 YT070B003 800*480 164.9 100 3.35 W0.3/P0.5 P0.5/W0.35 50 HX8264D
7 YT070C004 800*480 164.9 100 2.8 W0.3/P0.5 P0.5/W0.3 50 ST5091 +ST5623
7 YT070B004 800*480 164.9 100 2.8 W0.3/P0.5 P0.5/W0.3 50 ILI5960D+ILI6128B
7 YT070B004-V1 800*480 164.9 100 2.8 W0.3/P0.5 P0.5/W0.3 50 NV3858+NV1057
7 YT070B004-V2 800*480 164.9 100 2.8 W0.3/P0.5 P0.5/W0.3 50 OTD9960+OTA7001A
7 YT070B004-V3 800*480 164.9 100 2.8 W0.3/P0.5 P0.5/W0.3 50 HX8264-D07+HX8664-B
5 YT050A001 480*272 120.4 71.4 2.65 P0.6/W0.3 RGB 51 NT35510
5 YT050H002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 HX8264-D03&HX8678-B00
5 YT050C002 800*480 120.7 75.8 3.1 P0.5/W0.35 RGB 40 OTA7001A_C &OTA9960A
5 YT050H003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6480H2
5 YT050C003 480*272 120.7 75.8 3.1 P0.5/W0.35 RGB 40 ILI6482C
5 YT050H004 800*480 119 74.9 2.8max P0.5/W0.35 RGB 40 HX8264-D03&HX8678-B00



Outline Dimension (unit: mm)

AT070TN92 7 Inch 800x480 TFT LCD Module 134PPI With Capacitive Touch Screen 0





Why Choose us:

1.Our company established in 2011, and have a long-term cooperation with many well-known company.

2.We have a professional r&d team and technical support.

3.We have a large number of spot inventory and we can ship delivery asap after payment.

4.We are direct agent of these brands,ordering process simple and delivery time short.



PRECAUTIONS

1.HANDLING

1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.

2.STORAGE

2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.

3.SAFETY

If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.

4.LIMITED WARRANTY

Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.

4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS

4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.





FAQ

Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23

Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.

Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.

Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Company profile

      Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).

      It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.

       The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
