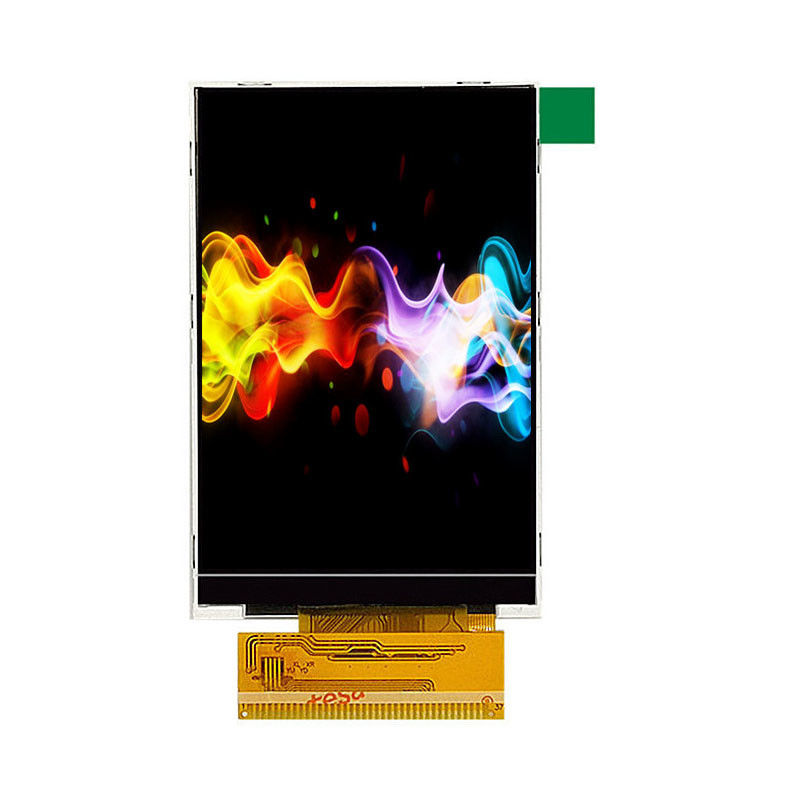

TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI

TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI

  • TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI
  • TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI
  • TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI
  • TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI
TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI
Product Details:
Place of Origin: china
Brand Name: INNOLUX
Certification: RoHS
Model Number: Z350IT002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 18-22/ PCS
Packaging Details: Piling number of cartons : Max 8; Carton size :575mm × 332mm × 209mm ;Package quality in one cartons : 100pcs
Delivery Time: 20-25
Supply Ability: 10KK/M
Contact Now
Detailed Product Description
Model Name: YT035C005 Screen Size: 3.5 Inch
Display Colors: 262K 69% NTSC Viewing Angle: 0/80/80/80 (Typ.)(CR≥10)
Response( Time): 30 (Typ.)(Tr+Td) Resolution: 320(RGB)×480, HVGA, 166PPI
Pixel Format: RGB Vertical Stripe Best View On: Symmetry
High Light:

HVGA TFT Resistive Touch Screen

,

MCU TFT Resistive Touch Screen

,

166PPI Touch Screen Modules

3.5 Inch TN HVGA 8BIT 16 BIT MCU interface Standard 37PIN, driver IC: ILI9486, ILI9488, ST7796S



       The Z350IT002 is a-Si TFT-LCD liquid crystal glass product uses a 0.40+0.40 mm glass substrate. With LED backlight, it can be equipped with resistive touch screen. The working temperature of this product is -20 ~ 70°C, and the storage temperature is -30 ~ 80°C. Its typical features are summarized by Panelook as: Portrait mode. Based on its features, Panelook recommend that this model be applied to mobile phones and other products. The display resolution is 320(RGB)×480 (HVGA), the aspect ratio is 2:3 (width:height), and the pixels are arranged in RGB vertical stripes. A 0.40+0.40 mm glass substrate is used.



General Specifications

NO. Item Specification Unit Remark
1 LCD Size 3.5 inch -
2 Manufacturer INNOLUX - -
3 Resolution 320x (RGB) x 480 pixel -
4 Screen Type LCM , a-Si TFT-LCD - -
5 Color Depth 262K 26% NTSC - Note
6 Good View at  Symmetry - -
7 Contrast Ratio 500:1 (Typ.) (TM)) - -
8 Luminance 350 cd/m² (Typ.) cd/m2 Note
9 Outline Dim  55.26 × 84.52 × 2.7 (Without TP)/55.26 × 84.52 × 4.0(With TP) mm Note
10 Active Area 48.96(W)×73.44(H) mm mm -
11 Bezel Area 7.4(H)×75.2(V) mm mm -
12 Weight 34.0g (Typ.) g -
13 Operating Mode  TN, Normally White, Transmissive - -
14 Touch Panel Without/Resistive touch screen bit -
15 Light Source 6P WLED , 5K hours , No Driver - -
16 Interface Type  MCU 8/16BIT  37PIN FPC - -
17 Operating Temperature -20~70°C ºC -
18 Storage Temperature -30~70°C ºC -



Related Products



Size Model No. Resolution Outline dimension
(LCM) H*V*T(mm)
Interface View direction
2.31 YT023H003 320*240 50.80*45.80*2.46 MCU/SPI 12 O'Clock
2.4 YT024H001 240*320 42.72*60.26*2.25 MCU 12 O'Clock
2.4 YT024C017 240*320 42.72*60.26*2.25 SPI+RGB/MCU ALL
2.8 YT028H003 240*320 50.00*69.20*2.40 MCU ALL
2.8 YT028I001 240*320 50.00*69.20*2.40 MCU 12 O'Clock
3.5 YT035F001 320*480 54.66*82.94*2.20 MIPI 12 O'Clock
3.5 YT035C025 320*480 55.00*84.71*2.25 MCU/SPI ALL
3.5 YT043H007 480*800 62.46*105.9*2.20 SPI+RGB ALL



Outline Dimension (unit: mm)



TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI 0

TN HVGA MCU TFT Resistive Touch Screen 37 PIN Driver IC ILI9486 166PPI 1





PRECAUTIONS

1.HANDLING

1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.

2.STORAGE

2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.

3.SAFETY

If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.

4.LIMITED WARRANTY

Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.

4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS

4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.





FAQ

Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96, 1.22, 1.3, 1.44, 1.54, 1.77, 2.0, 2.4, 2.7, 2.8, 3.0, 3.2, 3.5, 3.95, 3.97, 4.3, 5, 5.6, 6.86.

--Middle sizes which include: 7, 8, 9, 10.1, 10.2, 13.3”,14.1",15.6",17",21.5",23

Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.

Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.

Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Company profile

      Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).

      It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.

       The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
