Detailed Product Description
Diagonal Size: 3.5 Inch Type: A-Si TFT-LCD , LCM
Pixel Format: 240(RGB)×320 [QVGA] 113PPI Configuration: RGB Vertical Stripe
Treatment: Hard Coating (3H) Frame Rate: 60Hz
Power Supply: 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) Interface Type: Parallel RGB (1 Ch, 6-bit) 50 Pins FPC
High Light:

3.5 Inch Sunlight Readable TFT

,

6 Bit RGB Sunlight Readable TFT

,

Handheld PDA Industrial TFT Display

SHARP 3.5 inch Industrial TFT Display 6 Bit RGB Interface For handheld PDA

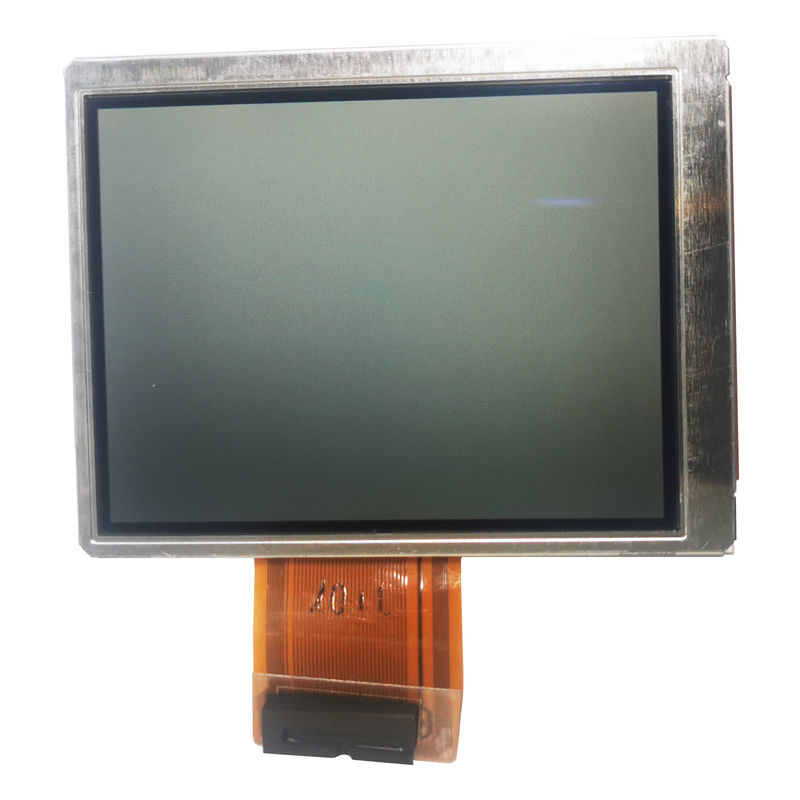

      The LQ035Q7DB03F is a 3.5-inch LCD module product using a-Si TFT-LCD technology from Sharp, with an integral WLED backlight system, no backlight driver, and no touch screen. Panelook summarizes its typical features as: portrait mode, transflective, white LED backlight, up/down, left/right flip display, AD-TFT (Advanced TFT). Its working temperature is -10 ~ 60°C, and its storage temperature is -25~ 70°C. The display resolution of LQ035Q7DB03F is 240(RGB)×320 (QVGA), the aspect ratio is 3:4 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 53.64×71.52 (width×height) mm, the visual size is 57.4×75.2 (width×height) mm, the appearance size is 65(width)×85(height)×3.7(thickness) mm, and the surface The treatment is Hard coating (3H), and the net weight of the product is 40.0g (Typ.). As for the backlight, this product adopts an edge-lit WLED light source. The lifespan of the light source is 10K hours, without backlight driver. LQ035Q7DB03F uses Parallel RGB (1 ch, 6-bit) signal interface, a total of 50 pins, which are connected by FPC, and the driving voltage is 5.0/3.3/15.0/-10.0V (Typ.) (VSHA/VSHD/VDD/VEE) . Its typical vertical refresh rate Fv is 60Hz.



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 3.5 inch -
2 Panel Type a-Si TFT-LCD - -
3 Resolution 240x (RGB) x 320 pixel -
4 Display Mode Normally Black - -
5 Display Number of Colors 262K - Note
6 Viewing Direction 6 o'clock - -
7 Contrast Ratio 85:1 (Typ.) (TM) 15:1 (Typ.) (RF) - -
8 Luminance 55 cd/m² (Typ.) cd/m2 Note
9 Outline Dim 65(H)×85(V) ×3.7(D) mm mm Note
10 Active Area 53.64(H)×71.52(V) mm mm -
11 Bezel Area 7.4(H)×75.2(V) mm mm -
12 Weight 40.0g (Typ.) g -
13 Operating Mode TN, Normally White, Transflective - -
14 Touch Panel Without bit -
15 Light Source WLED , 10K hours , W/O Driver - -
16 Interface Type Parallel RGB (1 ch, 6-bit) 50 pins FPC - -
17 Operating Temperature -10~60 ºC -
18 Storage Temperature -25~70 ºC -



Outline Dimension (unit: mm)



6 Bit RGB 3.5 Inch Sunlight Readable TFT For Handheld PDA 0

6 Bit RGB 3.5 Inch Sunlight Readable TFT For Handheld PDA 1

6 Bit RGB 3.5 Inch Sunlight Readable TFT For Handheld PDA 2
