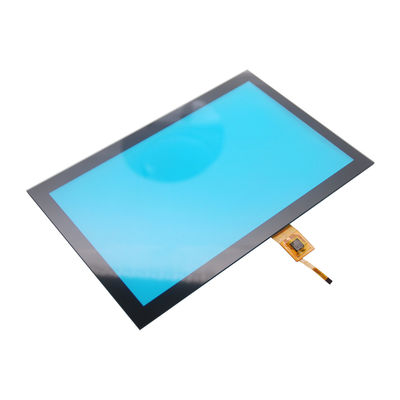

1280X800 Pixel TFT LCD Resistive Touchscreen , 10.1 Inch Capacitive Touch Panel

Product Details

Place of Origin: china

Brand Name: adia

Model Number: ctp

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 8-9.5/ PCS

Packaging Details: 50cm*50cm*60cm

Get Best Price
Contact Now
Specifications
Highlight:

1280X800 pixel Capacitive Touch Panel

,

10.1 inch Capacitive Touch Panel

,

1280X800 pixel TFT LCD Resistive Touchscreen

Size:
10.1 Inch
Structure Type:
G+F+F
Interface Type:
IIC
Transparency:
≥80%
Hardness:
6H
Glass Hardness:
6H
Operation Life:
≥2000 Ten Thousand Times≥1milliontimes
Penslidin200 Million Timesg Duradilty:
200 Million Times
Size:
10.1 Inch
Structure Type:
G+F+F
Interface Type:
IIC
Transparency:
≥80%
Hardness:
6H
Glass Hardness:
6H
Operation Life:
≥2000 Ten Thousand Times≥1milliontimes
Penslidin200 Million Timesg Duradilty:
200 Million Times
Description
1280X800 Pixel TFT LCD Resistive Touchscreen , 10.1 Inch Capacitive Touch Panel

10.1 inch TFT Color Touch Screen 1280X800 TFT LCD Display Capacitive Touch Screen



      The main structure of 10.1-inch capacitive touch screen is G + F + F structure, with more than 5 touch points and strong anti dry performance. Long service life, ultra-thin product thickness, mainly used in education tablet, bank POS machine.



Features


1.1.Cover Lens+ITO Glass+FPC+adhesive
2.IC model: GT911
3.Transmittance: ≥ 80%
4.Surface hardness: 6h (500g / F)





Application



      Capacitive touch screen has been widely used in various industries, such as smart watch, smart bracelet, smart home, smart robot, smart furniture, automotive system, communication equipment, educational tablet, computer, POS equipment, medical equipment, educational equipment, 3D printer, industrial controller, security equipment, digital greeting card, entertainment equipment and military aerospace field...



 Basic features



Item Featun

Remarks



Controller控制芯



GT911 -
Power 2.8V~3.3V -
Resolution 800*480 -
Communication 12C -
Channel 26(TX)*14(RX) -
Numder of Touch point 5point -
Numder of Touch dey - -


Mechanical Characteristics



Item Specification Unit
Screen Size 10.1 lnch
Module dimension -ref CDdrawing mm
Active area -ref CDdrawing mm
ViewingArea -ref CDdrawing mm
Cover lens -ref CDdrawing mm
Approx.Weight - g

Optical Characteristics

Ltem Specification
Transparency Viewing Area 80%
visibility Take the vertical as the benchmark, and it is not visible within the range of 30 degrees


Sensor Specification

  Item



Specification





Stacksor structure

ITO GLASS 1.1 mm
OCA1 0.125
OCA2
COVER LENS 0.25
Sensor Dimension OD Size Ref CD DRAWING



Eletronic Specification



Ltem Symdol Min Typ Max unit Remarks
Operating Temperature Top -10 20 60 -
Storge Temperature Tst -20 - 70 -
ESD ESD air requirement 6 KV atmosphere
ESD contact requirement 4 KV Contact





Remards:if the module exceeds the adsolute maximum ratings,if may de de damaged permanently.ln addition,if the module operated with the adsolute maximum ratings for a long time their reliadility may decline.





Why Choose us:



1.Our company established in 2011, and have a long-term cooperation with many well-known company

2.We have a professional r&d team and technical support

3.We have a large number of spot inventory and we can ship delivery asap after payment

4.We are direct agent of these brands,ordering process simple and delivery time short

5.All screen ship from our company has long warranty and we have enough technical support can provide

after-sales service



FAQ



Q1. How can I trust your product quality?

A:

--Our Raw materials are all ROHS compliant .

--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.

--Our products are 100% Visual and Function test before shipments.

Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.

Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…

--Our experience and proficiency make the qualification rate always being 99.7% or above.



Q2. Which sizes of LCDs and Touch Panels do you provide?

A:

--Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”, 1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”, 4.3”, 5”, 5.6”, 6.86”.

--Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”,14.1",15.6",17",21.5",23



Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.





Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.



Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.



Q7. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.



Q8.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require any product to be returned to us, the shipping cost will be fully paid by us.



Q9. Do you have any shipping account and can you quote favorable shipping cost?

A: Yes, we have been working with DHL, Fedex more than 11 years, our shipping accounts were granted discount as much as 85% off . Please feel free to ask our sales no matter it is sample or formal order shipment.



PRECAUTIONS



1.HANDLING



1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.

1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.

1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.

1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.



2.STORAGE



2.1. Keep in a sealed polyethylene bag.

2.2. Keep in a dark place.

2.3. Keep in temperature between 0°C and 35°C.

NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.



3.SAFETY



If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.



4.LIMITED WARRANTY



Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.



4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS



4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :

- Broken LCD glass.

- Circuit modified in any way, including addition of components.

4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
