|Place of Origin:||china|
|Minimum Order Quantity:||200pcs|
|Price:||USD 13-15/ PCS|
|Interface:||24-Bit RGB||Connect Type:||Connector|
|Color Depth:||16.7M||Technology Type:||A-Si|
|Pixel Pitch (mm):||0.0642.5(W ) X 0.1790(L)||Pixel Configuration:||R.G.B. Vertical Stripe|
|Display Mode:||Normally White, Transmissive||Viewing Direction:||6:00 O’clock|

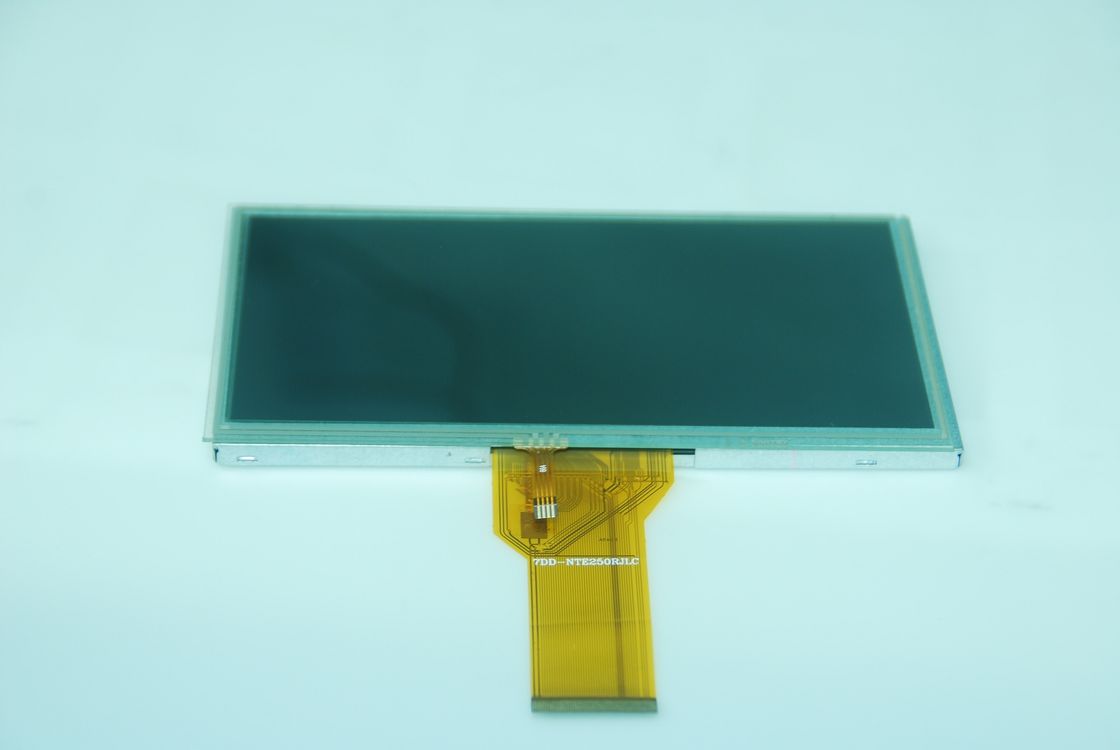

7" 350cd/m2 TFT Resistive Touch Screen,
7" 350cd/m2 touch panel module,
800*480 pixel touch panel module
7.0 inch TFT LCD Screen with Resolution 800*480 TFT Display Module 50pin RGB Interface
The YT070B001 is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal white. This TFT-LCD Cell has a 7.0 inch diagonally measured active area with WVGA resolutions (800 horizontal by 480 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M colors.
|3||Resolution||800x (RGB) x 480||pixel||-|
|4||Display Mode||Normally White||-||-|
|5||Display Number of Colors||262K/16M||-||Note|
|9||Module Size||164.9(W) ×100( L) ×3.4(T)||mm||Note|
|10||Active Area||154.08( W) × 85.92(L)||mm||-|
|11||Pixel Pitch||0.0642.5(W ) x 0.1790(L)||mm||-|
|14||CTP Driver IC||-||-||-|
|15||Driver IC RAM Size||RAMLess||bit||-|
|17||Light Source||27LEDs White||-||-|
Q1. How can I trust your product quality?
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
Founded in 2011, Shenzhen Yada Xingye Technology Co., Ltd. is a high-tech private enterprise specializing in R & D, production and sales of LCD, LCM, TFT color LCD, touch screen and industrial serial port screen. And can provide a complete set of display screen and display scheme (PCBA).
It has a variety of standard and differentiated LCD module (LCM), LCD and TFT color display products. Make LCD and LCM with various specifications and technical requirements according to customer requirements. The products are widely used in instruments, smart phones, tablet computers, POS machines, medical equipment, car machines, intelligent robots, smart home, intelligent wearable products, UAVs, VR / AR eyes, military products and other fields. The products strive to achieve high quality, micro power consumption, fast delivery, reasonable price and timely technical support. With a number of well-known enterprises at home and abroad to carry out extensive cooperation, products have won wide market application and recognition.
The company attaches great importance to product quality and strictly implements IOS9001 and RoHS management. Stable quality, professional technical support and timely service are the commitment of ADIA to customers. Today, the TFT market is more and more widely used. With the consistent persistence, ADIA works hard to create a professional and well-known manufacturer of TFT display screen industry together with customers and suppliers.
