|Place of Origin:||china|
|Minimum Order Quantity:||1pcs|
|Price:||USD 3-3.5/ PCS|
|Interface:||8080 Mcu||Color Depth:||262K|
|Pixel Pitch (um):||153 X 153||Pixel Arrangement:||Vertical Stripe|
|Display Mode:||Normally White, Transmissive||Viewing Direction (Grey-scale Inversion Direction):||12:00 O’clock|
|Structure Type:||COG+FPC+BL||Backlight Type:||WHITE LED|
8080 MCU Interface tft display panel,
2.4" ST7789 IC Sunlight Readable TFT,
2.4" ST7789 IC surface capacitive touch screen

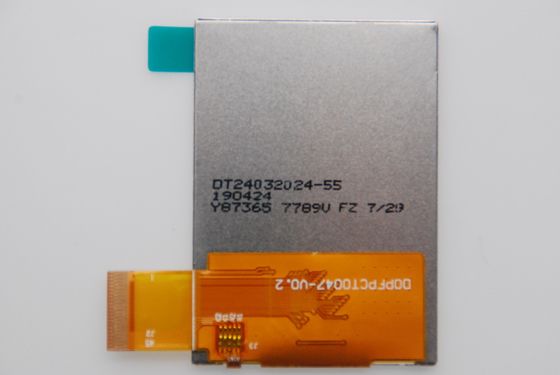

2.4 inch TFT Display Module ST7789 Driver IC with 8080MCU Interface 37pin
The T24QLT001 is is a TFT Liquid Crystal Display ODF cell. The ODF cell has been designed by ADIA, and manufactured by ADIA under the agreement of Customer.
|1||LCD Size||2.4 diagonal||inch||-|
|2||Panel Type||T N||-||-|
|3||Resolution||240x (RGB) x 320||pixel||-|
|4||Display Mode||Transmissive, Normally White||-||-|
|5||Display Number of Colors||262K||-||Note|
|9||Module Size||42.72(W) ×60.26( L) ×3.25(T)||mm||Note|
|10||Active Area||36.72( W) × 48.96(L)||mm||-|
|11||Pixel Pitch||0.153(W ) x 0.153(L)||mm||-|
(SELECT CHANNEL: G1~G320;S1~S720)
|14||Driver IC RAM Size||240 x24 x320||bit||-|
|15||Light Source||4LEDs White||-||-|
Q1. How can I trust your product quality?
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we’ve been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
1.1.Polarizer Cleaning, Petroleum ether (or N-hexane) is recommended for cleaning the front/rear polarizers and reflectors, acetone, toluene and ethanol are not allowed to avoid damaging the surface.
1.2. Body grounding, must wear Anti-ESD wrist strap while pick up LCDs.
1.3. FPC Soldering, less than 300℃/3S, solder must be grounding on grounding bench.
1.4. If use electric Screwdriver to do assembly, screwdriver must be grounding.
2.1. Keep in a sealed polyethylene bag.
2.2. Keep in a dark place.
2.3. Keep in temperature between 0°C and 35°C.
NOT allowed at 70°C for more than 160 Hours, or at -20°C for more than 48 Hrs.
If liquid crystal leak out of a damaged glass cell, DO NOT put it in your mouth or touch eyes, if the liquid crystal touch your skin or clothes, please wash it off immediately using soap and water.
Unless otherwise agreed between ADIA and customer, ADIA will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with ADIA LCD acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects over specs must be returned to ADIA within 30 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of ADIA limited to repair and/or replacement on the terms set forth above. ADIA shall not be responsible for any subsequent or consequential events.
4.1RETURNING LCM UNDER WARRANTY – TERMS AND CONDITIONS
4.1.No warranty can be granted if the precautions stated above have been disregarded. The typical examples of violations are :
- Broken LCD glass.
- Circuit modified in any way, including addition of components.
4.2.Module repairs will be invoiced to the customer upon mutual agreement. Modules must be returned with sufficient description of the failures or defects. Any connectors or cable installed by the customer must be removed completely without damaging the PCB’s eyelet, conductors and terminals.
