|Place of Origin:||china|
|Minimum Order Quantity:||1pcs|
|Price:||USD 40-45/ PCS|
|Size:||8.0 Inch(Diagonal)||Resolution:||1024 X 3(RGB) X 768|
|Color Depth:||16.7M||Driver Element:||A-Si TFT Active Matrix|
|Pixel Pitch (mm):||0.0575(W) X 0.1656(H)||Color Arrangement:||R.G.B. Vertical Stripe|
|Display Mode:||Normally Black, Transmissive||View Direction(Gray Inversion):||Free|
40PIN 8.0 inch hmi touch screen,
1024x768 lvds tft display,
40PIN 8 inch tft display

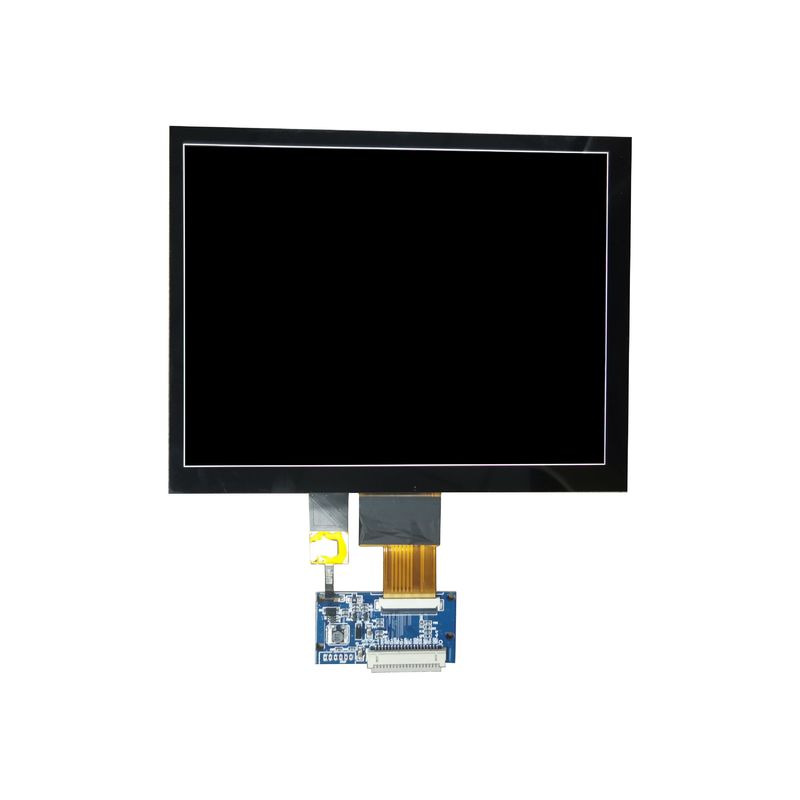

8.0 inch IPS TFT module 40PIN LVDS tft display 1024x768 high resolution screen led backlight panel
The HE080IA-01D is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal white. This TFT-LCD Cell has a 8.0 inch diagonally measured active area with resolutions (1024 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M colors.
|1||LCD Size||8 inch diagonal||inch||-|
|3||Resolution||1024x 3(RGB) x 768||pixel||-|
|4||Display Mode||Normally Black,Transmissive||-||-|
|5||Display Number of Colors||16.7M/262K||-||Note|
|6||Viewing Direction||All O’ Clock||-||-|
|9||Module Size||176.64(W) x 99.36(H)mm||mm||Note|
|10||Active Area||162.05( W) × 121.54(L)||mm||-|
|11||Pixel Pitch||0.0575(W) x 0.1656(H)||mm||-|
|13||Backlight power consumption||3.35W (Typ.)||-||-|
|14||CTP Driver IC||FT542600||-||-|
|15||Driver IC RAM Size||RAMLess||bit||-|
|16||Panel power consumption||0.392 W(Typ)||-|
|17||Light Source||LEDs White||-||-|
