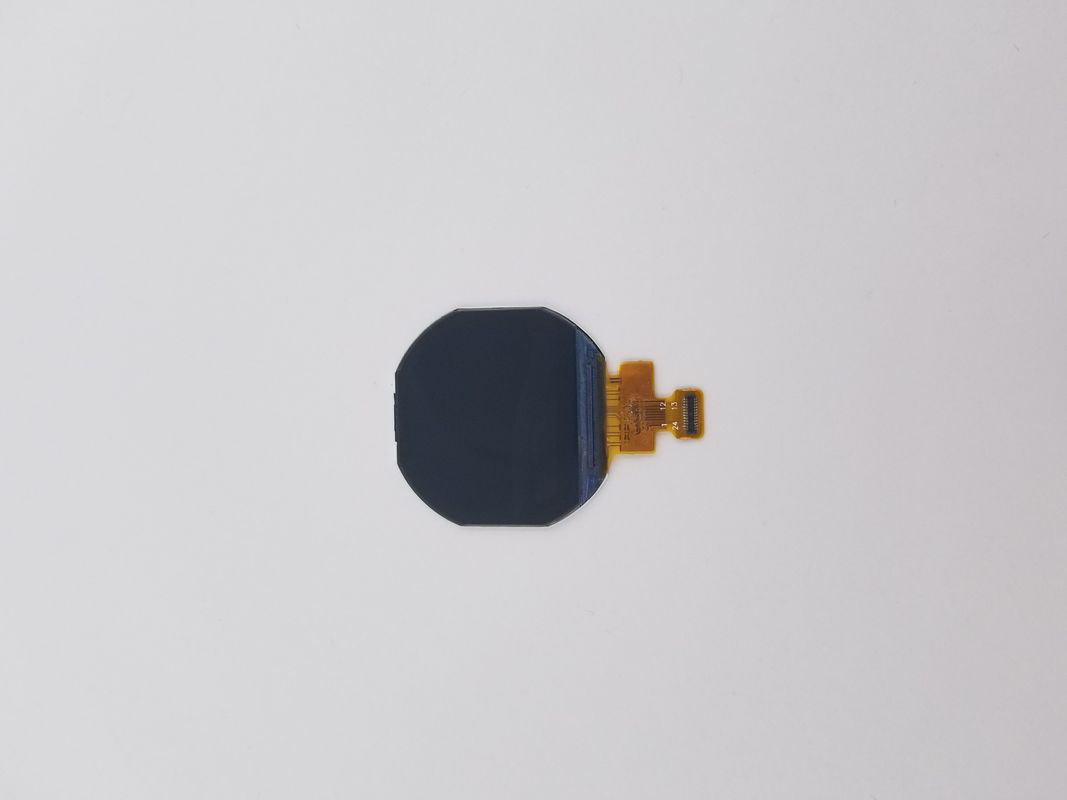

St7789V Chip 230cd/M2 1.22 Inch AMOLED Display Module

Product Details

Place of Origin: china

Brand Name: BOE

Certification: RoHS

Model Number: QT122B2401

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: USD 5.5-6.5/ PCS

Packaging Details: 50cm*50cm*60cm

Delivery Time: 20-25

Supply Ability: 1kk/m

Get Best Price
Contact Now
Specifications
Highlight:

230cd/m2 1.22 inch amoled display module

,

St7789V Chip amoled display module

,

230cd/m2 ips lcd touchscreen

Size:
1.22 Inch
Display Mode:
Normally Black
Resolution:
240*204
Active Area:
30.96(W) X 26.32(L)
Viewing Angle:
All O'clock
Brightness:
230 Cd/m2
Colors:
262K
Interface:
3-SPI
Size:
1.22 Inch
Display Mode:
Normally Black
Resolution:
240*204
Active Area:
30.96(W) X 26.32(L)
Viewing Angle:
All O'clock
Brightness:
230 Cd/m2
Colors:
262K
Interface:
3-SPI
Description
St7789V Chip 230cd/M2 1.22 Inch AMOLED Display Module

1.22 inch 240*204 TFT Screen Display Module St7789V Chip Customized tft Display​



      The STR-YT122BC01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices.It is a transmissive type display operating in the normal black. This TFT-LCD has a 1.22 inch diagonally measured active area with 240 horizontal by 204 vertical pixel array.Each pixel is divided into Red,Green,Blue dots which are arranged in vertical stripe and this panel an display 262K colors.



Features


1.0.2T Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant



Application



Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc…



General Specifications



NO. Item Specification Unit Remark
1 LCD Size 1.22inch inch -
2 Panel Type a-Si TFT active matrix - -
3 Number of Pixel 240x 3(RGB) x 204 pixel -
4 Display Mode Normally Black,Transmissive mode - -
5 Display Number of Colors 65k or 262k Color - Note
6 Viewing Direction(Human Eye) U/D/L/R free viewing direction - -
7 Contrast Ratio 800(min) - -
8 Luminance 230(TYP) cd/m2 Note
9 Module Size 33.66(W ) x 33.02(L) x 1.42(T) mm Note
10 Active Area 30.96(W) x 26.32(L) mm -
11 Pixel Pitch 0.043(W ) x 0.129(L) mm -
12 Color Gamut 70%(typ) g -
13 Driver IC ST7789V - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 2LEDs White - -
16 Interface 3-SPI - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -






Outline Dimension (unit: mm)
