3.5" 4 Wire Resistive Touch Screen , ILI9488 Capacitive TFT Touch Screen
Product Details:
Place of Origin: china
Brand Name: adia
Model Number: YT035HT001
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 6.5USD
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Supply Ability: 10KK/M
Contact Now
Detailed Product Description
Touch Type: Finger Touch Screen Size: 3.5"
Touch Screen: Touch/Infrared/Capacitive/Resistive Touch Screen(4/5 Wire),Resistive Touch Screen Resolution: 320x480
Brightness: 300cd/m2 Driver IC: ILI9488
High Light:

3.5" 4 wire resistive touch screen

,

ILI9488 4 wire resistive touch screen

,

ILI9488 capacitive tft touch screen

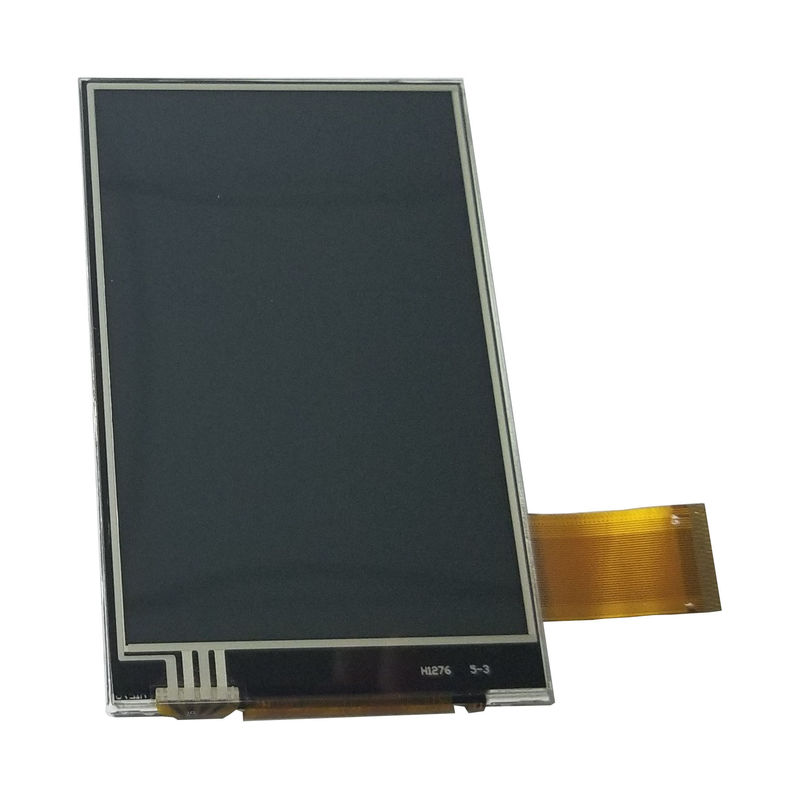

    YT035HT001 Display model 3.5" is a color active matrix thin film transistor (TFT) liquid crystal display without polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode.



NO. Item Specification Unit Remark
1 LCD Size 3.5 inch -
2 Panel Type TFT Transmissive - -
3 Resolution 320x (RGB) x 480 pixel -
4 Display Mode Normally White - -
5 Display Number of Colors 262K - Note
6 Viewing Direction 12' clock - -
7 Contrast Ratio 300(min) - -
8 Luminance 300(TYP) cd/m2 Note
9 Module Size 54.50(W) ×83.00( L) ×2.2(T) mm Note
10 Active Area 48.96( W) × 73.44(L) mm -
11 Pixel Pitch 0.073(W ) x 0.219(L) mm -
12 Weight - g -
13 Driver IC ILI9488 - -
14 Driver IC RAM Size RAMLess bit -
15 Light Source 6LEDs White - -
16 Interface 1L-MIPI - -
17 Operating Temperature -20~70 ºC -
18 Storage Temperature -30~80 ºC -
